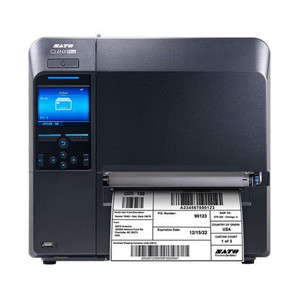

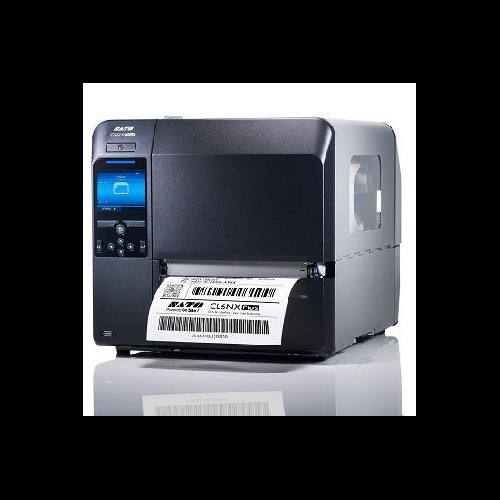

SATO CL6NX Plus 203dpi UHF RFID Industrial Thermal Transfer Printer
The SATO WWCLPAC01-WAR CL6NX Plus is a high-performance industrial thermal transfer printer engineered for enterprise-level RFID label production and encoding. Built with a rugged die-cast aluminum frame and corrosion-resistant metal housing, this printer combines 203 dpi print resolution with integrated UHF RFID (860-960 MHz) EPC C1G2 encoding capabilities, making it ideal for supply chain visibility, asset tracking, and item-level inventory management applications.
Key Features
- 203 dpi resolution at 14 ips for crisp barcode and text output
- UHF RFID encoding (860-960 MHz) with SATO RF Analyze auto-optimization
- 4.09" maximum print width; supports 4.09" to 6.59" media widths
- 3.5" full-color LCD touchscreen for intuitive operation
- Dual CPU/Dual OS architecture for enhanced processing power
- Tool-free printhead and platen roller replacement
- 2 GB Flash memory, 256 MB SDRAM, 100 MB user storage
- Triple connectivity: Ethernet, Wi-Fi, and USB 2.0
- Media roll capacity up to 8.6" outer diameter
- Ribbon capacity up to 1,968 ft (600 m)
Technical Highlights
The CL6NX Plus delivers enterprise-grade performance with flexible media handling supporting rolls from 4.09" to 6.59" in width across standard 3" cores. The integrated RFID module features SATO RF Analyze technology, which automatically optimizes antenna settings across different inlay types for reliable encoding without manual adjustment. Memory resources include 2 GB Flash for firmware and 100 MB user-accessible storage for custom fonts and label forms.
Connectivity options include Ethernet, Wi-Fi, and USB 2.0, enabling seamless integration into networked production environments. The printer operates across AC 100-240V (50/60Hz) with an operating temperature range of 41°F to 104°F, suitable for standard warehouse and manufacturing conditions. At 33 lbs with compact footprint dimensions of 10.66" x 17.99" x 12.63", the unit fits efficiently into tight production spaces.
Applications
- UHF RFID tag encoding and verification for asset tracking
- Smart label production for supply chain visibility
- Manufacturing line RFID-enabled item tracking
- Automated inventory management and warehouse operations
- Serialized labeling for product authentication
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SATO CL6NX Plus represents a mature, purpose-built solution for organizations requiring integrated thermal printing and RFID encoding in a single device. The dual CPU/dual OS architecture and SATO RF Analyze auto-optimization eliminate the technical complexity often associated with RFID systems, making deployment faster and reducing integration overhead. Organizations choosing this printer benefit from tool-free maintenance design, which directly reduces operational downtime—a critical factor in high-volume production environments.
The 14 ips print speed, combined with 203 dpi resolution, positions this as a mid-to-high-volume labeling solution rather than an entry-level device. For supply chain operations requiring simultaneous barcode printing and UHF RFID encoding with minimal configuration effort, this printer delivers reliable performance across diverse inlay types and media specifications.
