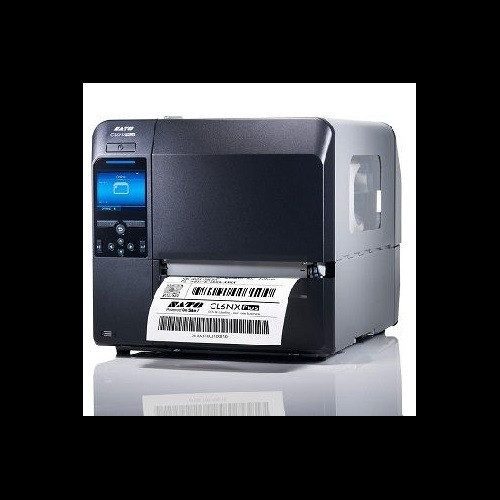

SATO CL6NX Plus 305dpi UHF RFID Industrial Printer

SATO CL6NX Plus 305dpi UHF RFID Industrial Thermal Transfer Printer

The SATO WWCLPBA01-WAR is a professional-grade industrial thermal transfer printer engineered for high-volume RFID label production and enterprise asset tracking. Combining 305 dpi resolution with integrated UHF RFID encoding capabilities (860-960 MHz EPC C1G2), this printer delivers reliable barcode, text, and RFID tag output for demanding supply chain and manufacturing environments. The robust die-cast aluminum frame with corrosion-resistant housing ensures durability in warehouse and factory settings.

Key Features

• 305 dpi resolution with 14 ips print speed for sharp, high-quality output
• Integrated UHF RFID encoding with SATO RF Analyze auto-optimization for antenna tuning
• 4.09" maximum print width; supports 4.09" to 6.59" media widths on 3" cores
• 2 GB Flash and 256 MB SDRAM with 100 MB user storage for forms, fonts, and templates
• 3.5" Full-Color LCD Touchscreen for intuitive configuration and status monitoring
• Tool-free printhead and platen roller replacement for minimal maintenance downtime
• Media roll capacity up to 8.6" outer diameter; ribbon support to 1,968 ft (600 m)
• Multiple connectivity: Ethernet, Wi-Fi, and USB 2.0 for flexible network integration
• Direct Thermal and Thermal Transfer print methods in single device

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 305 dpi
• Print Speed: 14 inches per second
• Media Range: 4.09" to 6.59" width on 3" cores
• Maximum Roll Diameter: 8.6"
• Maximum Ribbon Length: 1,968 ft (600 m)
• Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage
• Display: 3.5" Full-Color LCD Touchscreen
• RFID: UHF (860-960 MHz) EPC C1G2 with RF Analyze auto-optimization
• Connectivity: Ethernet, Wi-Fi, USB
• Power: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F (5°C to 40°C)
• Dimensions: 10.66" x 17.99" x 12.63"
• Weight: 33 lbs (15 kg)

Applications

• UHF RFID tag encoding and verification for asset tracking and inventory management
• Smart label production for supply chain visibility and logistics optimization
• Manufacturing RFID-enabled item-level tracking for work-in-process and finished goods
• Healthcare and pharmaceutical serialization compliance labeling
• Warehouse and distribution center label production
• Retail and consumer goods product labeling with RFID capability

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The CL6NX Plus represents a mature, production-proven platform for organizations requiring integrated barcode and RFID encoding in a single device. The 305 dpi resolution at 14 ips balances quality and throughput for mixed-use label environments. SATO's RF Analyze feature addresses a common integration challenge: automatic antenna tuning eliminates manual optimization across different RFID inlay types, reducing commissioning time and encoding errors.

The touchscreen interface and tool-free printhead access reduce operator training requirements and shift-change downtime. For enterprises deploying item-level tracking or complex supply chain solutions, the onboard 2 GB storage and dual connectivity (Ethernet + Wi-Fi) enable decentralized printing without constant network dependency. The robust aluminum frame and corrosion-resistant housing suit harsh warehouse or manufacturing floors.

Organizations with mature print server infrastructure will appreciate the standard USB and Ethernet options; those prioritizing mobility benefit from native Wi-Fi. Thermal Transfer capability ensures compatibility with specialty label stocks (synthetic, coated, high-adhesion materials) common in regulated industries.
