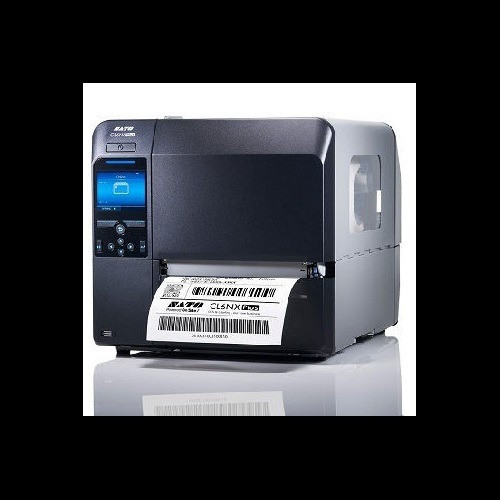

SATO CL6NX Plus 305dpi UHF RFID Industrial Thermal Transfer Printer
The SATO WWCLPBA01-NAR is a enterprise-grade industrial thermal transfer printer designed for high-volume RFID label production and smart label applications. Combining 305 dpi print resolution with integrated UHF RFID encoding (860-960 MHz, EPC C1G2), this printer delivers reliable barcode, text, and RFID tag production in demanding manufacturing and logistics environments.
Key Features
- 305 dpi print resolution at 14 ips for crisp, scannable labels and high-density barcodes
- Integrated UHF RFID encoding (860-960 MHz) with EPC C1G2 standard compliance
- SATO RF Analyze auto-optimization for consistent antenna performance across inlay types
- 4.09" maximum print width accommodating standard industrial label formats
- 3.5" Full-Color LCD Touchscreen for intuitive configuration and job management
- Die-cast aluminum frame with corrosion-resistant metal housing for industrial durability

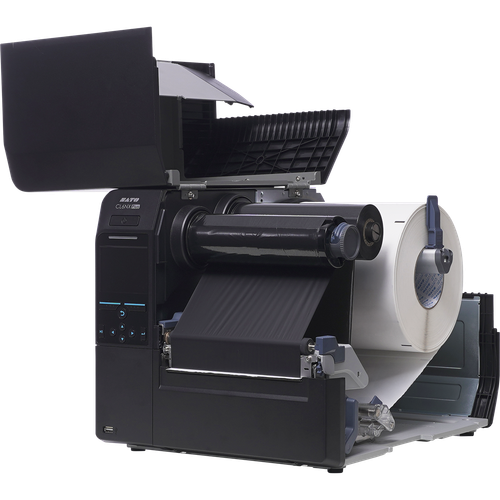

- Tool-free printhead and platen roller replacement to minimize maintenance downtime
- 2 GB Flash, 256 MB SDRAM with 100 MB user storage for forms, fonts, and label templates
Technical Specifications
Print & Media Handling: Direct thermal or thermal transfer operation at 14 inches per second. Supports media roll widths from 4.09" to 6.59" with maximum roll diameter of 8.6". Ribbon capacity up to 1,968 feet. 203 dpi and 305 dpi resolution options available.
Memory & Storage: 2 GB Flash memory, 256 MB SDRAM, and 100 MB user-accessible storage enable storage of multiple label designs and custom fonts without requiring external servers.
Connectivity: Ethernet, Wi-Fi, and USB interfaces provide flexible network integration and direct computer connection for enterprise label management systems and MES platforms.
Physical & Environmental: Weighs 33 lbs with dimensions of 10.66" x 17.99" x 12.63". Operates reliably in temperatures from 41°F to 104°F. Universal AC power input (100-240V, 50/60Hz) supports global deployment.
Applications
- UHF RFID tag encoding and verification for asset tracking and inventory management
- Smart label production for supply chain visibility and traceability
- Item-level RFID tracking in manufacturing and distribution operations
- Automated inventory management and warehouse logistics
- Healthcare, apparel, and high-value asset serialization
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CL6NX Plus stands out in the industrial RFID printer segment through its SATO RF Analyze technology, which automatically calibrates antenna settings to match specific inlay types and environmental conditions. This reduces manual tuning and improves encode reliability across production batches. The 305 dpi resolution paired with 14 ips print speed balances label quality and throughput for mid-to-high volume operations.
The corrosion-resistant aluminum housing and tool-free maintenance design are critical for cleanroom, food processing, and pharmaceutical facilities where downtime directly impacts production schedules. Multi-interface connectivity (Ethernet, Wi-Fi, USB) integrates seamlessly into existing ERP and label management systems, making this printer well-suited for enterprises standardizing on SATO platforms.
