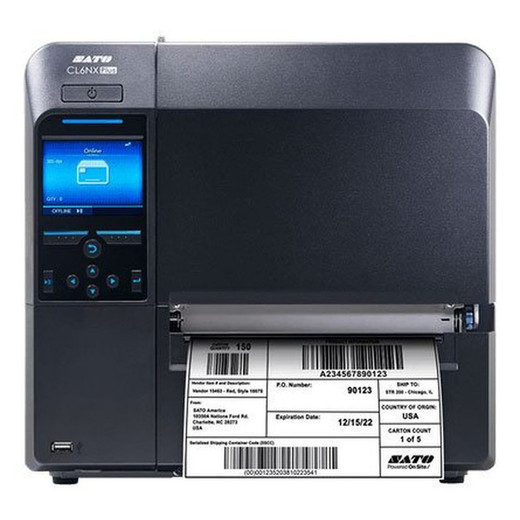

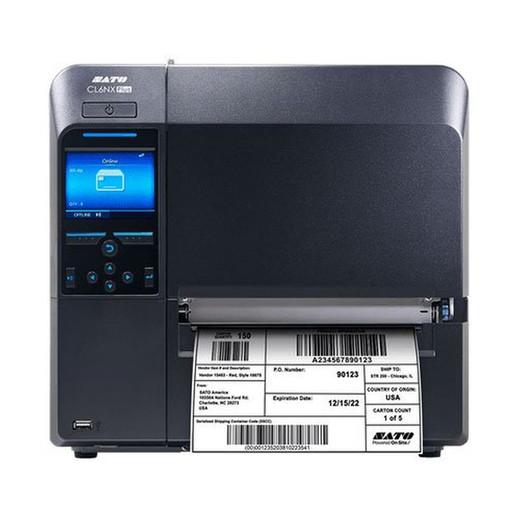

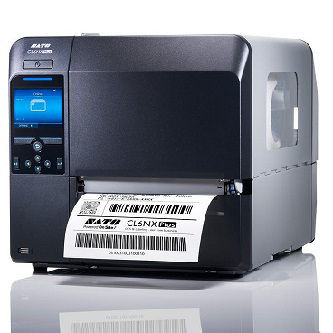

SATO CL6NX Plus 203dpi Industrial Thermal Transfer Printer – WWCLPA201-NAR

The SATO WWCLPA201-NAR is a robust industrial-grade thermal transfer printer designed for high-volume enterprise labeling environments. Featuring 203 dpi resolution at 14 inches per second print speed, this CL6NX Plus series printer delivers sharp, reliable barcode and text output for demanding logistics, manufacturing, and warehouse operations. The dual-mode printing capability—supporting both direct thermal and thermal transfer methods—provides maximum flexibility for diverse label media requirements.

Key Features

203 dpi print resolution for crisp barcodes and clear text output

14 ips print speed for high-throughput label production

4.09" maximum print width accommodates standard 4" to 6.59" media widths

Direct thermal and thermal transfer dual-mode printing

3.5" full-color LCD touchscreen for intuitive operation and configuration

2 GB Flash and 256 MB SDRAM with 100 MB user storage for forms and fonts

Tool-free printhead and platen roller replacement for minimal maintenance downtime

Supports media rolls up to 8.6" outer diameter and ribbons to 1,968 ft (600 m)

Multiple connectivity: Ethernet, Wi-Fi, and USB 2.0

Dual CPU/dual OS architecture for enhanced reliability

Technical Specifications

Print Method: Direct Thermal / Thermal Transfer

Resolution: 203 dpi

Print Speed: 14 ips

Maximum Print Width: 4.09"

Media Width Range: 4.09" to 6.59"

Maximum Media Roll Diameter: 8.6"

Maximum Ribbon Length: 1,968 ft (600 m)

Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage

Display: 3.5" full-color LCD touchscreen

Connectivity: Ethernet, Wi-Fi, USB 2.0

Dimensions: 10.66" L × 17.99" W × 12.63" H

Weight: 33 lbs (15 kg)

Power Input: AC 100-240V, 50/60Hz

Operating Temperature: 41°F to 104°F (5°C to 40°C)

Typical Applications

High-volume shipping and logistics label printing

Manufacturing part identification and product tracking

Warehouse inventory management and routing labels

Compliance and regulatory labeling

Healthcare and pharmaceutical labeling

Retail and e-commerce label production

Eden Phillips

The SATO CL6NX Plus WWCLPA201-NAR represents a solid mid-range choice for organizations requiring dependable industrial label printing without premium-tier complexity. The 203 dpi resolution is industry standard for barcode applications, and 14 ips throughput supports moderate to high-volume operations. The dual thermal modes provide genuine operational flexibility—direct thermal suits pressure-sensitive labels for temporary applications, while thermal transfer enables durable, long-life labels with ribbon media.

The 3.5" touchscreen and tool-free maintenance components reduce operator training burden and scheduled downtime. Wide media support (4.09" to 6.59") and substantial ribbon capacity (600 m) minimize changeovers. The combination of Ethernet, Wi-Fi, and USB connectivity suits both networked enterprise deployments and standalone configurations.

Die-cast aluminum construction and corrosion-resistant housing deliver longevity in challenging industrial environments. This printer is well-suited for logistics hubs, manufacturing floors, and distribution centers where reliability and ease of maintenance are priorities.
