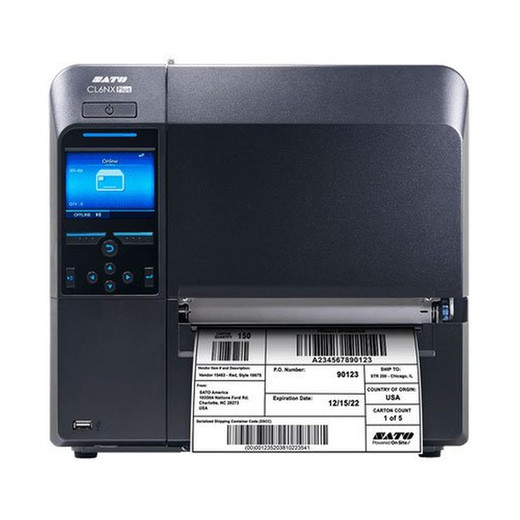

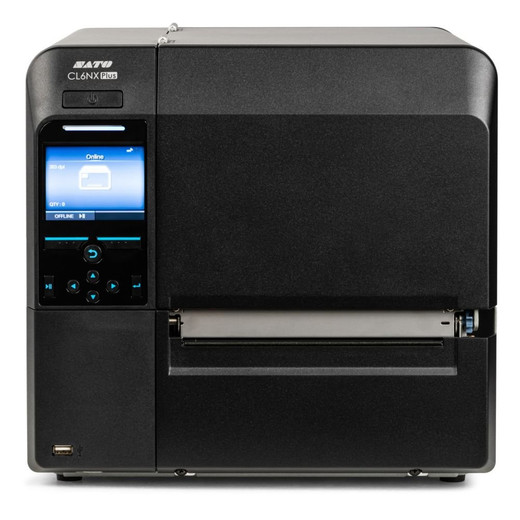

SATO CL6NX Plus 305dpi Industrial Thermal Printer

SATO CL6NX Plus 305dpi Industrial Thermal Transfer Printer – WWCLPB201-NAR

The SATO CL6NX Plus (WWCLPB201-NAR) is a robust industrial thermal transfer printer engineered for high-volume enterprise labeling applications. Built with a die-cast aluminum frame and corrosion-resistant metal housing, this 305 dpi printer delivers professional-grade barcode and text output at 14 inches per second. With dual-mode printing capability (direct thermal and thermal transfer), flexible media handling up to 6.59" width, and an intuitive 3.5" full-color LCD touchscreen, the CL6NX Plus is purpose-built for demanding logistics, manufacturing, and warehouse environments where reliability and speed are critical.

Key Features

• 305 dpi resolution for sharp, scannable barcodes and high-quality text
• 14 ips print speed for high-throughput label production
• Direct thermal and thermal transfer printing modes for media flexibility
• 3.5" full-color LCD touchscreen for intuitive operation and configuration
• Tool-free printhead and platen roller replacement to minimize downtime
• 2 GB Flash and 256 MB SDRAM with 100 MB user storage for fonts and forms
• Supports media rolls up to 8.6" diameter and ribbons up to 1,968 ft (600 m)
• Wide media width range: 4.09" to 6.59"
• Multiple connectivity options: Ethernet, Wi-Fi, and USB
• Compact footprint: 10.66" x 17.99" x 12.63" (33 lbs)

Technical Specifications

• Resolution: 305 dpi
• Print Speed: 14 inches per second
• Maximum Print Width: 4.09"
• Media Width Range: 4.09" to 6.59"
• Maximum Ribbon Length: 1,968 ft (600 m)
• Maximum Media Diameter: 8.6"
• Memory: 2 GB Flash, 256 MB SDRAM
• User Storage: 100 MB
• Display: 3.5" Full-Color LCD Touchscreen
• Connectivity: Ethernet, Wi-Fi, USB
• Print Modes: Direct Thermal / Thermal Transfer
• Operating Temperature: 41°F to 104°F (5°C to 40°C)
• Power Input: AC 100-240V, 50/60Hz
• Dimensions: 10.66" x 17.99" x 12.63"
• Weight: 33 lbs (15 kg)

Typical Applications

• High-volume shipping and logistics labeling
• Manufacturing identification and asset tracking
• Warehouse inventory management and routing
• Compliance and regulatory labeling
• Healthcare and pharmaceutical labeling
• Retail and point-of-sale label production

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

Ted Perry

The SATO CL6NX Plus stands out in the industrial printer market for its combination of speed, resolution, and operational simplicity. The 305 dpi output ensures compliance with GS1 and other demanding barcode standards, while 14 ips throughput supports high-volume production environments. The dual-mode printing capability eliminates the need for separate devices—direct thermal is ideal for cost-sensitive shipping labels, while thermal transfer enables premium labels with extended shelf life and resistance to fading or damage.

The tool-free maintenance design directly addresses total cost of ownership by reducing technician callouts and production stoppages. Memory allocation—2 GB Flash with 100 MB user storage—provides sufficient capacity for complex form libraries and font sets without requiring external storage management. Ethernet and Wi-Fi connectivity integrate seamlessly into modern enterprise networks, and the responsive LCD touchscreen significantly reduces the learning curve for operators.

This printer is particularly well-suited to enterprises seeking reliability and ease-of-use without premium pricing.
