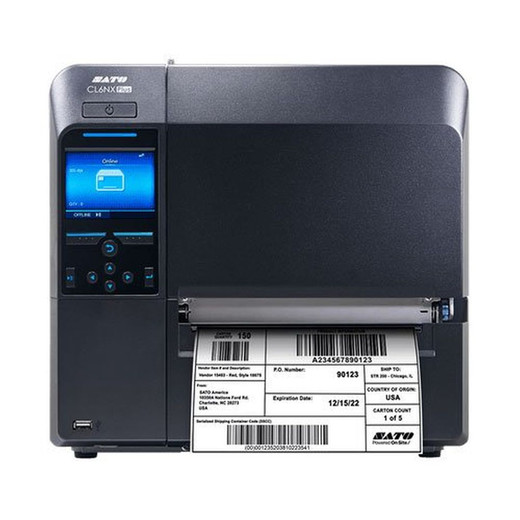

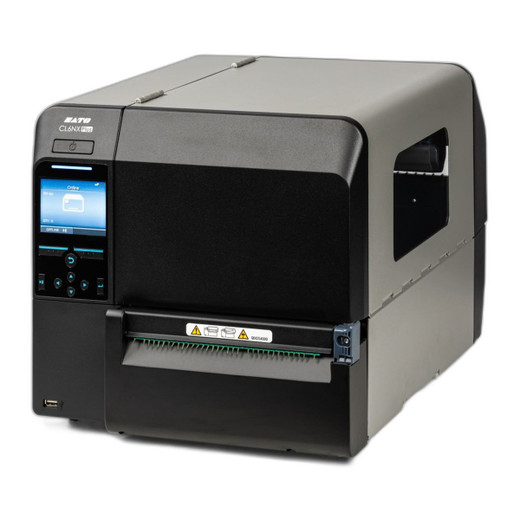

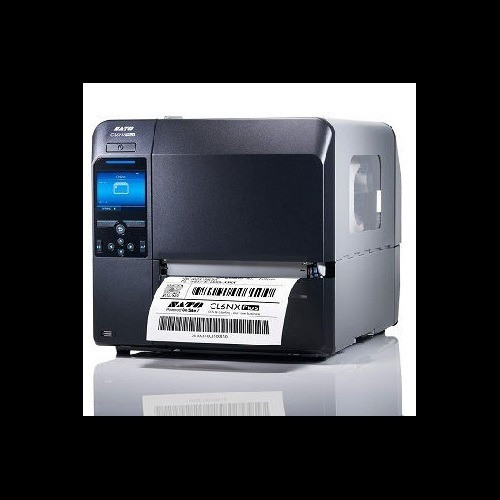

SATO CL6NX Plus 305dpi Industrial Thermal Printer

SATO CL6NX Plus 305dpi Industrial Thermal Transfer Printer – WWCLPB101-NAR

The SATO WWCLPB101-NAR is a professional-grade industrial thermal transfer printer engineered for high-volume enterprise labeling operations. Built on the proven CL6NX Plus platform, this printer combines 305 dpi resolution with dual-mode printing capability (direct thermal and thermal transfer) to deliver crisp barcodes, text, and graphics across diverse label applications. With a maximum print width of 6.59" and print speeds up to 14 ips, the WWCLPB101-NAR is purpose-built for demanding manufacturing, logistics, and warehouse environments requiring reliability and precision.

Key Features

• 305 dpi resolution for superior barcode and text clarity
• 14 ips print speed for high-throughput label production
• Dual thermal mode support: direct thermal and thermal transfer
• 3.5" full-color LCD touchscreen with intuitive controls
• 2 GB Flash and 256 MB SDRAM with 100 MB user storage for forms and fonts
• Tool-free printhead and platen roller replacement to minimize downtime
• Robust die-cast aluminum frame with corrosion-resistant metal housing
• Media width range: 4.09" to 6.59" with support for rolls up to 8.6" outer diameter
• Ribbon capacity up to 1,968 ft for extended print runs without reloading

Connectivity & Interfaces

Multiple connectivity options—Ethernet, Wi-Fi, and USB—enable seamless integration into existing networked label printing environments. Standard interfaces support rapid deployment across facilities without extensive IT infrastructure modifications.

Technical Specifications

• Resolution: 305 dpi
• Print Speed: 14 ips
• Max Print Width: 4.09" (adjustable media accommodation 4.09" to 6.59")
• Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage
• Display: 3.5" Full-Color LCD Touchscreen
• Connectivity: Ethernet, Wi-Fi, USB
• Media Support: Rolls up to 8.6" diameter; ribbons up to 1,968 ft
• Operating Temperature: 5°C to 40°C (41°F to 104°F)
• Power Input: AC 100-240V, 50/60Hz
• Dimensions: 10.66" x 17.99" x 12.63"
• Weight: 15 kg (33 lbs)

Ideal Applications

• High-volume shipping and logistics label production
• Manufacturing part identification and traceability labeling
• Warehouse inventory management and item routing
• Compliance and regulatory labeling (pharmaceuticals, chemicals, food safety)
• Return merchandise authorization (RMA) and asset tracking labels

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO CL6NX Plus WWCLPB101-NAR represents a mature, field-proven platform for mission-critical label printing. The combination of 305 dpi resolution and 14 ips throughput strikes an effective balance between output quality and production speed—critical for operations processing hundreds of labels daily. Tool-free consumable replacement (printhead, platen) directly reduces maintenance labor costs and operational downtime, a significant advantage in 24/7 warehouse and manufacturing environments.

The dual thermal capability provides flexibility to switch between direct thermal (lower per-label cost for short-term labels) and thermal transfer (durability for long-term asset tracking) without hardware changes. Memory allocation (2 GB Flash + 256 MB SDRAM) is sufficient for standard enterprise form libraries and font sets. For operations requiring extended ribbon runs or non-standard media widths, media handling (8.6" roll diameter, 1,968 ft ribbon capacity) accommodates full business days without interruption.

Multi-protocol connectivity supports both legacy Ethernet-based print servers and modern Wi-Fi deployments. The 3.5" touchscreen simplifies operator training and reduces support tickets. This printer is optimal for established enterprises with mature label design workflows and consistent, high-volume output demands.
