SATO CL6NX Plus 305dpi Industrial Thermal Printer - WWCLPB001-WAR

SATO CL6NX Plus 305dpi Industrial Thermal Printer - WWCLPB001-WAR

The SATO WWCLPB001-WAR is a professional-grade industrial label printer engineered for high-volume enterprise environments. Combining 305 dpi resolution with dual thermal printing modes—direct thermal and thermal transfer—this printer delivers sharp, durable barcode and text output suitable for demanding logistics, manufacturing, and compliance applications. Built with a die-cast aluminum frame and corrosion-resistant metal housing, the CL6NX Plus is designed for reliability in harsh warehouse and production settings.

Key Features

• 305 dpi resolution at 14 ips print speed for fast, high-quality output
• Dual print modes: Direct Thermal and Thermal Transfer for media flexibility
• Maximum print width of 6.59" with media roll diameter up to 8.6"
• Supports ribbon lengths up to 1,968 ft for extended operation
• 3.5" Full-Color LCD Touchscreen for intuitive control and job management
• 2 GB Flash memory and 256 MB SDRAM with 100 MB user storage for fonts and forms

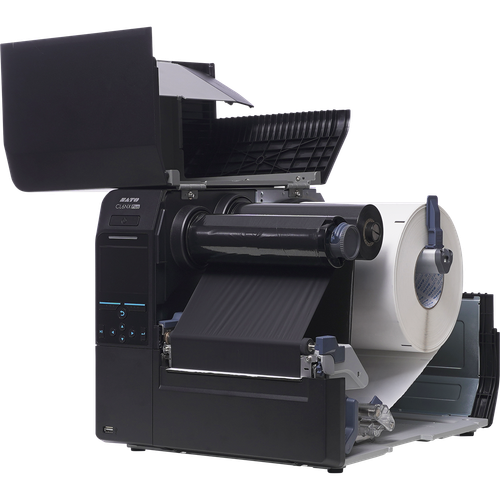

• Tool-free printhead and platen roller replacement minimizes maintenance downtime
• Multiple connectivity: USB, Ethernet, and Wi-Fi for seamless network integration
• Wide operating temperature range (5°C to 40°C) for diverse environments

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 305 dpi
• Print Speed: 14 ips
• Maximum Print Width: 6.59"
• Media Width: 4.09" to 6.59"
• Memory: 2 GB Flash, 256 MB SDRAM
• User Storage: 100 MB
• Connectivity: USB, Ethernet, Wi-Fi
• Display: 3.5" Full-Color LCD Touchscreen
• Dimensions: 10.66" x 17.99" x 12.63"
• Weight: 33 lbs
• Power: AC 100-240V, 50/60Hz

Typical Applications

• High-volume shipping and logistics labeling
• Manufacturing identification and product tracking
• Warehouse inventory management and order routing
• Compliance and regulatory labeling (GHS, pharmaceutical, food & beverage)
• Healthcare and laboratory specimen labeling
• Retail and point-of-sale label generation

Karl Wilson

Perspective based on aggregated and affiliated engineering team experience.

The SATO CL6NX Plus WWCLPB001-WAR stands out in the mid-to-high-volume industrial printer category. Its 305 dpi resolution and 14 ips speed strike a practical balance between output quality and throughput—suitable for detailed barcodes and variable data without sacrificing production velocity. The dual-mode printing architecture is particularly valuable for organizations transitioning between direct thermal consumables and thermal transfer ribbons, eliminating the need for separate equipment investments.

The tool-free maintenance design directly reduces total cost of ownership by minimizing technician involvement and printer downtime. For IT administrators, the multi-protocol connectivity (USB, Ethernet, Wi-Fi) simplifies network deployment in both wired and wireless environments. The 3.5" touchscreen display is a genuine usability upgrade over legacy LED panel interfaces, enabling faster job setup and error diagnostics at the device itself. Memory allocation—2 GB Flash with 256 MB SDRAM—provides sufficient capacity for complex label templates, fonts, and graphics libraries without requiring external font servers in most deployments. The compact footprint and 33 lb weight make it suitable for desktop or shelf placement in space-constrained facilities.
