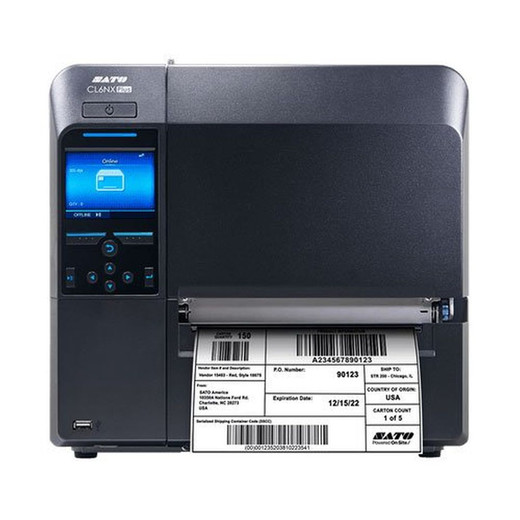

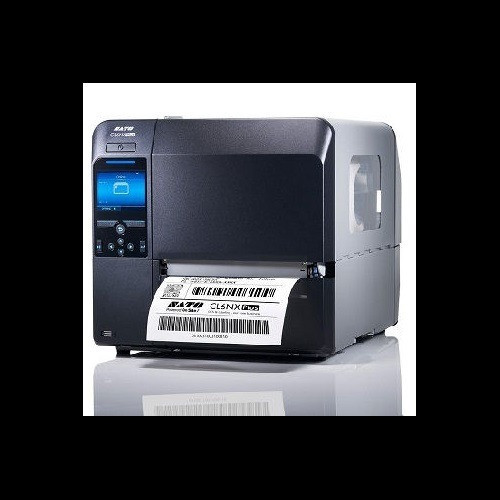

SATO CL6NX Plus 203dpi Industrial Thermal Printer

SATO CL6NX Plus 203dpi Industrial Thermal Transfer Printer – WWCLPA201-WAN

The SATO WWCLPA201-WAN is a robust industrial-grade thermal printer engineered for high-volume enterprise label production. Combining 203 dpi resolution with dual printing modes—direct thermal and thermal transfer—this CL6NX Plus model delivers consistent, professional-quality output for demanding logistics, manufacturing, and warehouse environments. With a 3.5" full-color LCD touchscreen, intuitive controls, and tool-free maintenance, the WWCLPA201-WAN minimizes operational friction while maximizing productivity and uptime.

Key Features

• 203 dpi resolution at 14 ips print speed for sharp barcodes, QR codes, and text
• Dual-mode printing: Direct thermal and thermal transfer for maximum media flexibility
• Print width up to 4.09" with media roll support from 4.09" to 6.59" width
• Large media capacity: supports rolls up to 8.6" outer diameter and ribbons up to 1,968 ft (600 m)
• 3.5" full-color LCD touchscreen with intuitive interface
• Tool-free printhead and platen roller replacement for quick maintenance
• Multi-connectivity: Ethernet, Wi-Fi, and USB for seamless network and direct integration
• Industrial-grade construction: die-cast aluminum frame with corrosion-resistant metal housing
• Wide operating temperature range: 41°F to 104°F (5°C to 40°C)

Technical Specifications

• Print Resolution: 203 dpi
• Print Speed: 14 inches per second (ips)
• Max Print Width: 4.09"
• Media Width Range: 4.09" to 6.59"
• Max Media Roll Diameter: 8.6"
• Max Ribbon Length: 1,968 ft (600 m)
• Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage
• Display: 3.5" full-color LCD touchscreen
• Connectivity: Ethernet, Wi-Fi, USB
• Dimensions: 10.66" W × 17.99" D × 12.63" H
• Weight: 33 lbs (15 kg)
• Power: AC 100–240V, 50/60Hz
• Housing: Die-cast aluminum frame with corrosion-resistant metal housing

Typical Applications

• High-volume shipping and logistics labeling
• Manufacturing identification and asset tracking
• Warehouse inventory management and order routing
• Compliance and regulatory labeling
• Healthcare and pharmaceutical labeling

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO CL6NX Plus represents a mature, reliable choice for enterprises requiring dependable thermal printing at production scale. Its dual-mode architecture—supporting both direct thermal (for label stock without ribbon) and thermal transfer (for versatile substrates and longevity)—eliminates the need for multiple devices, reducing capital expenditure and maintenance overhead. The 14 ips speed and 203 dpi resolution strike a practical balance between throughput and label fidelity, suitable for barcode-heavy environments where label legibility directly impacts supply chain accuracy.

The Wi-Fi and Ethernet connectivity, combined with 2 GB onboard storage, enable flexible deployment in networked warehouse and manufacturing facilities. Tool-free consumables replacement—a hallmark of SATO's design philosophy—translates directly into lower downtime and reduced training burden on operations staff. The corrosion-resistant housing and wide operating temperature tolerance make it suitable for both climate-controlled offices and light warehouse environments. For organizations managing mid-to-high-volume label production without requiring 4" or wider print widths, this model offers strong durability and cost-effectiveness.
