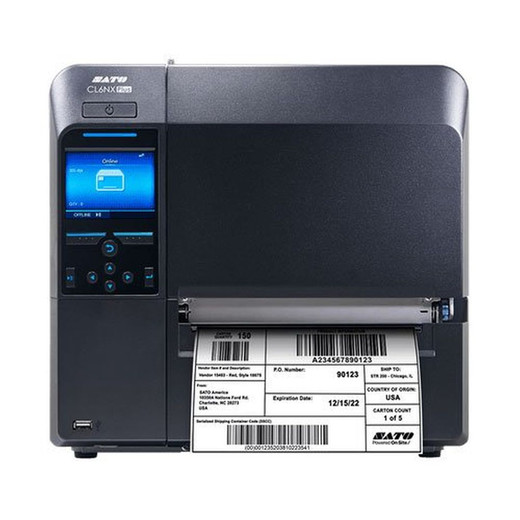

Sato WWCLPA001-WAN 203dpi Industrial Thermal Printer
The Sato WWCLPA001-WAN is a workhorse mid-to-high-volume thermal printer built for warehouses, manufacturing floors, and logistics operations where label availability and barcode scan reliability directly affect operational cost and compliance audits. This is a direct-thermal and thermal-transfer capable printer that trades flashy features for pragmatic engineering — field-replaceable components, straightforward troubleshooting, and enough onboard memory to run offline when your network hiccups.
Key Features
- 203 dpi resolution: Standard for industrial barcode printing and GS1 compliance. At this resolution, 1D and 2D codes print sharp enough to scan reliably on the first pass — critical when a misread delays shipment or triggers a regulatory compliance hold.
- 14 inches-per-second (ips) print speed: Delivers roughly 500+ labels per hour depending on label size and template complexity. Fast enough that the printer won't become a bottleneck on a moderate-speed conveyor or in a pick-and-pack operation.
- Dual thermal modes (direct and thermal transfer): Direct thermal prints cost-effective short-shelf-life labels (shipping labels, warehouse routing tags). Thermal transfer prints durable multi-year labels (pharmaceutical compliance, asset tags). Switch modes without hardware swaps — saves you from maintaining two separate printers.
- 3.5-inch full-color touchscreen: Eliminates the antiquated menu-driven interfaces of older industrial printers. Setup, job monitoring, and error diagnostics are self-explanatory — reduces training overhead and speeds troubleshooting when something goes wrong at 2 AM.
- Tool-free printhead and platen roller replacement: In continuous-duty operations, maintenance downtime equals lost throughput. User-replaceable components mean you don't wait for a service technician — swap parts in under five minutes and get back to printing.
- 4.09-inch maximum print width; media width 4.09–6.59 inches: Flexible enough for standard 4x6 shipping labels, small product labels, and custom-width formats. Supports rolls up to 8.6-inch outer diameter and ribbon lengths to 600 meters, extending changeover intervals during high-volume runs.
- 2 GB Flash memory and 256 MB SDRAM; 100 MB user storage: Store hundreds of label templates and fonts directly on the printer. Reduces dependency on a networked label-design system and enables offline printing if your network connection drops during a critical shipment window.
- Ethernet, Wi-Fi, and USB 2.0 connectivity: Ethernet is the recommended connection for mission-critical labeling — lowest latency, no dropout. Wi-Fi suits distributed printing across multiple departments without network infrastructure investment. USB 2.0 works for smaller operations or single-workstation setups.
- Operating temperature 41°F to 104°F (5°C to 40°C): Handles unheated warehouses and freezer environments without performance drift. Printhead and ribbon remain stable across seasonal temperature swings common in logistics facilities.
- AC 100–240V universal power input (50/60 Hz): Single power cable works across North America, Europe, and Asia. No voltage converter needed for multi-region deployments or international warehouses.
- Compact footprint 10.66 × 17.99 × 12.63 inches; 33 lb weight: Fits benchtop production lines without major facility redesign. Light enough for secure wall mounting in space-constrained shipping areas.
Integration and Connectivity
The WWCLPA001-WAN supports Ethernet and Wi-Fi remote job submission, enabling operators to push print jobs from any connected workstation without walking to the printer. Dual CPU/dual OS architecture ensures stable, scalable performance in mission-critical labeling environments. Standard 3-inch media cores and ribbon lengths up to 600 meters reduce changeover frequency during overnight production runs. USB 2.0 support provides direct connection for smaller operations that don't require network distribution, and the printer handles both standard and custom label widths within its 4.09–6.59-inch media range.
Typical Applications
- High-volume shipping and logistics label printing (4x6 GS1 labels, carrier-compliant barcodes)
- Manufacturing and assembly line product labeling (part numbers, serial codes, quality certifications)
- Pharmaceutical and compliance labeling (durable thermal-transfer labels for traceability)
- Warehouse routing and bin labeling (direct-thermal short-term identification)
- Returns and RMA label generation (barcode-to-database integration)
Frequently Asked Questions
Q: What is the maximum label length the WWCLPA001-WAN can print?
A: Maximum print width is 4.09 inches. Label length depends on your roll diameter (up to 8.6 inches) and template setup — there is no fixed limit on label length itself, only on print speed as label length increases.
Q: Can the WWCLPA001-WAN print directly on cardboard or plastic without thermal paper?
A: No. Direct thermal mode requires specially coated thermal paper or label stock. Thermal transfer mode requires compatible ribbon and label material — not bare cardboard or untreated plastic.
Q: Does the WWCLPA001-WAN support network printing from multiple workstations simultaneously?
A: Yes. Ethernet and Wi-Fi connectivity allow multiple devices on your network to submit print jobs to the same printer. Queue management and job priority are handled by your print server or label software.
Q: Is the WWCLPA001-WAN suitable for outdoor or wet environments?
A: No. Operating temperature range is 41°F to 104°F, and there is no IP rating for water or dust ingress. This printer is designed for indoor industrial facilities (warehouses, manufacturing floors, climate-controlled logistics centers).
Q: What ribbon types and sizes are compatible with the WWCLPA001-WAN?
A: Standard wax, resin, or wax-resin thermal transfer ribbons up to 600 meters in length and compatible with Sato's ribbon cartridge system. Verify specific ribbon part numbers with Sato documentation or your ribbon supplier for your label material type.
Q: Can I replace the printhead myself, or do I need a service technician?
A: The printhead and platen roller are tool-free, user-replaceable components. No technician or special tools required — replacement takes roughly five minutes and is documented in the user manual.
I spec the Sato WWCLPA001-WAN into mid-to-high-volume shipping operations where barcode scan reliability and printer uptime directly impact compliance and throughput. At 203 dpi and 14 ips, this printer doesn't sacrifice speed for code quality—both are table stakes in logistics. The dual thermal capability means you don't maintain two printers, and the tool-free printhead replacement cuts service calls that would otherwise eat into your SLA commitments.
Technical Highlights:
- 14 ips print speed at 203 dpi: Delivers approximately 500+ labels per hour. Fast enough for conveyor-fed operations without becoming the bottleneck, but realistic about throughput — don't expect sub-second label times for ultra-high-speed lines.
- 2 GB Flash + 256 MB SDRAM + 100 MB user storage: Stores hundreds of label templates on the printer itself. Critical if your network goes down during a production window — you can print from cached templates without waiting for IT to restore connectivity.
- Dual thermal (direct and transfer): Direct thermal for cost-sensitive, short-shelf-life labels (shipping); thermal transfer for durable compliance labels (pharmaceuticals, asset tags). Eliminates the capital cost of a second printer or the operational complexity of swapping hardware.
- Ethernet, Wi-Fi, USB 2.0: Ethernet is your mission-critical path (lowest latency, most stable); Wi-Fi works for distributed printing across departments without infrastructure investment. Choose based on your network topology, not on what "sounds better."
Deployment Considerations:
- Temperature stability 41°F to 104°F: Handles unheated warehouses and freezer zones without printhead drift. If you're printing in climate-controlled facilities, this is a non-issue. If you're in a cold-storage environment, this capability is essential — most consumer-grade printers fail below 50°F.
- Tool-free maintenance: Printhead and platen roller are user-replaceable. In a 24/7 operation, this cuts your mean-time-to-repair from hours (waiting for a technician) to minutes (swap the part yourself). Plan for spare parts inventory if you run continuous shifts.
- Media width flexibility (4.09–6.59 inches): Standard 4x6 shipping labels fit comfortably. If you need custom widths (e.g., 4.5-inch custom labels), this printer handles them without hardware modification. Ribbon lengths to 600 meters extend changeover intervals.
- Watch: No IP rating for outdoor or wet environments: Keep this printer indoors, in climate-controlled facilities. It's not rated for direct rain, dust, or spray. If you need label printing in a dock area exposed to weather, consider an enclosed kiosk or an industrial outdoor printer in the Sato lineup.
The WWCLPA001-WAN is purpose-built for warehouse, manufacturing, and logistics labeling where uptime and barcode quality are non-negotiable. Spec this when you need predictable speed, dual thermal flexibility, and a printer that doesn't require a service technician every time maintenance is due. It's not the smallest or fanciest — it's the one that runs your shipping operation without surprises.
