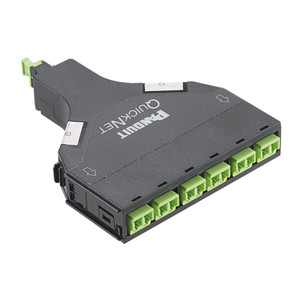

Panduit FQ9N-12-LAAS QuickNet 12-Fiber OS2 LC Duplex to MPO-12 Cassette
The Panduit FQ9N-12-LAAS is a 12-fiber single-mode cassette that converts high-density MPO-12 trunk connections to six LC duplex ports, enabling rapid deployment of OS2 fiber infrastructure in data centers, enterprise server rooms, and telecom facilities. Engineered with APC (Angled Physical Contact) connectors and standard insertion loss performance, this QuickNet cassette delivers the low back-reflection characteristics required for 10G, 40G, 100G, and beyond applications. The polycarbonate housing provides mechanical durability in rack-mount fiber distribution frames, while the 6-port LC configuration maximizes density without sacrificing patch-cord accessibility.
Key Features
- 12-fiber OS2 single-mode architecture supports long-distance, high-bandwidth applications up to 100G+ over multi-kilometer spans
- APC (8-degree angled) connectors on both MPO-12 and LC duplex sides minimize back reflection below -60 dB for low-noise optical performance
- MPO-12 male input accepts standard 12-fiber trunk cables for high-density backbone connections
- Six LC duplex output ports provide structured breakout to individual switch, server, and storage connections
- Standard insertion loss specification ensures repeatable optical budget compliance across installations
- Polycarbonate cassette housing withstands repeated insertion cycles in high-traffic rack environments
- QuickNet SFQ platform enables plug-and-play deployment with pre-terminated trunk and patch cable systems
- Black housing color matches standard rack and panel aesthetics for professional installations
Single-mode OS2 fiber is the backbone of modern data center and enterprise networks, supporting transmission distances from 300 meters to tens of kilometers while accommodating current 10GBASE-LR and 40GBASE-LR4 protocols as well as future 100G and 400G migrations. The FQ9N-12-LAAS cassette is factory-terminated and tested to ensure each of the 12 fiber strands meets insertion loss and return loss specifications, eliminating the field-termination labor and variability that plague on-site fusion splicing. APC connector geometry is critical in these applications: the 8-degree endface angle directs reflected light into the fiber cladding rather than back toward the source, protecting sensitive transceivers and maintaining signal integrity in DWDM (Dense Wavelength Division Multiplexing) and coherent optical systems where even small amounts of back-reflection can degrade bit error rates.
The cassette’s MPO-12 male input is designed to mate with female MPO connectors on pre-terminated trunk cables, a configuration that has become the de facto standard for structured fiber deployments. This allows a single 12-fiber trunk to be pulled from a main distribution area (MDA) to an equipment distribution area (EDA) or horizontal distribution area (HDA), then broken out into six discrete LC duplex connections at the destination. Each LC port is independently accessible, so you can patch servers, storage arrays, and switch uplinks without disturbing adjacent connections. The 6-port layout fits efficiently into 1U and 2U fiber enclosures, and the QuickNet system’s modular design means you can populate a panel with multiple cassettes to scale from 12 fibers to 144 or more in a single rack unit. Panduit’s factory-controlled manufacturing process ensures consistent fiber routing inside the cassette, preventing the crossed pairs and polarity errors that often occur with field-assembled breakout solutions.
Deploy the FQ9N-12-LAAS in spine-leaf data center architectures where MPO trunks run vertically between floors or horizontally between racks, then break out to individual top-of-rack switches via LC duplex patch cords. It is equally effective in enterprise campus networks where building-to-building OS2 trunks terminate in telecom rooms, and in colocation facilities where high-density fiber distribution is required to serve multiple tenants from a limited number of rack units. The cassette’s polycarbonate housing includes integrated strain relief and secure latching to prevent accidental dislodging during maintenance, and the black finish integrates with Panduit’s broader QuickNet fiber management ecosystem, including panels, cable managers, and trunk assemblies. Installers benefit from the plug-and-play nature of the system: no fusion splicer, no epoxy, no polishing—just insert the cassette into a compatible enclosure, plug in the MPO trunk, and patch to equipment.
Panduit’s QuickNet platform is backed by a comprehensive fiber characterization process in which every cassette is insertion-loss tested across all 12 fibers before shipment, with test results traceable to NIST standards. This level of factory QA ensures that when you deploy the FQ9N-12-LAAS, you are working within known optical budgets and can reliably predict link performance without expensive on-site OTDR testing. The APC connector endfaces are inspected under magnification to verify core-to-core alignment and ensure the absence of scratches, contamination, or endface defects that would increase loss or cause intermittent connectivity. For data center operators managing thousands of fiber connections, this repeatability translates directly to lower troubleshooting costs, faster turn-up times, and fewer service-affecting failures during upgrades or reconfigurations.
