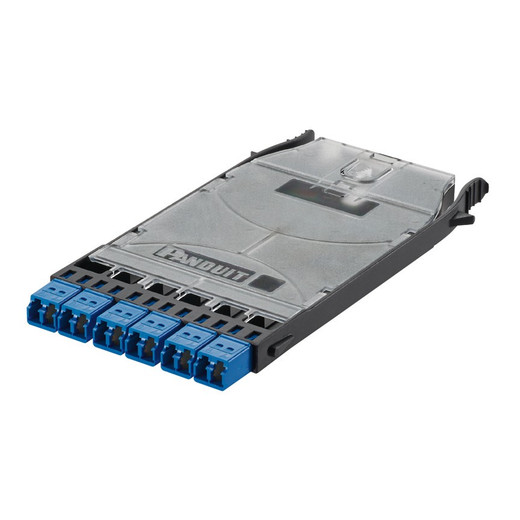

Panduit FHS9N-12-10N HD Flex Fiber Optic Cassette

The Panduit FHS9N-12-10N is a 12-fiber singlemode cassette engineered for high-density fiber distribution in datacenter and enterprise network environments. Built on the HD Flex platform, this cassette provides six LC Duplex ports with OS2-grade singlemode fiber and zirconia ceramic ferrules, delivering the port density and optical performance required for MTP/MPO trunk breakout applications. Designed for installations where rack space is constrained and fiber counts are climbing, the cassette fits Panduit's FAP (Fiber Adapter Panel) enclosures and supports structured cabling migrations from legacy direct-termination systems to modular cassette-based architectures.

Key Features

• 12-fiber OS2 singlemode cassette with 6× LC Duplex ports for high-density breakout applications
• Zirconia ceramic ferrules meet FOCIS-5 and FOCIS-10 insertion loss and return loss specifications
• HD Flex cassette form factor compatible with Panduit FAP enclosures and fiber distribution frames
• Black housing with blue connector boots for instant OS2 singlemode identification in mixed-fiber environments
• 0.46" (11.7mm) height × 7.5" (190.4mm) width cassette footprint supports 144+ fiber terminations per 1U panel
• Pre-terminated factory assembly eliminates field splicing labor and reduces deployment time on trunk installations
• Complies with ISO/IEC 11801, ANSI/TIA-568-C.3, and TIA-604 FOCIS standards for enterprise structured cabling
• RoHS-compliant materials for installations subject to environmental compliance mandates

The HD Flex cassette system addresses a core datacenter problem: how to scale fiber terminations without consuming additional rack space or forcing installers into field splicing. Traditional direct-termination fiber panels require individual strand splicing at every port—time-consuming, skill-intensive, and error-prone under project deadlines. The FHS9N-12-10N cassette arrives factory-terminated with all 12 fibers pre-connectorized to six LC Duplex ports, ready to snap into a Panduit FAP enclosure. The cassette architecture lets you deploy an MTP/MPO trunk (typically 12-fiber or 24-fiber) from the network core to the distribution frame, then break out to individual LC Duplex connections at the cassette level. This modular approach cuts deployment time, reduces the risk of fiber damage during installation, and provides a clean migration path when you need to upgrade from 10G to 40G, 100G, or 400G optics—swap the cassette and trunk without rewiring the entire structured cabling plant.

OS2 singlemode fiber is the standard for datacenter and campus backbone runs exceeding 300 meters or requiring 10G+ speeds. The FHS9N-12-10N's zirconia ceramic ferrules deliver the low insertion loss (typically ≤0.25 dB) and high return loss (≥50 dB) needed to maintain signal integrity across multi-hop fiber paths and dense wavelength-division multiplexing (DWDM) systems. The cassette's 7.5-inch width and half-inch height allow six LC Duplex ports per cassette, which translates to 144 fibers per 1U when paired with a 12-cassette FAP enclosure—density that would require 3U or more with legacy LC panel systems. The black housing with blue connector boots provides instant visual confirmation of singlemode fiber in mixed-mode installations where OS2 and OM3/OM4 multimode coexist, reducing the risk of cross-mode patching errors that can kill link budgets.

Compliance with ISO/IEC 11801 and ANSI/TIA-568-C.3 ensures this cassette integrates into enterprise structured cabling designs without introducing non-standard components that could complicate future expansions or fail third-party certification audits. The TIA-604-5 (FOCIS-5) and TIA-604-10 (FOCIS-10) certifications confirm that connector geometry, endface polish, and ferrule concentricity meet the physical-layer specifications required for 10GBASE-LR, 40GBASE-LR4, and 100GBASE-LR4 optics. For integrators managing datacenter builds subject to equipment disposal regulations, the RoHS-compliant materials simplify end-of-life recycling and meet procurement requirements in jurisdictions where hazardous substance restrictions apply. The FHS9N-12-10N delivers the density, modularity, and standards compliance that structured cabling installations demand when fiber count scales beyond what legacy direct-termination systems can support.
