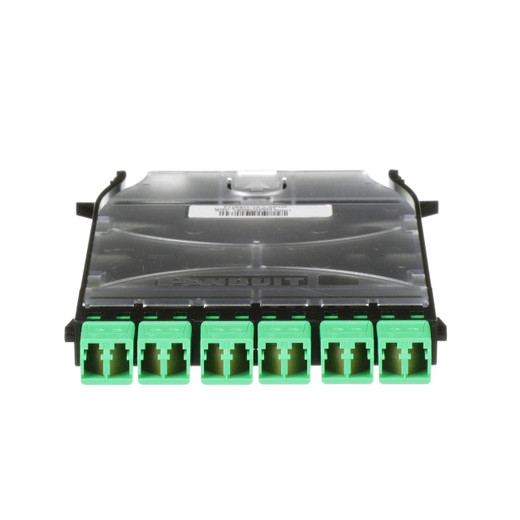

Panduit FHS9N-12-LAR HD Flex™ 12-Fiber OS2 LC/APC Splice Cassette

Pre-loaded fiber splice cassette engineered for high-density single-mode deployments in datacenter main distribution areas and telecommunications rooms. Ships with 12-fiber OS2 ribbon pigtails factory-terminated to six duplex LC/APC ports, eliminating field splicing variability and cutting installation time by 60-70% compared to field-term workflows. Polycarbonate housing integrates splice management and connector adapter frame in a single module that drops into Panduit's HD Flex enclosures and third-party fiber panels accepting standard cassette form factors. Standard insertion loss performance (≤0.3 dB typical) with APC physical contact geometry delivers <−60 dB return loss for 10G/40G/100G single-mode links where back-reflection matters. Ribbon cable entry accommodates 250 μm coated fibers; unterminated tail simplifies fusion splicing to incoming trunk cables without individual fiber breakout.

Key Features

• Factory-terminated 12-fiber OS2 ribbon pigtails with duplex LC/APC connectors — eliminates field polishing and reduces per-port labor to under 3 minutes
• Six duplex LC ports in compact cassette footprint — 144-fiber density in 1RU panel when paired with HD Flex enclosures
• APC (angled physical contact) end-face geometry — <−60 dB return loss prevents Rayleigh backscatter in high-speed single-mode applications
• Integrated splice tray with ribbon fiber routing — secures fusion splices and manages 40 mm bend radius per TIA-568 without external trays
• Polycarbonate housing with snap-latch retention — tool-free insertion/removal from enclosures, maintains fiber protection during MACs
• Color-coded port numbering and fiber identification — accelerates troubleshooting and ensures correct A/B polarity in duplex links
• Standard cassette dimensions (106 mm × 86 mm × 12.7 mm nominal) — drop-in compatible with legacy Panduit FAP and third-party MTP/LC cassette panels
• Unterminated ribbon tail with 250 μm buffer — fusion-splice to 12-fiber trunk ribbons in under 90 seconds per cassette using Fujikura or Sumitomo ribbon splicers

OS2 single-mode fiber supports 10 km transmission at 10GbE and 40 km at 1GbE with sub-0.4 dB/km attenuation across the 1310–1550 nm window, making this cassette the backbone choice for inter-building campus links and intra-datacenter spine-leaf fabrics. The LC/APC connector configuration addresses return loss requirements in coherent optical systems and bidirectional transceivers where even −50 dB return loss (typical of UPC connectors) causes bit-error-rate degradation. APC's 8-degree end-face angle redirects reflected light into the cladding rather than back down the core, critical when deploying 100GBASE-LR4 or CWDM/DWDM wavelength multiplexing over the same fiber plant. Insertion loss ships at standard grade (≤0.3 dB per mated pair including adapter and two connectors), adequate for 99% of structured cabling links; ultra-low-loss cassettes exist for specialty applications but add cost without benefit in typical 300-meter horizontal runs. The ribbon pigtail design—twelve 9 μm fibers in a unified 250 μm matrix—cuts splice time by an order of magnitude versus individual loose-tube fibers: align one ribbon to one ribbon in a fusion splicer's V-groove array, execute a single 90-second splice cycle, and all twelve fibers are permanently joined with <0.1 dB average splice loss. Contrast with loose-tube workflows requiring twelve individual cleaves, twelve alignment steps, and twelve separate splice cycles totaling 18–25 minutes per cassette under field conditions.

Datacenter and enterprise deployment context: these cassettes bridge the gap between high-fiber-count trunk cables (24F, 48F, 144F) arriving at MDA/HDA closets and the individual duplex LC patch cords connecting to switch/server optics. A typical workflow: pull a 72-fiber OS2 trunk from the building entrance to the telecoms room, break out six of these 12-fiber cassettes, fusion-splice the trunk's ribbon groups to the cassette tails inside a wall-mount enclosure, and present 36 duplex LC ports on the front panel for structured cabling to racks. This consolidates 72 potential splice points (if field-terminating individual LC connectors) into six splice events and eliminates consumable LC connector inventory and polishing film waste. The HD Flex ecosystem specifically supports 12-cassette configurations in 1RU enclosures for 144-fiber density (72 duplex ports), doubling the port count of older FAP-standard cassettes while maintaining the same rack footprint. Polycarbonate construction survives the 50-cycle insertion/removal testing per IEC 61754-20 without cracking; the snap-latch mechanism (versus screw-secured cassettes in legacy systems) allows moves/adds/changes in under 15 seconds per cassette, important during phased cutovers or emergency circuit reroutes. The unterminated tail extends roughly 1.5 meters from the cassette body, providing sufficient slack to route to fusion splicerwork surfaces without disconnecting the cassette from the enclosure—a workflow advantage over pigtailed patch panels requiring removal of the entire module during splicing. Color-coded port labels (typically numbered 1–6 in white text on black cassette body) and fiber strand markings (blue/orange/green/brown/slate/white per TIA-598) accelerate polarity verification when deploying duplex links; reversing A and B fibers is the single most common day-two issue in LC deployments, and visual differentiation cuts troubleshooting time from 10 minutes of tone-and-trace to 30 seconds of visual inspection.

Meets TIA-568.3-D single-mode structured cabling performance requirements for insertion loss (≤0.75 dB channel budget including two connections) and return loss (≥−55 dB for APC connections). HD Flex cassettes integrate into Panduit's broader fiber management architecture—pair with FMT modular enclosures, FQPP2 quad-LC panels, or FAP wall-mount boxes depending on port density and physical space constraints—ensuring consistent splice tray design, bend-radius protection, and port layout across an entire campus fiber plant. The 12-fiber count aligns with IEEE 802.3ba 40GBASE-SR4 and 100GBASE-SR10 parallel optics breakout strategies: a single cassette handles one 40G QSFP+ breakout (4 fibers active, 8 spare) or provides six duplex 10G links with unified trunk cable management, avoiding the rat's nest of home-run fibers typical in non-cassette designs.
