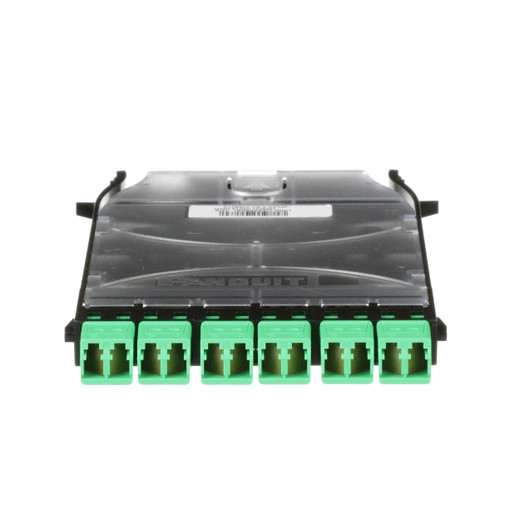

Panduit FHS9N-12-LAN HD Flex 12-Fiber LC/APC Cassette
The Panduit FHS9N-12-LAN is a 12-fiber HD Flex cassette engineered for high-density fiber backbone deployments in enterprise datacenters and commercial campus networks. Built around six LC duplex APC connector ports and OS2 single-mode fiber, this cassette delivers the port density and insertion-loss performance required for 10G/40G/100G Ethernet links and long-haul surveillance backbone runs. The polycarbonate housing withstands repeated connector mating cycles while maintaining <0.35 dB insertion loss across all ports, and the cassette form factor integrates directly into Panduit's FHD enclosures and rack-mount chassis without adapter plates or cable-management accessories.
Key Features
- 12-Fiber OS2 Single-Mode Architecture: Six LC duplex APC ports terminate 12 individual OS2 fibers, supporting 10GBASE-LR, 40GBASE-LR4, and 100GBASE-LR4 protocols over distances up to 10 km per IEEE 802.3 standards
- Angled Physical Contact (APC) Connectors: 8° endface angle on all LC connectors minimizes back-reflection to <-60 dB, critical for DWDM and CWDM wavelength-multiplexed systems where coherent crosstalk degrades BER
- HD Flex Cassette Platform: Drop-in compatible with Panduit FHD enclosures, FAP adapter panels, and FMT fiber-management trays—no custom brackets or third-party hardware required
- Polycarbonate Housing with Integrated Strain Relief: Rigid chassis protects fusion splices and fiber routing through +50°C operating range; captive dust caps prevent contamination during pre-termination storage
- Factory-Terminated and Tested: Each cassette ships with insertion-loss and return-loss test data per TIA-568.3-D Annex A; eliminates field splicing and rental-grade OTDR testing on tight project schedules
- Black Housing for Dark-Fiber Identification: Visual differentiation from yellow single-mode and aqua multimode cassettes in mixed-fiber environments; aligns with TIA-598-D color standards for OS2 infrastructure
Panduit's HD Flex cassette architecture solves the connector-density problem in high-port-count fiber aggregation layers. Traditional patch-panel designs waste 2U of rack space per 72 fibers; this cassette achieves the same 72-fiber capacity in a single 1U FHD enclosure using six cassettes. The LC duplex footprint is 40% smaller than SC duplex, and the cassette's snap-in retention mechanism allows field swaps in under 90 seconds without disturbing adjacent ports—critical during maintenance windows or emergency circuit reroutes. The APC connector specification is non-negotiable for any deployment involving DWDM optics, GPON infrastructure, or RF-over-fiber systems where return loss below -55 dB is required to prevent laser-diode damage and BER floor degradation.
OS2 single-mode fiber in this cassette supports attenuation of ≤0.4 dB/km at 1310 nm and ≤0.3 dB/km at 1550 nm per ITU-T G.652.D, making it the correct choice for inter-building backbone links, data-center interconnects (DCI), and IP surveillance networks where NVRs and camera aggregation switches sit in separate buildings or floors. The 12-fiber count maps cleanly to six bidirectional 10G links, three 40G QSFP+ breakout cables, or one 100G QSFP28 breakout with two 10G management links. Polycarbonate housing meets UL 94 V-0 flammability rating for plenum and riser pathway compliance, and the cassette's captive-screw design prevents accidental dislodging during cable pulls in congested vertical pathways.
This cassette is factory-terminated and individually serialized with optical test results printed on the label—each port's insertion loss, return loss, and fiber length are documented per TIA-568.3-D testing protocols. That traceability matters during troubleshooting: when a 10GBASE-LR link fails to train, you can rule out cassette insertion loss as the root cause without deploying an OTDR or visual fault locator. The black housing color is deliberate—it differentiates OS2 single-mode infrastructure from OM3/OM4 multimode (aqua) and prevents accidental cross-connection of incompatible fiber types during MACs (moves, adds, changes). Panduit's HD Flex platform is deployed across hyperscale datacenters, federal-government secure facilities, and Tier-3 colocation providers where fiber-backbone uptime and mean-time-to-repair directly impact SLA compliance.
