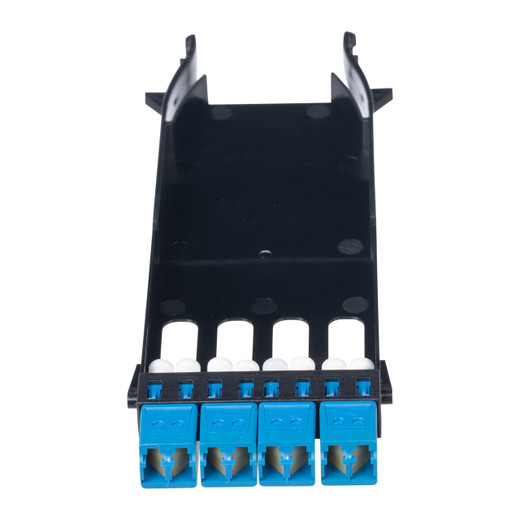

Panduit FHS9N-08-10N 8-Fiber LC Duplex OS2 Cassette

Panduit FHS9N-08-10N HD Flex 8-Fiber LC Duplex OS2 Cassette

The Panduit FHS9N-08-10N HD Flex cassette delivers field-configurable fiber connectivity for single-mode OS2 installations where reach, density, and migration flexibility matter. Built around eight LC duplex ports and engineered for Panduit's FAP (Fiber Adapter Panel) ecosystem, this cassette lets network architects customize breakout construction and patching topology without over-purchasing pre-terminated trunk assemblies. Black polycarbonate housing measures 2.61" wide by 0.46" high, fitting standard FAP enclosures and high-density patch panels used in enterprise data centers, telecom central offices, and campus distribution frames.

Key Features

• Eight LC duplex ports on OS2 single-mode fiber — supports 10G, 40G, and 100G Ethernet over extended distances up to 10 km (10GBASE-LR) or 40 km (10GBASE-ER) depending on transceiver and cable plant
• HD Flex modular design — snap-in cassette architecture allows you to change port count, connector type, or fiber grade in the field without replacing the entire enclosure or trunk cable
• FAP-compatible form factor — integrates with Panduit Fiber Adapter Panels, OptiCam high-density systems, and standard 19" rack enclosures for consistent cable management across multi-building campuses
• Black polycarbonate construction — impact-resistant housing protects internal splice trays and fusion points from vibration and dust ingress in non-climate-controlled IDF closets
• Pre-loaded with 8 fibers — reduces on-site fusion splicing labor compared to field-terminate solutions, cutting deployment time on backbone upgrades and new building turn-ups
• Low insertion loss — factory-polished LC connectors and controlled splice geometry keep typical insertion loss below 0.5 dB per mated pair, preserving link budget for long campus runs

OS2 single-mode fiber is the backbone standard for installations that need to span more than 300 meters or support future 40G/100G migration without re-cabling. The FHS9N-08-10N cassette terminates eight fibers (four duplex LC ports) inside a compact module that slides into Panduit FAP housings, letting you build exactly the port count you need today while reserving empty cassette slots for future expansion. This approach avoids the waste and rigidity of over-specified pre-terminated trunk cables — if a new building addition requires 24 more fibers next year, you add cassettes rather than abandon an undersized 12-fiber trunk. The snap-in design also simplifies MAC (moves, adds, changes): swap a damaged cassette in under five minutes without re-pulling backbone cable or re-splicing in a cramped ceiling space.

Polycarbonate housing resists impact and provides bend-radius protection for the internal splice tray, which is critical when cassettes are installed in crowded equipment racks where technicians may inadvertently press against the panel during adjacent work. The black finish reduces glare under LED rack lighting and matches standard Panduit and third-party enclosures, maintaining a clean visual appearance in client-facing server rooms. Each cassette ships with dust caps on all LC ports; leave caps in place on unused ports to prevent contamination — a single dust particle on a single-mode ferrule endface can cause 1–3 dB insertion loss and intermittent link drops that are difficult to troubleshoot.

Installation follows Panduit's FAP slide-latch mechanism: align the cassette's keyed edges with the enclosure guide rails, push until the latch clicks, and secure the retention clip. No screws or tools required for cassette insertion, though you will need a fusion splicer to terminate the cassette's pigtails to your backbone cable if you are building a custom trunk assembly. For pre-terminated deployments, Panduit offers factory-spliced trunk-to-cassette assemblies that arrive ready to rack, eliminating field splicing entirely and reducing installation time to under 30 minutes for a 96-fiber distribution frame.

The HD Flex system is designed for data centers running 10GBASE-LR or 40GBASE-LR4 over OS2 fiber, where duplex LC is the dominant connector standard and port density directly impacts rack space costs. A single 1U FAP enclosure can hold up to twelve FHS9N-08-10N cassettes (96 LC duplex ports, 192 fibers), delivering the same port count as eight traditional 1U patch panels while consuming one-eighth the vertical rack space. This density advantage is compounded in hyperscale and colocation environments where every rack unit translates to power, cooling, and lease costs — reducing panel height from 8U to 1U can save $800–$1,200 per year per rack in metro colocation facilities.

Cassette-based architectures also improve troubleshooting speed and Mean Time To Repair (MTTR) for backbone faults. When a single fiber in a traditional 12-fiber trunk fails due to a bad fusion splice or cracked ferrule, the entire trunk is often out of service until a technician can access the splice enclosure, identify the bad fiber, and re-splice. With the HD Flex cassette approach, each cassette is an independent module — a fault on cassette 3 does not take down cassettes 1, 2, 4–12. Swap the bad cassette, label it for bench repair, and restore service in under ten minutes. This modularity is especially valuable in 24/7 operations (hospitals, public safety networks, financial trading floors) where every minute of downtime carries direct revenue or safety impact.

Panduit manufactures the FHS9N-08-10N in ISO 9001-certified facilities with automated polishing and endface inspection, ensuring consistency across production lots. Each cassette undergoes insertion-loss testing at 1310 nm and 1550 nm before shipping, and ships with a test report showing actual measured loss per port. This factory verification reduces on-site acceptance testing labor — you can rack and patch with confidence that every port meets TIA-568 and IEC 61300-3-34 performance standards without running a full OTDR certification sweep.

The cassette works with any OS2-grade single-mode fiber (9/125 micron core/cladding) that meets ITU-T G.652.D specifications, including Corning SMF-28 Ultra, OFS AllWave, and Fujikura standard single-mode. Pair with Panduit LC duplex patch cords (FPCR series recommended) to maintain low insertion loss across the entire channel — mixing connector brands or using economy patch cords with non-Panduit cassettes can introduce 0.3–0.8 dB additional loss due to ferrule geometry mismatches.

Designed for integrators and network engineers managing multi-building campus backbones, data center spine-leaf fabrics, and telecom aggregation sites where OS2 fiber and LC duplex connectivity are the standard. The modular cassette approach reduces upfront material costs by 15–30% compared to fixed-count pre-terminated systems, cuts deployment labor by eliminating field fusion splicing, and provides the migration flexibility to support 40G and 100G upgrades without forklift replacements of the physical layer infrastructure.
