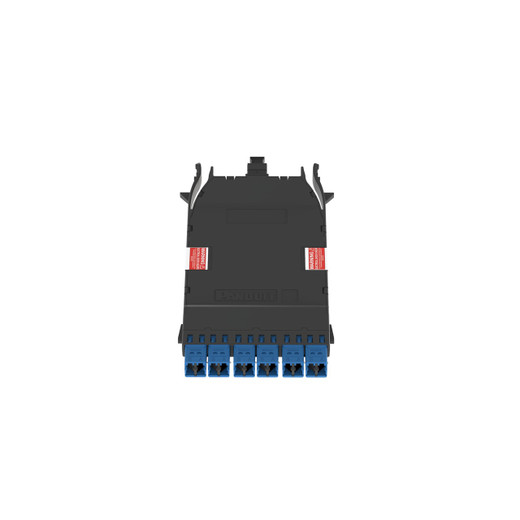

Panduit FHC9N-12-10U HD Flex™ MPO-LC Fiber Cassette

The Panduit FHC9N-12-10U HD Flex™ cassette delivers high-density single-mode fiber connectivity in a compact, rack-mountable form factor designed for datacenter and enterprise network environments. This OS2-rated cassette interfaces MPO-12 trunk connectivity to six duplex LC ports, supporting 12 fibers total with universal polarity configuration. Built for deployment in Panduit fiber enclosures and standard 19-inch racks, the FHC9N-12-10U addresses the critical need for scalable, high-port-count fiber infrastructure while maintaining easy access for MAC (Moves, Adds, Changes) operations.

Key Features

• OS2 Single-Mode Performance: Supports 9/125 µm single-mode fiber for long-haul applications up to 10 km at 10G, 40 km at 1G, with low attenuation suitable for datacenter interconnect and campus backbone deployments.
• MPO-12 to 6x Duplex LC Breakout: Male MPO-12 connector on trunk side fans out to six duplex LC ports, enabling straightforward transition from high-density MPO trunk cabling to individual LC patch connections at the equipment interface.
• Universal Polarity Method: Supports universal (Method B) polarity configuration, compatible with standard duplex LC patch cords without requiring specialty polarity-flipped cables, simplifying inventory and reducing deployment errors.
• Integrated Port Shutters: Aqua-colored duplex LC adapters feature built-in shutters that close automatically when cables are disconnected, preventing contamination ingress—the leading cause of fiber link failure in datacenter environments.
• Polycarbonate Housing: Black cassette body constructed from high-impact polycarbonate provides mechanical protection for internal fiber splices and ensures dimensional stability across operating temperature ranges.
• High-Density Rack Integration: Cassette form factor installs in Panduit FHD and FHDM enclosures, supporting up to 144 LC duplex ports per 1U enclosure for maximum fiber density in constrained rack space.

The FHC9N-12-10U cassette is engineered to bridge the gap between pre-terminated MPO trunk cabling and LC-equipped active gear—switches, servers, storage arrays, and media converters that dominate enterprise and service-provider networks. The OS2 single-mode fiber specification ensures compliance with IEEE 802.3ae (10GBASE-LR/ER), 802.3ba (40GBASE-LR4, 100GBASE-LR4), and emerging 400G standards, making this cassette suitable for multi-generation infrastructure investments. The male MPO-12 connector on the trunk side mates with female MPO connectors on pre-terminated trunk assemblies, eliminating field splicing and associated labor costs. Inside the cassette, factory-terminated and factory-tested LC connectors are fusion-spliced to the MPO pigtail with insertion loss values held to industry standards, providing predictable link budgets and simplified troubleshooting.

Universal polarity (Method B per TIA-568.3-D) is the critical design choice for installers managing mixed LC and MPO infrastructure. Unlike Method A (which requires polarity-reversing LC patch cords) or Method C (which demands MPO cable management discipline), universal polarity works with standard duplex LC patch cords in a transmit-receive pin-swapped configuration. This means your existing stock of aqua duplex LC patch cords connects directly from cassette to switch port without consulting polarity charts or stocking specialty cables. For greenfield datacenter builds and brownfield expansions alike, this translates to faster deployment, lower training overhead, and reduced risk of polarity-induced link failures during MAC operations. The aqua adapter color coding aligns with TIA-598-C standards for single-mode fiber identification, enabling at-a-glance verification during installation and maintenance.

Contamination control is non-negotiable in modern fiber deployments—FTTH studies cite contamination as the root cause in over 80% of fiber link degradation incidents. The FHC9N-12-10U addresses this with integrated shutters on every LC adapter. When a patch cord is removed, the shutter mechanism automatically closes, blocking dust, oils, and airborne particulates from settling on the ferrule endface and adapter alignment sleeve. This passive contamination barrier reduces cleaning cycles, lowers the risk of scratched ferrules during cleaning attempts, and preserves insertion loss performance over the cassette's operational life. In high-churn environments—colocation facilities, lab networks, and disaster recovery sites where cables are frequently moved—shuttered adapters are the difference between a link that stays within loss budget and one that requires costly rework.

Deployment typically follows this workflow: install Panduit FHD or FHDM high-density fiber enclosure in the rack, load cassettes into the enclosure's slide-out tray, route pre-terminated MPO trunk cables from the MDA (Main Distribution Area) or backbone to the cassette MPO ports, and patch LC duplex cords from cassette to switch or server. The 1U FHD enclosure accommodates up to 12 cassettes of this type, delivering 72 duplex LC ports (144 fibers) in a single rack unit—six times the density of traditional patch panels. For ToR (Top-of-Rack) switches in leaf-spine architectures, this density advantage reclaims rack space for revenue-generating compute and storage gear. For backbone consolidation points, it enables centralized cross-connect fields that simplify MAC workflows and provide clear demarcation between structured cabling (permanent MPO trunks) and equipment cabling (replaceable LC patch cords).

The polycarbonate cassette body is rated for operating temperatures from -40°C to +70°C, suitable for NEBS-compliant central office installations and extended-temperature datacenter cold aisles. The material's high dielectric strength and flame rating (UL 94 V-0 equivalent for similar Panduit cassettes) support deployment in overhead cable tray and plenum return-air pathways subject to NEC Article 770 and local electrical codes. The black housing with black MPO connector provides visual distinction from multi-mode (beige/aqua MPO) cassettes, reducing mix-ups during installation. Each cassette ships individually packaged with protective caps on the MPO connector and LC adapters; the carton quantity is 10 units, suited for larger datacenter builds where volume purchasing reduces per-port cost.

Single-mode OS2 fiber's 9 µm core diameter supports modal bandwidth far exceeding multi-mode alternatives, with chromatic dispersion characteristics that enable 10GBASE-LR links up to 10 km and 100GBASE-LR4 links up to 10 km without dispersion compensation. This makes the FHC9N-12-10U a future-proof choice for campus interconnects, datacenter-to-datacenter links over leased dark fiber, and intra-datacenter spine connections where distance exceeds multi-mode's 300-550 meter practical limit. The low 0.4 dB/km maximum attenuation at 1310 nm and 0.3 dB/km at 1550 nm preserves link budget for passive optical splitters in CWDM/DWDM overlay scenarios and supports emerging coherent optics deployments at 400G and beyond.

The universal polarity configuration eliminates a common pain point in MPO-to-LC migrations: cable labeling and tracking. With Method A polarity, you must ensure every duplex LC patch cord is either straight-through or crossover depending on the cassette's internal pinout, creating inventory splits and field confusion. Method C requires flipping MPO connectors on alternate trunk cables—a recipe for mis-punched documentation and troubleshooting dead-ends. Universal polarity sidesteps both issues: all duplex LC patch cords are standard (Type A per TIA-568-C.3), and all MPO trunk cables follow a single keying convention (key-up to key-down). This consistency pays dividends during after-hours MAC work, when the installer who originally deployed the infrastructure is unavailable and the on-call technician needs to add a new server connection without consulting a polarity matrix.

The HD Flex™ platform integrates with Panduit's broader Unified Physical Infrastructure (UPI) ecosystem, including Pan-Net network documentation software, SmartZone™ G5 racks, and PanZone™ cable managers. For projects subject to LEED or other sustainability certifications, Panduit cassettes are manufactured in ISO 14001-certified facilities and ship in recyclable packaging. The factory-terminated approach eliminates field waste—no scrap fiber pigtails, no epoxy consumables, no polishing film—and reduces the project's embodied carbon compared to field-splice alternatives. The 10-unit carton quantity aligns with typical row deployment scales (one carton supplies a 1U enclosure plus spares) while minimizing packaging overhead.

This cassette is purpose-built for installers who need deterministic, testable fiber infrastructure that survives the operational realities of production datacenters: frequent MAC cycles, contamination risk from airflow and human handling, and the need to scale from initial deployment to full buildout without rip-and-replace. The integrated shutters, universal polarity, and OS2 single-mode specification combine to deliver a cassette that installs quickly, operates reliably, and supports multi-generational network evolution from 1G to 100G and beyond within the same physical layer.
