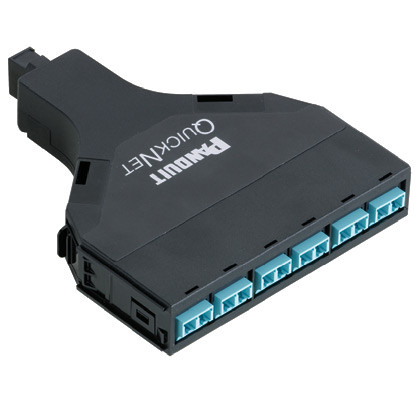

Panduit FQZN-12-10U QuickNet MPO-LC Fiber Cassette

The Panduit FQZN-12-10U is a factory-terminated 12-fiber OM4 cassette designed for high-density datacenter and enterprise network deployments. It breaks out a single 12-fiber MPO trunk connection into six duplex LC ports, enabling rapid structured cabling installations without field termination. Built for Panduit's QuickNet modular fiber system, this cassette uses universal polarity methodology to eliminate guesswork during moves, adds, and changes. Datacenter installers and network integrators deploy these cassettes in spine-leaf architectures, SAN fabrics, and 40GBASE-SR4 / 100GBASE-SR4 backbone runs where pre-tested, plug-and-play fiber distribution saves install time and reduces troubleshooting overhead.

Key Features

• 12-fiber OM4 (50/125 μm) cassette breaks single MPO-12 male trunk to 6× duplex LC ports
• Universal polarity method supports Method A, B, or C deployments without cassette swaps
• Factory-terminated and tested — eliminates field splicing, fusion, or epoxy termination labor
• Zirconia ceramic ferrules deliver low insertion loss (≤0.35 dB typical) and high return loss
• 10U form factor mounts in QuickNet enclosures, patch panels, and standard 19" rack systems
• OM4 50/125 multimode supports 40G Ethernet to 150m, 100G Ethernet to 100m per IEEE 802.3
• Black housing with clear port labeling for rapid identification in dense rack environments
• Ships in cartons of 10 cassettes for volume datacenter deployments

Panduit's QuickNet cassette architecture addresses the core challenge of high-density fiber patching: how to transition from high-fiber-count MPO trunks (typically 12, 24, or 72 fibers) down to individual duplex LC connections at the equipment interface without consuming excessive rack space or introducing field termination risk. The FQZN-12-10U accepts a standard 12-fiber MPO male connector (often called MTP, though MTP is a US Conec trademark) on the rear and presents six color-coded duplex LC adapters on the front. Each LC duplex pair corresponds to two fibers in the MPO array. The cassette's internal fanout harness is factory-built and tested to TIA-568 performance specs, meaning insertion loss, return loss, and polarity are verified before it ships — critical when a single misconfigured fiber can disable an entire 40G or 100G link.

The universal polarity design is the cassette's key deployment advantage. TIA-568 defines three polarity methods (A, B, C) to ensure transmit fibers on one end align with receive fibers on the other. Traditional cassettes required installers to stock Method A and Method B variants and track which cassette went where. Panduit's universal method uses a keyed MPO connector and internal crossover routing so the same cassette works in any polarity scheme. In practice, this means an installer can pull a pre-terminated 12-fiber MPO trunk from the MDA (main distribution area) to an EDA (equipment distribution area), plug the MPO into the cassette's rear port, and immediately patch LC jumpers from the cassette's front ports to switches, servers, or storage arrays without consulting a polarity chart or swapping cassettes. For spine-leaf datacenter topologies, where dozens of cassettes populate every rack, this eliminates the most common source of Day 1 fiber troubleshooting.

The OM4 laser-optimized multimode fiber supports 40GBASE-SR4 and 100GBASE-SR4 Ethernet over distances up to 150m and 100m respectively (per IEEE 802.3ba), making it the standard choice for intra-datacenter links. The 10U height dimension refers to the cassette's compatibility with Panduit's QuickNet modular enclosures, which mount in standard 19-inch racks and accept cassettes in vertical or horizontal orientations. Zirconia ceramic ferrules in the LC adapters ensure physical-contact (PC) polish performance, minimizing back-reflection that can degrade BER on high-speed optics. Each cassette ships with integrated dust caps and is individually serialized for asset tracking. For greenfield datacenter builds or floor-to-ceiling fiber refreshes, the FQZN-12-10U delivers the plug-and-play reliability and polarity flexibility that separates a two-day cabling install from a two-week troubleshooting nightmare.
