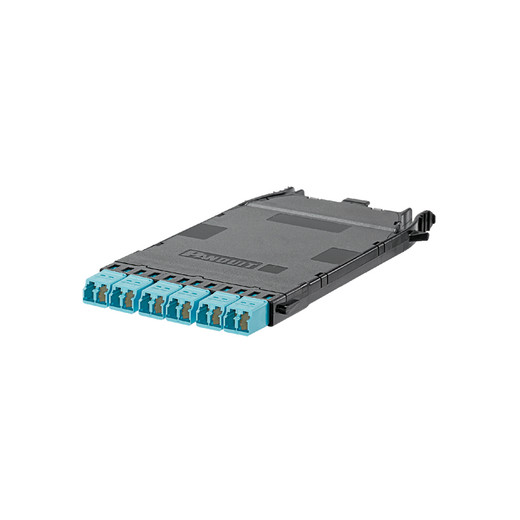

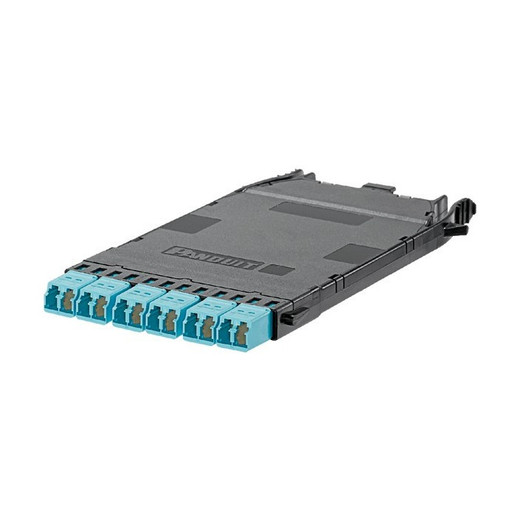

Panduit FHCXA-12-10U HD Flex MPO-LC OM3 Fiber Cassette
The Panduit FHCXA-12-10U is a high-density fiber cassette that converts a single 12-fiber MPO trunk connection into six duplex LC ports, delivering front-access structured cabling for 10G/40G/100G datacenter and backbone deployments. Built on the HD Flex platform with OM3 50µm multimode fiber and ultra-low-loss engineering, this universal-polarity cassette solves the density, migration, and move-add-change problems that come with scaling switch fabrics, camera backhaul networks, and inter-building fiber links in large commercial installations.
Key Features
- 1 MPO-12 male trunk port to 6 duplex LC adapter ports (12 fibers total)
- OM3 50µm multimode fiber rated for 10GBASE-SR (300m), 40GBASE-SR4 (100m), 100GBASE-SR10 (100m)
- Ultra-low-loss design optimized for tight link budgets in BiDi and parallel optics applications
- Universal polarity type supports Method A, B, or C polarity schemes without cassette replacement
- Polycarbonate housing with front-access LC ports for tool-less moves and adds
- Compatible with Panduit FAP fiber adapter panels and FHD high-density enclosures
- Black finish for professional rack aesthetics
- Sold in 10-unit cartons for staging large datacenter builds or campus fiber consolidation points
Datacenter and surveillance network architects face a recurring problem: MPO trunk cables deliver unmatched density for switch-to-switch or building-to-building links, but endpoint devices—cameras with SFP+ uplinks, NVRs, access switches, media converters—terminate on duplex LC connectors. The FHCXA-12-10U cassette sits inside a fiber adapter panel or enclosure and provides the breakout interface, letting you run a single 12-fiber MPO trunk from a core switch or patch panel, then break out to six individual LC duplex connections at the remote end. This approach cuts cable pathway congestion by 83% compared to six discrete duplex LC cables, and eliminates the labor and error risk of field-terminating 12 individual connectors. For integrators deploying 40G or 100G camera backhaul aggregation (common in transportation, stadium, and critical infrastructure projects with hundreds of 4K or AI-equipped cameras), the cassette architecture is the only practical way to maintain structured cabling discipline while preserving future migration paths to 25G, 50G, or 100G per lane.
Panduit's ultra-low-loss engineering addresses a link-budget challenge that generic cassettes often ignore. OM3 fiber is rated for 10GBASE-SR at 300 meters, but that spec assumes a total channel loss of 2.6 dB. Standard cassettes can consume 0.75–1.0 dB per mated pair; add two cassettes (one at each end), two duplex patch cords, and a trunk cable, and you're at the edge of the loss budget with no margin for aging, contamination, or future splices. The FHCXA-12-10U uses Panduit's Optimized Performance (OP) alignment sleeves and factory-terminated low-loss MPO connectors to deliver typical insertion loss under 0.35 dB per mated pair, preserving 0.4–0.65 dB of margin for real-world conditions. For 40GBASE-SR4 and 100GBASE-SR10 parallel optics, where four or ten lanes must all stay within spec simultaneously, this margin is the difference between a link that passes certification and one that requires expensive rework.
The universal polarity designation means this cassette works with Method A, Method B, or Method C polarity schemes as defined in TIA-568.3-D. You don't need to stock separate "Type A" and "Type B" cassettes or guess which polarity your trunk cables use—the internal fiber mapping handles all three methods without adapters or crossover trunks. For projects where you're inheriting existing MPO infrastructure (common in tenant improvements, datacenter expansions, or camera system upgrades in occupied buildings), universal polarity eliminates a major source of deployment delays and field returns. The cassette ships with a clear polarity label, and the front LC ports are numbered 1–6 for straightforward documentation and MAC workflows.
This product is part of Panduit's tested and verified HD Flex fiber system, which includes FHD enclosures, FAP adapter panels, MPO trunk cables, and LC uniboot patch cords. All components are factory-terminated and ship with test reports traceable to the serial number. For integrators bidding design-build projects with performance-based specifications—especially federal, healthcare, or transportation contracts that require as-built certification and 25-year system warranties—the Panduit ecosystem provides the documentation trail and single-source accountability that prevents change-order disputes and supports long-term maintainability.
