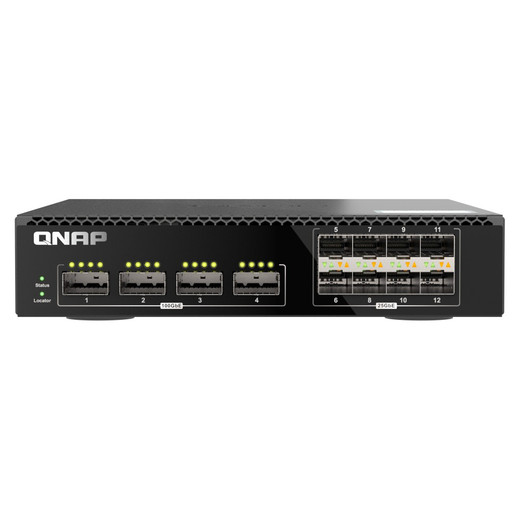

QNAP QSW-M7308R-4X-US Half-Width Rackmount 100GbE L3 Lite Managed Switch
The QNAP QSW-M7308R-4X-US is a half-width rackmount switch built for server rooms and high-density storage environments that need genuine 100GbE backbone connectivity without occupying a full rack unit of width. With four 100GbE QSFP28 uplink ports and eight 25GbE SFP28 downlink ports, it delivers a non-blocking switching fabric of 1200Gbps — enough headroom to aggregate multiple 25GbE NAS nodes or GPU servers into a 100G core without any single link becoming the bottleneck. If you're building or expanding a network around QNAP NAS and storage appliances, this switch is designed to match their top-end interface speeds exactly.
Overview
The QSW-M7308R-4X-US positions itself squarely at the intersection of high-performance network switches and space-constrained rack deployments. The half-width form factor means two units share a single 1U rack space when paired side-by-side — a real consideration in dense edge deployments, co-location cages, or labs where horizontal rack real estate is limited. L3 Lite management adds static routing and inter-VLAN routing capability on top of a full Layer 2 feature set, so you can segment storage, management, and production traffic without a separate router in smaller environments.
Key Features
- 1200Gbps Non-Blocking Switching Fabric: All twelve ports running simultaneously at full line rate won't saturate the backplane — critical when you're running NVMe-over-Fabrics or high-throughput backup jobs where every port is active at once. At 1200Gbps total capacity, you have no internal congestion between uplinks and downlinks even at peak load.
- Four 100GbE QSFP28 Uplink Ports: QSFP28 accepts both 100G and 40G optics, giving you forward-compatible uplinks to core switches or direct connections to dual-port 100GbE servers. Four uplinks means you can run LACP bonding for 400G aggregate uplink bandwidth or dedicate individual ports per server for lower latency and simpler fault isolation.
- Eight 25GbE SFP28 Downlink Ports: 25GbE is the current sweet spot for NAS and server connectivity — four times the throughput of 10GbE at a fraction of the cost premium of 100GbE. Eight SFP28 ports let you connect up to eight NAS nodes, storage servers, or compute nodes at full 25G line rate without sharing bandwidth. SFP28 is also backward-compatible with 10GbE SFP+ optics, so legacy gear integrates without adapter hardware.
- L3 Lite Managed with Static Routing: Beyond standard L2 features (VLANs, RSTP, LACP, port mirroring), L3 Lite adds static routes and basic inter-VLAN routing. This means a dedicated storage VLAN and a management VLAN can route between each other on-switch — no external router hop needed for storage admin traffic in a converged environment.
- Half-Width Rackmount Form Factor: At half the width of a standard 19-inch rack unit, two QSW-M7308R-4X-US switches mount side by side in a single 1U slot. For deployments where you need redundant switches but are working inside a half-rack or compact enclosure, this form factor is often the deciding factor over full-width alternatives.
- All-Fiber SFP28/QSFP28 Architecture: No copper RJ45 ports means this switch is purpose-built for structured fiber cabling in data centers and server rooms — not a general-purpose access switch. DAC (Direct Attach Copper) cables are supported in SFP28/QSFP28 for short-reach connections, keeping cabling costs low for within-rack and adjacent-rack links while preserving the low-latency characteristics of direct attach.
- QNAP Ecosystem Integration: Designed to pair directly with QNAP's 25GbE and 100GbE NAS platforms, the QSW-M7308R-4X-US eliminates the interoperability uncertainty that comes with mixing third-party switches into a QNAP-led storage architecture. Management, link negotiation, and firmware compatibility are validated against QNAP's NAS and NVR product lines.
Integration and Compatibility
The all-SFP28/QSFP28 port design means this switch integrates into any fiber-based spine-leaf or collapsed-core architecture — not just QNAP deployments. For teams building around a PoE switch at the access layer and this switch at the aggregation layer, the 25GbE downlinks carry uplink traffic from multiple PoE access switches without congestion. The QSFP28 uplinks connect directly to 100GbE spine switches from any major vendor using standard LC/MPO fiber or QSFP28 DAC cables.
Static routing support makes this unit viable as a standalone distribution switch in environments with 2–4 VLANs that need inter-segment routing without a full L3 core. For larger environments requiring dynamic routing (OSPF, BGP), pair it with a full L3 core switch — the QSW-M7308R-4X-US handles the 25G aggregation tier while the core handles routing policy. Review the managed switch category for full-L3 alternatives if your routing requirements go beyond static routes.
Frequently Asked Questions
Q: What is the total switching capacity of the QSW-M7308R-4X-US?
A: The QSW-M7308R-4X-US has a backbone switching capacity of 1200Gbps, supporting all twelve ports (four 100GbE QSFP28 and eight 25GbE SFP28) at full line rate simultaneously without internal bottlenecking.
Q: Does the QSW-M7308R-4X-US support PoE (Power over Ethernet)?
A: No. The QSW-M7308R-4X-US uses exclusively SFP28 and QSFP28 fiber ports. It does not provide PoE power delivery. It is designed as an all-fiber aggregation and uplink switch for server and storage environments, not an access-layer switch for powering IP cameras or phones.
Q: Can I use 10GbE SFP+ optics in the 25GbE SFP28 ports?
A: SFP28 ports are backward-compatible with SFP+ (10GbE) optics and DAC cables, allowing legacy 10GbE equipment to connect without additional adapters. Link speed will negotiate to 10GbE on those ports.
Q: What does 'L3 Lite' mean, and does the QSW-M7308R-4X-US support dynamic routing protocols?
A: L3 Lite means the switch supports static routing and inter-VLAN routing on top of a full Layer 2 feature set, but does not support dynamic routing protocols such as OSPF or BGP. For environments requiring dynamic routing, this switch is best deployed as an aggregation tier under a full L3 core switch.
Q: How does the half-width form factor work in a standard rack?
A: The QSW-M7308R-4X-US is half the width of a standard 19-inch rack unit. Two units can be mounted side by side in a single 1U rack slot using a compatible half-width mounting bracket, effectively doubling switch density per rack unit compared to full-width alternatives.
Q: Is the QSW-M7308R-4X-US suitable for direct connection to QNAP NAS appliances with 25GbE ports?
A: Yes. The eight 25GbE SFP28 ports are designed specifically to match the top-end interface speeds on QNAP's 25GbE-equipped NAS and storage platforms, providing direct line-rate connectivity without speed mismatch or intermediate switching tiers.
The QSW-M7308R-4X-US is one of the more focused switches I've spec'd in the past year — it does exactly one job (aggregate 25G storage nodes into 100G uplinks) and does it in half the rack width of competing alternatives. The 1200Gbps non-blocking fabric is the number that matters: at full port utilization with all eight 25GbE downlinks and four 100GbE uplinks active, you still have zero internal congestion. That's not marketing math — it's the arithmetic of 8×25 + 4×100 = 600Gbps per direction, matching the 1200Gbps full-duplex fabric exactly.
Technical Highlights:
- 1200Gbps Non-Blocking Fabric: Full line rate on all 12 ports simultaneously — no oversubscription ratio to negotiate around when planning high-throughput NAS or NVMe-oF workloads.
- Four QSFP28 Uplinks: QSFP28 accepts 100G SR4, LR4, and DAC cables. Running all four as a 400G LACP bond to a core switch gives you 4:1 uplink-to-downlink oversubscription — acceptable for most storage workloads and eliminates a single uplink as a failure domain.
- L3 Lite Static Routing: Enough for a two-VLAN storage/management split without an external router. Not a replacement for full OSPF — if you're running more than three VLANs with complex routing policy, budget for a full L3 core above this unit.
Deployment Considerations:
- Half-width mounting requires a compatible bracket or a half-width shelf — verify your rack vendor's half-width accessory before ordering if you plan to pair two units side by side in one 1U slot.
- This is an all-fiber switch with zero copper RJ45 ports. Every connected device needs an SFP28 or QSFP28 interface, or a supported DAC cable — factor optic and cable costs into total deployment budget before committing.
For teams building out a QNAP all-flash NAS cluster where each node has a 25GbE interface and you need clean 100G uplink aggregation in a compact enclosure, the QSW-M7308R-4X-US is the direct-fit answer — sized right, non-blocking, and half-width for the constrained-space installs that full-width switches can't serve cleanly.
