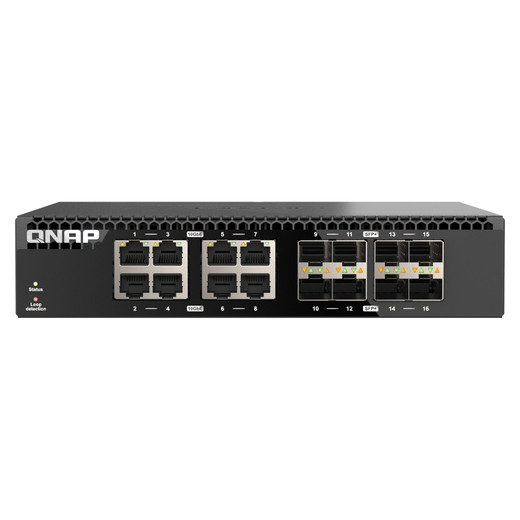

QNAP QSW-3216R-8S8T-US Half-Width Rackmount 16-Port 10GbE Unmanaged Switch
Overview
The QNAP QSW-3216R-8S8T-US is a half-width rackmount unmanaged switch that puts sixteen 10GbE ports — eight SFP+ fiber and eight copper RJ45 — into a compact footprint that only occupies half a rack unit of horizontal space. If you are running a high-density NAS environment, a multi-node surveillance recording cluster, or any edge deployment where cabinet real estate is at a premium, this switch lets you land two units side-by-side in a single 1U slot and still deliver 10Gb throughput to every connected device. There is no management plane to license, no firmware to harden, and no CLI to configure — plug it in and it forwards traffic at line rate.
Key Features
- 16 x 10GbE Ports (8 SFP+ / 8 RJ45): Both port types run at 10 Gigabit, so you are not mixing speed tiers across your uplinks and host connections. The eight SFP+ ports handle long-reach fiber runs or DAC cables to top-of-rack aggregation switches; the eight RJ45 ports connect QNAP NAS appliances, servers, or workstations over standard Cat6A within the same rack or across a short cable run. Mixing interface types on a single unmanaged switch at this price point removes the need for a separate media converter tier.
- Half-Width Rackmount Form Factor: The chassis is engineered to occupy exactly half the horizontal width of a standard 19-inch rack bay. Two units can be bracket-paired and mounted as a single 1U assembly, effectively doubling your 10GbE port density without consuming additional vertical rack space. For edge wiring closets and compact NAS enclosures where U-count is the binding constraint, this form factor is the primary reason to choose this model over a full-width alternative.
- Automatic Loop Detection and Blocking: Unmanaged switches have no spanning tree protocol, which means a cabling loop will broadcast-storm the entire segment and take down every connected device. The QSW-3216R-8S8T-US includes automatic loop detection that identifies and blocks looping ports without operator intervention — a meaningful reliability safeguard in dense environments where junior technicians may inadvertently create loops during installation or maintenance.
- 48.632W Max Power Consumption: Running sixteen 10GbE ports at full load draws under 49W from the wall. For a rack PDU budget calculation, plan one 15A circuit for every 6–7 units at worst-case draw. In practice, idle draw will be considerably lower. The switch accepts 100–240VAC at 50/60Hz, so it is compatible with standard North American circuits as well as international installations without any power conversion hardware.
- 16K MAC Address Table: A 16,000-entry MAC table is more than sufficient for the dense node counts this switch is designed to serve — NAS clusters, GPU servers, storage arrays, and surveillance recorders rarely exceed a few dozen endpoints per switch. You will not hit MAC table exhaustion in any realistic deployment at this port density.
- Zero Management Overhead: There is no web interface, no SNMP agent, and no firmware update cycle. For environments where network simplicity and reliability matter more than VLAN segmentation or QoS policy, an unmanaged 10GbE switch removes an entire category of configuration and maintenance work. If you do need VLANs or traffic prioritization, you will need a managed switch instead — the QSW-3216R-8S8T-US is intentionally designed for flat-network, plug-and-run deployments.
Integration and Compatibility
The QSW-3216R-8S8T-US is position-agnostic at the network layer — any device with a 10GbE SFP+ or 10GbE RJ45 interface connects without configuration. It pairs naturally with QNAP NAS and storage appliances that carry 10GbE ports, and it is equally at home aggregating connections from third-party servers, workstations, and network video recorders in mixed-vendor environments. The SFP+ ports accept standard SFP+ transceivers and DAC cables; no proprietary optics are required. For deployments requiring PoE delivery to cameras or access control devices, this switch provides no PoE — consult a dedicated PoE switch for those endpoints. If your architecture demands traffic segmentation, QoS, or link aggregation, review the managed switch options in the same category before committing to an unmanaged platform. A network switch selection guide can help clarify the managed vs. unmanaged decision based on your specific topology and recording requirements.
Frequently Asked Questions
Q: Does the QSW-3216R-8S8T-US support PoE to power cameras or access control devices?
A: No. The QSW-3216R-8S8T-US is a non-PoE switch. All sixteen ports are data-only. If you need to power IP cameras, door controllers, or other PoE-dependent devices, you will need a separate PoE switch for those endpoints.
Q: Can two QSW-3216R-8S8T-US units be mounted together in a single 1U rack space?
A: Yes. The half-width form factor is specifically designed so that two units can be bracket-paired and installed side by side in a single 1U rack bay, doubling your 10GbE port count to 32 ports in one rack unit.
Q: What is the maximum power draw, and what power input does the switch require?
A: Maximum power consumption is 48.632W. The switch accepts AC input across a wide voltage range of 100–240VAC at 50/60Hz, making it compatible with standard North American and international circuits without a step-down transformer.
Q: Does this switch require any configuration or software to operate?
A: No. The QSW-3216R-8S8T-US is an unmanaged switch — it operates at plug-and-play with no web interface, CLI, or management software required. It does include automatic loop detection that blocks looping ports without manual intervention.
Q: What is the MAC address table size, and will it limit performance in a dense deployment?
A: The MAC address table holds 16,000 entries. For the node counts typical of NAS clusters, surveillance recorders, and storage arrays — the primary use cases for this switch — table exhaustion is not a practical concern.
Q: Can the SFP+ ports use standard third-party transceivers and DAC cables?
A: The SFP+ ports accept standard SFP+ form-factor transceivers and direct-attach copper (DAC) cables. No proprietary optics are required, so you can use off-the-shelf 10G SR, LR, or DAC interconnects from any compatible vendor.
The QSW-3216R-8S8T-US comes up in conversations whenever an integrator is trying to densify 10GbE connectivity without surrendering a full 1U per switch. The half-width chassis is the defining spec here — 16 ports at 10Gb each in a form factor that lets you pair two units into one rack slot is a legitimate space multiplier, not just a marketing claim. I reach for this switch when a customer has a multi-node QNAP NAS cluster and needs a clean, low-overhead aggregation point that will never need a firmware window or a management session.
Technical Highlights:
- Dual Interface Types at 10GbE: Eight SFP+ and eight RJ45 running at the same speed tier eliminates the speed mismatch problem that plagues mixed-interface deployments. Fiber uplinks and copper host connections share the same forwarding plane without rate conversion.
- 48.632W Max Draw: Under 49W for 16 x 10GbE ports is a competitive power envelope. A single standard 15A circuit can support multiple units without tripping PDU breakers — relevant when you are stacking several of these in a high-density NAS rack.
- Automatic Loop Detection: In unmanaged environments with no spanning tree, loop protection is the single most important safeguard. The hardware-level loop blocking on this unit prevents a mispatched cable from broadcasting the segment down — a real-world failure mode I have seen take out entire storage clusters.
Deployment Considerations:
- This is a flat-network device. If the deployment requires VLAN segmentation to isolate surveillance traffic from production LAN, or needs QoS to prioritize NVR recording streams, this switch cannot deliver those functions — plan for a managed switch instead and use the QSW-3216R-8S8T-US only behind it for device aggregation.
- The RJ45 10GbE ports require Cat6A cabling for reliable 10Gb operation at distances beyond 30 meters. Cat5e or Cat6 will either drop to 1Gb or fail to link at all depending on cable quality and run length — verify your installed cabling before committing to an RJ45-heavy port plan.
This switch is well-matched to a multi-bay QNAP NAS deployment where four to eight storage nodes need 10GbE interconnects and rack space is constrained — the half-width rackmount format and zero-configuration operation make it the practical choice over a full-width managed switch when flat-network simplicity is acceptable.
