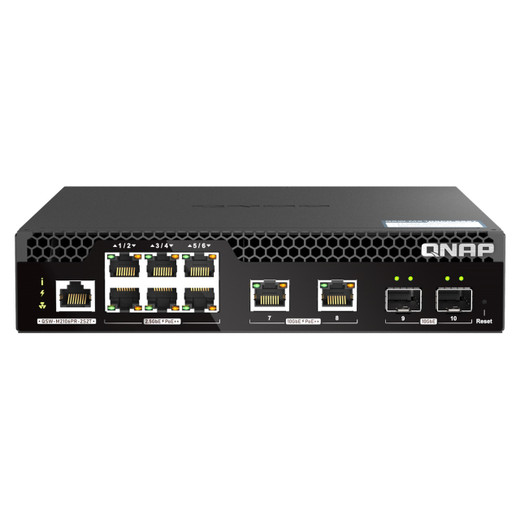

QNAP QSW-M2106PR-2S2T-US Half-Width Rackmount L2 PoE++ Managed Switch
Overview
The QNAP QSW-M2106PR-2S2T-US is a half-width rackmount L2 PoE++ managed switch purpose-built for deployments where high-wattage PoE endpoints — pan-tilt-zoom cameras, multi-sensor units, access control panels with electric locks, or Wi-Fi 6 access points — share rack space with 10GbE uplinks and fiber backhaul. Its compact half-rack form factor lets two units share a single 1U shelf, a practical advantage in smaller IDFs or consolidation racks where every rack unit counts. With six 2.5GbE PoE++ ports and two 10GbE PoE++ copper ports each delivering up to 90 watts, it handles the heaviest IEEE 802.3bt Class 8 loads without needing a separate PoE injector per device.
If you are evaluating the broader QNAP networking line or comparing against other managed PoE switches, the QSW-M2106PR-2S2T-US occupies a specific niche: mid-density, high-per-port wattage, with both copper 10GbE and fiber SFP+ uplinks in a space-efficient chassis.
Key Features
- Six 2.5GbE PoE++ Access Ports (90W each): Running cameras or wireless APs at 2.5GbE eliminates the bandwidth ceiling that 1GbE imposes on high-resolution multi-stream endpoints. At 90W per port, you can power heated PTZ cameras, dual-radio Wi-Fi 6E APs, or any 802.3bt Class 8 device without a supplemental injector — the switch itself carries the load. This matters when you are running a PoE switch as the sole power source in a remote IDF cabinet.
- Two 10GbE RJ45 PoE++ Ports (90W each): High-bandwidth PoE++ on copper gives you 10GbE throughput to a local NVR, NAS, or server without needing to rewire to fiber. The 90W budget on these ports supports the most demanding single-device loads in the stack — useful when a recorder or edge compute appliance pulls both data and power from the switch.
- Two 10GbE SFP+ Fiber Uplink Ports: Fiber uplinks let you connect to a core switch or distribution layer over long cable runs without the attenuation and interference risk of copper at 10GbE. For buildings with separated IDFs, SFP+ modules support both short-range (SR) and long-reach (LR) distances depending on your transceiver selection — check your fiber infrastructure type before ordering transceivers.
- Layer 2 Web Managed Software: L2 management covers VLAN segmentation, port mirroring for traffic analysis, link aggregation for uplink redundancy, and QoS queuing — the controls a security integrator needs to isolate camera traffic from corporate LAN segments and prioritize video streams. Configuration is browser-based, avoiding the CLI overhead of fully managed enterprise switches for deployments that do not require L3 routing at the access layer.
- Half-Width Rackmount Chassis: The half-rack form factor is a genuine space saver in 1U-constrained environments. Two QSW-M2106PR-2S2T-US units fit side by side in a single rack unit when paired with compatible half-rack mounting hardware, doubling port density without consuming extra vertical space. This makes it a practical choice for compact surveillance racks and smaller telecom closets where full-width switches are wasteful.
- Dual Uplink Technologies (Copper + Fiber): Having both 10GbE RJ45 and SFP+ available simultaneously is not redundant — it is architectural flexibility. You can use the RJ45 ports for local server connections and the SFP+ ports for building backbone uplinks, or configure them in a redundant uplink pair for failover protection at the IDF level without additional hardware.
Integration and Compatibility
The QSW-M2106PR-2S2T-US (often searched as QSW M2106PR 2S2T US) connects natively with QNAP NAS systems and NVRs via 2.5GbE or 10GbE, making it a natural pairing for QNAP-based surveillance storage architectures. The 2.5GbE access ports are forward-compatible with 2.5GbE-capable IP cameras and wireless access points appearing in current product lines, meaning the switch does not require replacement as endpoints are upgraded from 1GbE to 2.5GbE. SFP+ uplinks accept standard industry transceivers — review the QNAP compatibility list for validated modules before procurement. For storage-heavy deployments, consider pairing with a network video recorder connected via the 10GbE RJ45 ports to keep recording throughput off the access-port segment.
Frequently Asked Questions
Q: How many ports on the QSW-M2106PR-2S2T-US deliver PoE power, and at what wattage?
A: Eight ports deliver PoE power: six 2.5GbE ports and two 10GbE RJ45 ports, each rated at up to 90 watts (IEEE 802.3bt PoE++). The two 10GbE SFP+ ports are uplink-only and do not supply PoE.
Q: Can the QSW-M2106PR-2S2T-US power a heated PTZ camera or high-wattage Wi-Fi 6E access point?
A: Yes. At 90W per port, all eight PoE ports meet the IEEE 802.3bt Class 8 ceiling, which covers heated PTZ cameras, dual-radio Wi-Fi 6E APs, and most high-demand PoE devices currently on the market. Confirm the specific device's maximum power draw against the 90W per-port budget.
Q: Does the QSW-M2106PR-2S2T-US require a full rack unit, or does it share space with another device?
A: The switch uses a half-width chassis. Two units fit side by side in a single 1U rack space when the appropriate half-rack mounting shelf is used, making it efficient for space-constrained installations.
Q: What uplink options does the QSW-M2106PR-2S2T-US provide?
A: The switch provides two 10GbE SFP+ fiber uplink ports and two 10GbE RJ45 copper ports. The RJ45 ports also carry 90W PoE++, so they serve dual roles as high-bandwidth access ports or dedicated uplinks depending on your topology.
Q: What speed options are supported on the 2.5GbE PoE++ access ports?
A: The 2.5GbE ports support auto-negotiation across 5G, 2.5G, 1G, and 100M speeds, so legacy 1GbE and 100Mbps PoE devices connect without configuration changes while 2.5GbE-capable devices automatically negotiate the higher rate.
Q: Is the QSW-M2106PR-2S2T-US suitable for connecting directly to a QNAP NAS for surveillance storage?
A: Yes. The 10GbE RJ45 ports connect directly to QNAP NAS units with 10GbE interfaces, providing a high-throughput dedicated storage path that keeps recording traffic off the 2.5GbE camera segment — a straightforward topology for mid-size surveillance deployments.
The QSW-M2106PR-2S2T-US stands out in the L2 managed switch category specifically because of its 90W per-port PoE++ budget across all eight powered ports — not a shared total, but 90W available per device. That number matters when you are speccing a rack for a mixed deployment of heated PTZ cameras and 802.3bt Wi-Fi 6E APs where the per-port draw regularly lands between 60W and 90W. Most competing switches in this price tier either cap out at 60W (802.3bt Class 6) or offer 90W only on a subset of ports. Here it is consistent across the whole PoE port complement.
Technical Highlights:
- 90W PoE++ on All 8 Powered Ports: Six 2.5GbE and two 10GbE RJ45 ports each deliver the full 802.3bt Class 8 ceiling — no port derating, no shared power budget surprises mid-deployment.
- Dual 10GbE Uplink Technologies: Two SFP+ fiber ports for backbone runs plus two 10GbE RJ45 copper ports for local server/NAS connectivity means you do not have to choose between fiber backbone and a direct 10GbE NVR connection — you get both simultaneously.
- Half-Width Form Factor: At half the rack width, two units occupy one 1U slot — practical math for IDF closets where a full-width 24-port switch wastes space and capacity on a 10-camera sub-system.
Deployment Considerations:
- The 2.5GbE access ports auto-negotiate down to 5G/2.5G/1G/100M, so existing 1GbE PoE cameras install without reconfiguration — useful when phasing in 2.5GbE cameras over time rather than a full cutover.
- The SFP+ ports are fiber-only and do not include transceivers in the box — verify transceiver compatibility with QNAP's validated module list before ordering, especially for existing single-mode plant where the wrong transceiver type will not link up.
This switch is a strong fit for a mid-size physical security IDF: 6–8 high-wattage PoE endpoints (PTZ or heated dome cameras, 802.3bt APs), a local 10GbE NAS or NVR on the copper uplink, and a fiber run back to the core — all in half a rack unit. It is less suited to deployments needing L3 routing at the access layer or more than ten total ports without stacking another unit alongside it.
