QNAP QSW-M2108-2C Management Switch - QSW-M2108-2S

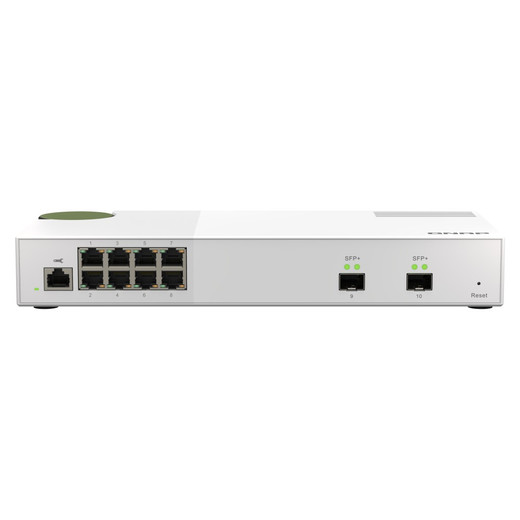

QNAP QSW-M2108-2S 10GbE / 2.5GbE Layer 2 Web Managed Switch

Overview

The QNAP QSW-M2108-2S is an entry-level network switch purpose-built for environments that need multi-gigabit access speeds without the cost of a full 10GbE access tier. Eight 2.5 Gigabit ports handle workstations, NAS devices, and PoE-powered IP cameras at five times the bandwidth of standard gigabit — then two 10GbE SFP+ uplinks aggregate that traffic to your core switch or NAS without creating a bottleneck. It is a practical answer to the 1GbE ceiling problem that shows up in high-camera-count surveillance deployments and NAS-heavy SMB networks alike.

Layer 2 web management means you get VLAN segmentation, traffic prioritization, and port-level visibility through a browser interface without the licensing overhead of a full CLI-managed platform. For most small-to-midsize deployments, that is the right tradeoff.

Key Features

• Eight 2.5 Gigabit Access Ports: Each port delivers 2.5 Gbps — enough headroom for 4K IP cameras, high-resolution NAS transfers, and workstations sharing the same switch fabric without a gigabit access tier becoming the choke point. On a surveillance network, this means more camera streams can coexist on a single run before you hit saturation.
• Two 10GbE SFP+ Uplink Ports: The dual SFP+ slots let you connect fiber or DAC cables directly to a core switch or a 10GbE-equipped QNAP NAS — keeping the aggregation path clear when all eight 2.5GbE ports are active simultaneously. SFP+ also gives you distance flexibility that copper uplinks cannot match.
• Layer 2 Web Managed Platform: Browser-based management covers the essentials for segmentation and QoS without requiring a CLI specialist. For a managed switch at this price tier, it puts VLAN isolation between camera traffic and office LAN within reach of a single IT generalist.
• PoE Support: The switch carries PoE capability, relevant for deployments powering IP cameras or access control readers directly from switch ports — reducing wiring runs and eliminating separate power injectors at each device. Verify PoE budget against your specific camera load before provisioning.
• Entry-Level 10GbE Form Factor: Positioned as an entry point into the 10GbE ecosystem, the QSW-M2108-2S (often searched as QSW M2108 2S) bridges the gap between legacy gigabit infrastructure and full 10GbE access deployments — a sensible intermediate step for phased network upgrades rather than a full rip-and-replace.
• SFP+ Flexibility for Uplinks: SFP+ accepts both multimode fiber and direct-attach copper (DAC) cables, so you can match the uplink medium to your physical plant — short DAC runs in a server room, fiber for cross-building connections — without changing the switch hardware.

Integration and Compatibility

The QSW-M2108-2S sits naturally in mixed QNAP environments where a network video recorder or high-capacity NAS sits at the network edge and needs a local switch that can feed it at wire speed. The 10GbE SFP+ uplinks align with the 10GbE interfaces found across the QNAP NAS lineup, making this a logical access-layer companion to those units. For surveillance-specific builds, the 2.5GbE access ports handle modern multi-megapixel camera streams without forcing camera count compromises that gigabit access switches impose. VLAN support enables the camera-network isolation that security architects and compliance frameworks typically require — separating surveillance traffic from corporate LAN on the same physical switch.

The sibling model, the QSW-M2108-2C, replaces the SFP+-only uplink ports with combo SFP+/RJ45 ports — a consideration if your core switch or NAS lacks SFP+ and you need copper 10GbE connectivity instead. Evaluate your upstream device's interface options before choosing between the two variants.

Frequently Asked Questions

Q: What is the difference between the QSW-M2108-2S and the QSW-M2108-2C?

A: The QSW-M2108-2S has two dedicated 10GbE SFP+ uplink ports, while the QSW-M2108-2C has two 10GbE SFP+/RJ45 combo ports. Both share the same eight 2.5 Gigabit access ports. Choose the 2S if your upstream device has SFP+ interfaces; choose the 2C if you need copper RJ45 10GbE connectivity.

Q: Does the QSW-M2108-2S support VLANs?

A: Yes. As a Layer 2 web managed switch, it supports VLAN configuration through its browser-based management interface — standard practice for isolating camera traffic from the rest of the network.

Q: Can I use the QSW-M2108-2S to connect directly to a QNAP NAS?

A: Yes. The 10GbE SFP+ uplink ports align with the 10GbE interfaces available on many QNAP NAS models. A DAC cable or SFP+ fiber module connects the switch uplink directly to the NAS 10GbE port for full-speed aggregation.

Q: Does the QSW-M2108-2S support PoE for powering IP cameras?

A: The switch carries PoE capability per the product specifications. Confirm the total PoE budget against your planned camera load before finalizing the design to ensure adequate power delivery across all ports.

Q: Is the QSW-M2108-2S suitable for a small surveillance network?

A: It is a practical fit for small-to-midsize surveillance deployments. The eight 2.5GbE ports handle modern multi-megapixel cameras well above the gigabit ceiling, and the 10GbE uplink keeps the path to the NVR or NAS clear. VLAN support enables the camera-to-LAN isolation most security designs require.

James Everett

The QSW-M2108-2S fills a specific gap I see repeatedly in mid-scale surveillance builds: the access layer is stuck at gigabit while the NAS or NVR already has a 10GbE interface sitting idle. Eight 2.5GbE ports give you a real bandwidth step-up at the edge — 2.5x the throughput per camera port — and the dual SFP+ uplinks mean that aggregated traffic reaches the recorder at 10GbE rather than getting strangled by a gigabit trunk.

Technical Highlights:

• 2.5GbE Access Tier: At 2.5 Gbps per port, each access connection handles significantly higher aggregate camera bitrates than a standard gigabit port — directly relevant when deploying 4K or high-frame-rate cameras that push 20–50 Mbps per stream.
• Dual 10GbE SFP+ Uplinks: Two independent 10GbE uplink paths allow link aggregation or dual-homing to separate upstream devices — keeping the aggregation bottleneck out of the picture even when all eight 2.5GbE ports are fully loaded.
• Layer 2 Web Management: Browser-based management delivers VLAN segmentation without requiring a CLI-trained network engineer on-site — practical for security integrators commissioning a site without dedicated IT staff.

Deployment Considerations:

• The SFP+ uplinks require compatible SFP+ modules or DAC cables — budget for these separately if your BOM does not already include them. DAC cables are the lowest-cost option for sub-3m runs to an adjacent NAS or core switch.
• PoE budget is not confirmed in available specifications — do not assume total PoE wattage until you verify against the full datasheet, particularly if you plan to power eight cameras simultaneously at 15W or higher each.

The QSW-M2108-2S is the right access switch for a 6–8 camera IP surveillance deployment feeding a QNAP NAS over 10GbE — specifically where the existing gigabit infrastructure is the limiting factor and a full 10GbE access tier is not justified by the camera count.
