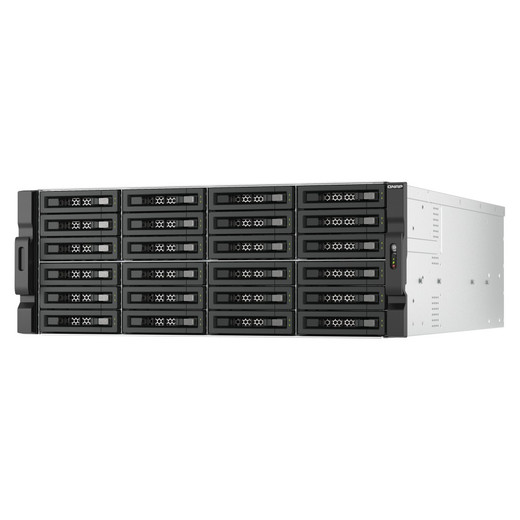

QNAP TL-R2400PES-RP-US 24-Bay PCIe JBOD Storage Enclosure
Overview
The QNAP TL-R2400PES-RP-US is a 4U rackmount JBOD expansion enclosure built for NAS administrators who have exhausted internal bays and need to add raw drive capacity without rebuilding their storage architecture. It connects directly to a compatible QTS or QuTS hero NAS via a PCIe Gen 3 x8 host bus, delivering 64 Gb/s of bandwidth — enough headroom to run 24 spinning SATA drives without the interface becoming the bottleneck. If your NAS chassis is full and your workload keeps growing, this is the direct-attach shelf that slots into that gap. Explore the full QNAP storage catalog for compatible hosts and complementary products.
Key Features
- 24 x 3.5-inch SATA Drive Bays: A full 4U shelf of drive slots means you can populate it with high-capacity 3.5-inch SATA HDDs — think 20TB+ drives — giving you realistic potential for hundreds of terabytes of raw capacity in a single rackmount unit. That matters in NVR-backed surveillance environments where retention requirements keep creeping upward.
- PCIe Gen 3 x8 Interface at 64 Gb/s: Unlike SAS/SATA expander-based shelves that share bandwidth across all drives, the PCIe Gen 3 x8 connection delivers 64 Gb/s — more than enough for concurrent reads and writes across all 24 bays. No artificial throughput ceiling imposed by the expansion link itself.
- Redundant Power Supply: A failed PSU won't take your storage offline. The redundant power configuration is the right call for any deployment where the enclosure is holding data you can't afford to lose access to mid-shift. For 24/7 surveillance recording or always-on NAS workloads, single-PSU expansion shelves are a liability.
- 3 x 80mm Cooling Fans: Three 80mm fans handle thermal management across 24 populated bays. Proper airflow in a dense 4U shelf keeps drive temperatures in check, which directly affects long-term drive reliability — particularly important when the enclosure runs continuously.
- QTS and QuTS hero Compatibility: The TL-R2400PES-RP-US integrates with QNAP NAS systems running QTS or QuTS hero. That means drives appear natively within the NAS OS for volume management, RAID configuration, and health monitoring — no separate management interface to maintain. See QNAP's NAS systems for compatible host units.
- 4U Rackmount Form Factor (6.94 × 17.42 × 24.81 inches): Standard 19-inch rack compatibility at 4U. At 41.16 lbs net (57.96 lbs gross), plan your rack weight budget accordingly — fully loaded with 24 drives, total weight will be substantially higher. Review your rack infrastructure load ratings before deployment.
- Operating Temperature 0–40°C: Rated for standard data center and server room environments. Not suited for uncontrolled outdoor or industrial spaces — if your rack room runs hot, verify ambient temperature stays within range under peak load.
Integration and Compatibility
The TL-R2400PES-RP-US is designed specifically for QNAP NAS systems that expose a PCIe Gen 3 x8 expansion slot for direct-attach storage. It does not function as a standalone NAS — it requires a host NAS running QTS or QuTS hero to manage the drives. Verify your host NAS model supports the PCIe JBOD expansion interface before ordering. Pairing this shelf with a capable QNAP NAS host gives you a single unified storage pool managed entirely within the QNAP OS.
Frequently Asked Questions
Q: Does the TL-R2400PES-RP-US work as a standalone NAS?
A: No. It is a JBOD expansion enclosure only. It requires a compatible QNAP NAS host running QTS or QuTS hero, connected via PCIe Gen 3 x8, to manage the drives.
Q: What interface does the TL-R2400PES-RP-US use to connect to the host NAS?
A: PCIe Gen 3 x8, delivering up to 64 Gb/s of bandwidth between the enclosure and the host system.
Q: Does the TL-R2400PES-RP-US support SSD drives?
A: The enclosure is designed for 3.5-inch SATA drives. QNAP's published specs reference 3.5-inch bays; consult QNAP compatibility lists for any SSD support before populating with non-HDD media.
Q: What happens if one power supply fails?
A: The redundant PSU design keeps the enclosure running on the remaining supply. This is a critical feature for 24/7 workloads where an unexpected shutdown would interrupt recording or data access.
Q: What are the physical dimensions and weight of the TL-R2400PES-RP-US?
A: The enclosure measures 6.94 × 17.42 × 24.81 inches (H×W×D) and weighs 41.16 lbs net (57.96 lbs gross, undriven). Plan rack capacity and structural load accordingly before installation.
The TL-R2400PES-RP-US is the expansion shelf I'd reach for when a QNAP NAS chassis is fully populated and the project calls for keeping everything under one management roof. The PCIe Gen 3 x8 link running at 64 Gb/s is what separates this from SAS expander shelves — you're not sharing a constrained backplane across 24 drives; you're giving the host a wide direct-attach lane that won't choke under sustained write loads.
Technical Highlights:
- 64 Gb/s PCIe Gen 3 x8 bandwidth: At 64 Gb/s, the interface can sustain full sequential throughput across all 24 bays simultaneously — relevant in multi-stream recording environments where dozens of high-bitrate cameras are writing concurrently.
- Redundant PSU: Single points of failure belong nowhere near a storage shelf running 24/7. The redundant power supply means a PSU swap doesn't require a maintenance window or a storage-down event.
- 41.16 lbs net / 57.96 lbs gross: That's the empty enclosure weight. Add 24 populated 3.5-inch drives (roughly 1–1.5 lbs each) and you're looking at 65–80+ lbs total. Rack rail ratings and floor load planning are non-negotiable at this weight class.
Deployment Considerations:
- Verify the host QNAP NAS explicitly supports PCIe JBOD expansion via a Gen 3 x8 slot — not all QNAP models do, and connecting this shelf to an incompatible host yields nothing.
- The 0–40°C operating range is standard data center spec, but a fully loaded 24-bay shelf generates meaningful heat. Confirm rack airflow is adequate before commissioning — the three 80mm fans handle internal circulation, but they depend on cool intake air at the front of the rack.
The TL-R2400PES-RP-US is the right fit for a surveillance or archival storage build where the host QNAP NAS has outgrown its internal bays and the team needs petabyte-scale raw capacity managed natively within QTS or QuTS hero — without introducing a second storage management platform.
