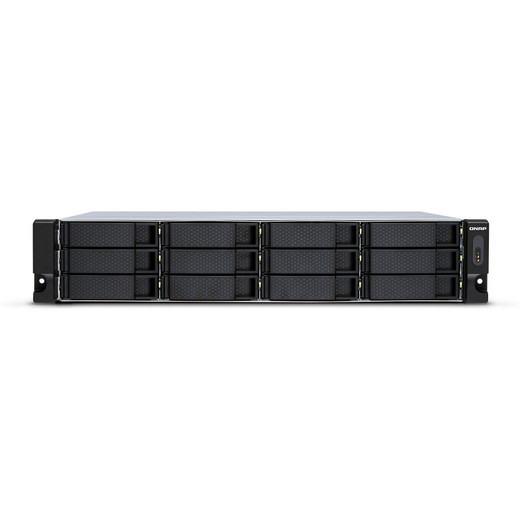

QNAP 12-BAY 2U Rackmount SATA Jbod Expansion - TL-R1200S-RP-US

QNAP TL-R1200S-RP-US 12-Bay 2U Rackmount SATA JBOD Expansion Enclosure

Overview

The QNAP TL-R1200S-RP-US is a 2U rackmount SATA JBOD (Just a Bunch of Disks) expansion enclosure designed to extend raw storage capacity for compatible QNAP NAS systems. Twelve 3.5-inch SATA bays in a 2U form factor makes this a practical choice for environments where you need to scale storage density without adding another full NAS unit — think archive tiers, surveillance footage retention, or bulk data repositories where per-bay cost matters more than compute. Redundant power supplies are built in, meaning a single PSU failure will not interrupt access to the drives — a non-negotiable specification for production storage racks. Ships without hard drives; bring your own HDDs from the QNAP compatibility list.

Key Features

• 12 x 3.5-inch SATA Drive Bays: Twelve bays in 2U gives you a high bay-per-rack-unit ratio. Populate with large-capacity SATA HDDs — at today's 20TB+ drive densities, a fully loaded TL-R1200S-RP-US delivers 240TB raw in 2U, which is meaningful for multi-camera NVR storage expansion or long-retention archive pools.
• SATA 6 Gb/s Interface: Each bay runs native SATA 6 Gb/s, so modern high-capacity surveillance drives operate at full rated throughput. No protocol translation overhead, no RAID controller bottleneck — the NAS host manages everything directly over the SFF-8644/SFF-8088 SAS expansion connection.
• Redundant Power Supply: Dual PSUs in an active-redundant configuration mean the enclosure stays online if one supply fails. For 24/7 surveillance or compliance-driven storage environments, this eliminates the PSU as a single point of failure — a significant operational difference versus single-PSU JBOD enclosures at this price point.
• SFF-8644 to SFF-8088 Mini SAS Connectivity: Three Mini SAS cables (SFF-8644 to SFF-8088) are included in the box. This is the physical interface between the JBOD enclosure and the host NAS expansion card — verify your QNAP NAS model supports an SAS expansion card or has native SFF-8088 ports before ordering.
• Rackmount 2U Form Factor: Engineered for standard 19-inch racks. At 29.03 lbs net weight, plan accordingly for shelf load ratings — this unit loaded with twelve 3.5-inch drives will add significant mass. Factor rack capacity before installing above 4U from the bottom without proper rail support.
• Operating Temperature 0–40°C (32–104°F): Standard commercial datacenter operating range. If your IDF closet or server room runs warm, verify ambient stays under 40°C — JBOD enclosures with densely packed spinning drives are heat-sensitive, and thermal throttling or drive failures in an uncontrolled environment are a real operational risk.
• Ships Without Drives: The TL-R1200S-RP-US (also searched as TL R1200S RP US) arrives diskless. This is intentional — it lets you choose HDDs optimized for your workload (surveillance-grade for 24/7 write cycles, NAS-grade for mixed workloads) and source them separately. Consult the QNAP HDD compatibility list before purchasing drives to ensure support.

Integration and Compatibility

This enclosure is designed for direct attachment to compatible QNAP NAS systems via SAS expansion. The SFF-8644 (host side) to SFF-8088 (enclosure side) cabling is included, but the host NAS must have a supported SAS expansion card or native SAS port — not all QNAP NAS models support external JBOD expansion natively. Check QNAP's product compatibility page for your specific NAS model before purchasing. This is a direct-attach SATA JBOD solution; it does not operate as a standalone NAS and has no network interface. For planning large-scale NAS storage infrastructure, refer to a storage capacity planning guide to size drive count and retention periods accurately. The redundant power design also makes this a natural fit alongside high-availability NAS configurations where uptime is a business requirement.

What's in the Box

• TL-R1200S-RP-US JBOD Enclosure x 1
• Power Cord x 2
• Mini SAS cable (SFF-8644 to SFF-8088) x 3
• Flat head screw x 36 (for 2.5-inch HDD)
• Flat head screw x 48 (for 3.5-inch HDD)

Frequently Asked Questions

Q: Does the TL-R1200S-RP-US work as a standalone NAS?

A: No. The TL-R1200S-RP-US is a JBOD expansion enclosure — it has no onboard processor, network interface, or NAS operating system. It must be connected to a compatible QNAP NAS host via SAS expansion card using the included SFF-8644 to SFF-8088 Mini SAS cables.

Q: Do hard drives come included with the TL-R1200S-RP-US?

A: No. The enclosure ships diskless. You supply your own 3.5-inch SATA hard drives. Consult QNAP's HDD compatibility list for supported models before purchasing drives.

Q: What does the redundant power supply protect against?

A: The dual PSU configuration keeps the enclosure running if one power supply fails. This eliminates the power supply as a single point of failure — important for 24/7 surveillance storage or any deployment where unplanned downtime is unacceptable.

Q: What cables are needed to connect the TL-R1200S-RP-US to a QNAP NAS?

A: Three Mini SAS cables (SFF-8644 to SFF-8088) are included in the box. The host QNAP NAS must have a compatible SAS expansion card or native SFF-8088 port to connect. Verify your NAS model's expansion support before ordering.

Q: Can the TL-R1200S-RP-US accept 2.5-inch drives?

A: The bays are sized for 3.5-inch SATA drives, but the included flat head screws (36 screws for 2.5-inch HDDs) suggest 2.5-inch drives can be mounted with the appropriate screws. Verify with QNAP's compatibility documentation for your specific drive model.

Q: What is the operating temperature range of the TL-R1200S-RP-US?

A: Operating temperature is 0–40°C (32–104°F). Storage temperature range is -20–70°C (-4–158°F). Ensure your rack environment stays within the operating range when fully loaded with drives generating heat.

Jerry Tildsen

The TL-R1200S-RP-US is the unit I reach for when a customer's surveillance NAS is running out of runway and they need to add raw capacity without replacing the whole system. Twelve SATA bays in 2U with redundant PSUs — that combination in a direct-attach JBOD is genuinely useful for production environments where a single PSU failure shutting down your archive tier is not an acceptable outcome.

Technical Highlights:

• 12 x 3.5-inch SATA Bays in 2U: At current 20TB+ HDD capacities, you can deploy 240TB raw in 2U of rack space — a high density-per-rack-unit ratio for bulk surveillance footage retention or tiered archive storage pools.
• Redundant Power Supply: Active dual-PSU configuration eliminates the power supply as a single point of failure. For 24/7 surveillance storage, this is a real operational safeguard — not a luxury feature.
• Three SFF-8644 to SFF-8088 Mini SAS Cables Included: All three cables needed to fully utilize the enclosure's SAS lanes ship in the box. No surprise accessory purchases after delivery, assuming your host NAS has the right expansion card.

Deployment Considerations:

• The host QNAP NAS must have a compatible SAS expansion card with SFF-8088 ports — not all QNAP models support external JBOD expansion. Confirm before ordering; this is the most common installation misstep with this unit.
• Net weight is 29.03 lbs unloaded. Twelve populated 3.5-inch drives add 6–10 lbs depending on drive model — confirm your rack shelf or rail kit is rated for the loaded weight before installation.

This unit is a natural fit for multi-site surveillance deployments where a central QNAP NAS is already established and raw capacity needs to grow without adding management complexity — add the TL-R1200S-RP-US, connect via SAS, and the host NAS sees the drives directly. Straightforward scale-out for teams managing long-retention video archives.
