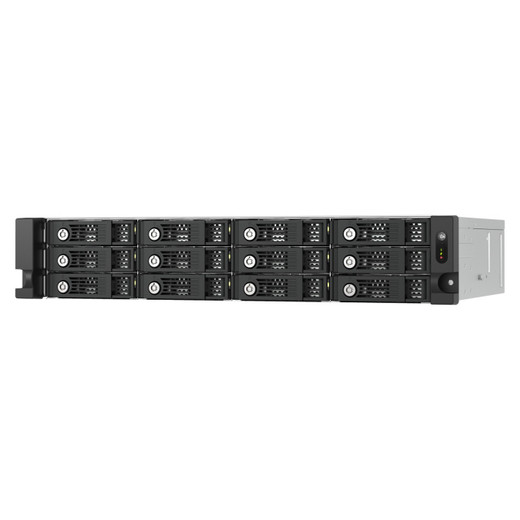

QNAP TL-R1200PES-RP-US 12-Bay 2U PCIe JBOD Storage Expansion
Overview
The QNAP TL-R1200PES-RP-US is a 2U rackmount JBOD storage expansion enclosure designed to extend the raw capacity of compatible QNAP NAS systems via a direct PCIe Gen 3 x8 interface — no network hop, no HBA bottleneck in the traditional sense. With 12 x 3.5-inch drive bays and a theoretical maximum capacity of 4.1 PB, this unit fits the gap between a standalone NAS and a full SAN: you get near-native storage bandwidth at a fraction of the complexity. It ships as the TL-R1200PES-RP-US (sometimes searched as TL R1200PES RP US), and it is stocked for immediate shipment.
The use case is straightforward — when your QNAP NAS has saturated its internal bays and you need expansion without migrating to new infrastructure, this enclosure plugs directly into the host's PCIe slot and presents the drives as local storage. For NAS storage expansion at scale, this is one of the cleaner ways to stay within the QNAP ecosystem without spinning up a second independent unit.
Key Features
- PCIe Gen 3 x8 Interface at 64 Gb/s: Unlike SAS or USB-based expanders, the direct PCIe connection delivers 64 Gb/s of raw bandwidth between the enclosure and the host NAS. This matters when you are running concurrent surveillance recordings, backup jobs, and active workloads — you are not competing for network bandwidth, and sequential read/write speeds scale with the drives rather than the interface ceiling.
- 12 x 3.5-Inch Drive Bays: All 12 bays accept standard 3.5-inch SATA HDDs. At current high-density drive capacities, filling all 12 bays gets you to multi-hundred-terabyte raw usable storage in a 2U footprint — practical for long-retention surveillance archives or deep cold storage tiers.
- Up to 4.1 PB Maximum Capacity: When combined with compatible QNAP NAS units across a multi-unit chain, the total addressable storage reaches 4.1 PB. That ceiling is meaningful for operators running 24/7 multi-channel video at high bitrates where retention windows of 90 days or more are a compliance requirement.
- Redundant 300W Power Supply (x2): The dual redundant PSUs mean a single power supply failure does not take the enclosure offline — drives keep spinning, data stays accessible. This is a non-negotiable spec for any deployment where downtime costs money or compliance gaps are unacceptable. A single-PSU JBOD in a production environment is a liability.
- 2U Rackmount Form Factor (3.49 × 17.01 × 14.59 in): At under 3.5U of rack height, this enclosure stacks efficiently. Standard 19-inch rack compatibility means it drops into any existing rack infrastructure without adapters. Depth of 14.59 inches is shallower than many enterprise expansion units, relevant if your rack is shared or constrained.
- Supports QNAP NAS Ecosystem: This unit is engineered to integrate with compatible QNAP NAS systems via the PCIe host interface card. It does not operate as a standalone NAS — it requires a QNAP host with the matching PCIe expansion port. Verify PCIe slot availability and compatibility with your specific NAS model before ordering.
- Dual Cooling Fans: Two fans handle thermal management across 12 active spinning drives. In a dense rack environment with high ambient temperatures, confirm airflow direction aligns with your rack's cooling design — front-to-back airflow is standard but verify for your specific installation.
Integration and Compatibility
The TL-R1200PES-RP-US connects to the host QNAP NAS using a PCIe Gen 3 x8 interface card (sold separately). This is not a universal storage enclosure — it is purpose-built for the QNAP storage expansion lineup. The PCIe connection means the host OS sees these drives as locally attached storage, which allows the NAS operating system to manage RAID, volume creation, and snapshot scheduling exactly as it would with internal drives.
For integrators working on surveillance storage infrastructure, this expansion approach avoids the latency and bandwidth variability of iSCSI or NFS-attached expansion. When building out video retention archives for large multi-camera deployments, direct-attached PCIe expansion consistently outperforms network-attached alternatives on write consistency — a real factor when dozens of cameras are writing simultaneously at high bitrates.
Pair this unit with a compatible PoE switch infrastructure plan when designing the full surveillance stack — storage expansion solves the retention problem, but camera-side bandwidth planning at the network layer is equally critical for maintaining write throughput at scale.
Frequently Asked Questions
Q: Does the TL-R1200PES-RP-US work as a standalone NAS?
A: No. The TL-R1200PES-RP-US is a JBOD expansion enclosure, not an independent NAS. It requires a compatible QNAP NAS host with an available PCIe Gen 3 x8 slot. The NAS handles all storage management; this unit provides the additional drive bays.
Q: What is the maximum raw storage capacity of the TL-R1200PES-RP-US?
A: The enclosure supports up to 4.1 PB maximum capacity across compatible configurations. It provides 12 x 3.5-inch drive bays, with the total addressable capacity determined by drive density and any additional expansion units connected to the same QNAP host.
Q: Does the TL-R1200PES-RP-US have a redundant power supply?
A: Yes. The unit ships with dual 300W redundant power supplies. If one PSU fails, the enclosure continues operating on the remaining unit, keeping your drives online without interruption.
Q: What interface does the TL-R1200PES-RP-US use to connect to the host NAS?
A: It uses a PCIe Gen 3 x8 interface, delivering up to 64 Gb/s of data transfer bandwidth between the enclosure and the host. This is a direct hardware connection, not a network-based protocol like iSCSI.
Q: What rack space does the TL-R1200PES-RP-US require?
A: The enclosure occupies 2U of rack space. Physical dimensions are 3.49 × 17.01 × 14.59 inches (H×W×D), and it fits standard 19-inch racks.
Q: What does the TL-R1200PES-RP-US weigh?
A: Net weight is 20.33 lbs (without drives). Gross (shipping) weight is 30.91 lbs. Plan rack load calculations accordingly when fully populated with 12 high-capacity drives, which will add significant weight.
The spec that defines where the TL-R1200PES-RP-US fits in a deployment is the PCIe Gen 3 x8 interface running at 64 Gb/s — that is not a bottleneck number, it is a genuine throughput ceiling that exceeds what most spinning-disk arrays can saturate. When I evaluate JBOD expansion options for high-camera-count surveillance builds, the interface bandwidth usually determines whether an expansion unit is a real storage tier or a performance choke point. This one clears the bar comfortably for spinning-disk workloads.
Technical Highlights:
- 64 Gb/s PCIe Gen 3 x8 Bandwidth: At 64 Gb/s, you have roughly 8 GB/s of theoretical throughput to work with. Even with 12 spinning HDDs at peak sequential rates, you will not come close to saturating the interface — meaning the drives, not the connection, are your actual bottleneck. That is exactly where you want the constraint.
- Dual Redundant 300W PSUs: Each PSU is rated at 300W, sized to handle 12 active 3.5-inch HDDs at spin-up simultaneously. The redundancy is the critical point — in a surveillance archive context, a PSU failure that causes a drive enclosure to go offline mid-write can corrupt open files. The hot-swap redundancy here eliminates that failure mode entirely.
- 4.1 PB Maximum Addressable Capacity: That ceiling assumes a multi-unit chain configuration. Per-unit, 12 bays at current high-density 3.5-inch HDD capacities still gets you into the hundreds of terabytes raw — enough for multi-year retention on a substantial camera array without needing a second enclosure in many deployments.
Deployment Considerations:
- Confirm PCIe slot availability on the host QNAP NAS before ordering. The TL-R1200PES-RP-US requires a dedicated PCIe Gen 3 x8 slot and the matching QNAP host expansion card — not every NAS model in the QNAP lineup exposes a usable PCIe slot for this application. Check the QNAP compatibility matrix for your specific NAS model.
- Net weight of 20.33 lbs without drives becomes substantially heavier when fully populated with 12 enterprise HDDs (add roughly 1.5–2 lbs per drive). Factor this into rack load calculations, especially in edge or branch deployments where rack weight limits are tighter.
This unit is well-positioned for centralized surveillance archive deployments where an existing QNAP NAS has exhausted its internal bays and the operator needs to extend retention without adding a second independent NAS to manage. The combination of direct PCIe bandwidth and redundant power makes it a defensible choice for 24/7 write-heavy environments like multi-camera video retention, where both throughput consistency and uptime matter.
