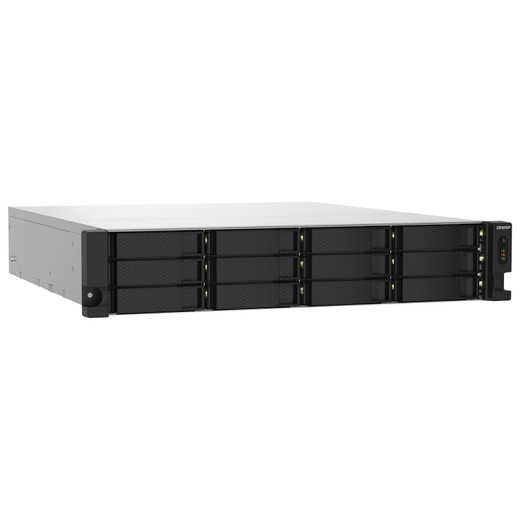

QNAP 12-BAY 2U NVR 56-CH Surveillance - VS-12156U-RP-PRO+-US

QNAP VS-12156U-RP-PRO+-US 56-Channel 2U Rack NVR with Xeon Processor

The QNAP VS-12156U-RP-PRO+-US is a 2U rack-mount network video recorder built for enterprise and mid-market surveillance deployments that have outgrown consumer-grade recorders. With a quad-core Intel Xeon E3 processor, 56-channel IP camera capacity, and 12 hot-swappable SATA bays, this unit is sized for command centers, multi-building campuses, and high-availability installations where drive failure cannot mean system downtime. Explore the full QNAP surveillance line for companion NVRs and storage expansion options.

When This Is the Correct Choice

Deploy the VS-12156U-RP-PRO+-US when your camera count is pushing past 32 channels and you need on-board storage — not a separate SAN — to keep the architecture clean. The 450 Mbps network throughput ceiling comfortably handles 56 simultaneous HD streams without dropped frames, and the Xeon E3 platform gives you headroom for intelligent video analytics running concurrently with live recording. If you're integrating into a network video recorder refresh or greenfield enterprise build, this platform makes sense from roughly 24 cameras up through the full 56-channel ceiling.

When to Choose a Different Model

If your deployment is under 16 cameras and budget is a constraint, a lower-channel QNAP NVR in the same family will deliver the same RAID protection and analytics at lower cost and in a smaller footprint. Conversely, if you need to monitor more than 56 channels from a single appliance, QNAP's higher-channel rack NVR variants scale beyond this unit. For edge deployments without a server rack, a desktop-form NVR is more appropriate than this 2U chassis.

Key Features

• 56-Channel IP Camera Support: Records up to 56 simultaneous IP camera streams — enough for a large retail complex, a multi-floor office building, or a manufacturing plant floor. Up to 128 channels can be monitored in multi-server mode, so this unit can federate with other recorders in a larger enterprise VMS topology. See our security camera systems category for compatible IP cameras.
• Quad-Core Intel Xeon E3 Processor: The Xeon E3 is a server-class CPU, not a repurposed desktop chip. That matters when you're running motion detection, foreign-object detection, and camera-occlusion analytics across a full channel load while simultaneously recording at 30 fps. Under-powered processors at this channel count cause analytics lag and recording gaps — the Xeon E3 platform is sized to avoid that.
• Up to 10-Megapixel Recording: Supports cameras up to 10 MP resolution, giving you the sensor density for license plate capture, facial detail at distance, or wide-area situational awareness without resolution compromise. Recording frame rate is up to 30 fps at H.264 / 720P, so plan codec and resolution per camera to stay within the 450 Mbps throughput budget on high-MP deployments.
• 12 Hot-Swappable Lockable Drive Bays: All 12 bays accept 3.5-inch SATA drives at 6 Gb/s (SATA 3 Gb/s also supported) and are both hot-swappable and lockable. Hot-swap means a failed drive gets replaced without taking the recorder offline — critical in 24/7 environments. The locking mechanism matters in physically accessible server rooms where drive theft is a real concern.
• Flexible RAID with Hot Spare: Supports RAID 0, 1, 5, 5+hot spare, 6, 6+hot spare, JBOD, and Linear across the 12-bay pool. RAID 6+hot spare tolerates two simultaneous drive failures plus a pre-staged replacement — the right choice for long-retention, high-value footage archives where rebuild windows are a compliance risk. Plan your storage using our surveillance storage guide to size retention correctly across RAID level and drive count.
• 450 Mbps Network Throughput: Four Gigabit RJ-45 ports deliver a combined 450 Mbps sustained recording throughput. For context, a 4K H.264 stream at full quality runs roughly 20–25 Mbps; at 56 channels of 1080p H.264, you're well within that ceiling. Bonding the four NICs also enables redundant network paths in environments where a single NIC failure would be unacceptable.
• Intelligent Video Analytics (Edge): Onboard analytics cover motion detection, missing object, foreign object, out-of-focus detection, and camera occlusion — five event types that catch real operational problems (tampering, object removal, camera sabotage) without requiring a separate analytics server. Events trigger recording flags or alerts, reducing manual review time on long recordings.
• Display and Playback Flexibility: Live view supports 1/4/6/8/9/10/12/16-channel layouts on the local VGA output. Remote monitoring extends to 1 through 42-channel display modes, and remote playback supports up to 16 simultaneous channels — enough for an operator reviewing an incident across multiple camera angles without switching views.
• Redundant 600W Power Supply: The 600W redundant PSU accepts 100–240V AC at 50/60 Hz — global voltage compatibility without an external transformer. Actual system draw is 167W under load, so the 600W ceiling leaves substantial headroom for full drive population. Redundant power is a standard requirement for any NVR in a mission-critical or insured installation.
• UPS Integration: Native USB UPS support for APC, CyberPower, and MGE units means the recorder can execute a graceful shutdown on power loss rather than a hard cut — protecting in-flight recordings and filesystem integrity. If your rack already has an APC or CyberPower UPS, this integrates without additional software.
• Three Smart Cooling Fans: Three 6cm variable-speed fans manage thermals across a 0–40°C operating range at up to 90% non-condensing humidity. Fan speed scales with load rather than running flat-out, which reduces noise in control-room environments and extends fan life in 24/7 deployments.

Network and Integration

The VS-12156U-RP-PRO+-US supports HTTP and TCP/IP network services as its base connectivity stack. Four Gigabit RJ-45 ports allow link aggregation or dedicated management/data separation — a configuration that network architects often require in segmented surveillance VLANs. USB ports (2× USB 3.0, 4× USB 2.0) cover UPS communication, backup drives, and peripheral attachment without using network bandwidth. Certifications include CE, FCC, VCCI, BSMI, and C-Tick, covering deployment in North American, European, Japanese, Taiwanese, and Australian markets.

Frequently Asked Questions

Q: How many IP cameras can the VS-12156U-RP-PRO+-US record simultaneously?

A: The VS-12156U-RP-PRO+-US supports up to 56 simultaneous IP camera channels for local recording. In multi-server monitoring mode, it can display and manage up to 128 channels aggregated across multiple NVR units.

Q: What RAID levels are supported, and can I use a hot spare?

A: The unit supports RAID 0, 1, 5, 5+hot spare, 6, 6+hot spare, JBOD, and Linear across its 12 SATA bays. RAID 5+hot spare and RAID 6+hot spare configurations are available for environments where automatic rebuild initiation on drive failure is required.

Q: What is the maximum recording resolution and frame rate?

A: The VS-12156U-RP-PRO+-US records up to 10-megapixel resolution cameras. Maximum frame rate is up to 30 fps at H.264 / 720P. Network throughput is capped at 450 Mbps, so high-MP deployments should plan stream bitrates per camera to stay within that ceiling.

Q: Does the VS-12156U-RP-PRO+-US support UPS integration?

A: Yes. It supports USB-connected UPS units from APC, CyberPower, and MGE. On power loss, the NVR communicates with the UPS to execute a graceful shutdown, protecting active recordings and filesystem integrity.

Q: Can I replace a failed drive without taking the system offline?

A: All 12 drive bays are hot-swappable, so a failed SATA drive can be removed and replaced while the system continues recording on the remaining RAID members. The bays are also individually lockable to prevent unauthorized drive removal.

Q: What certifications does the VS-12156U-RP-PRO+-US carry?

A: The unit is certified CE, FCC, VCCI, BSMI, and C-Tick, covering regulatory compliance for North America, Europe, Japan, Taiwan, and Australia.

Ted Perry

When I look at the VS-12156U-RP-PRO+-US, the spec that immediately matters for enterprise integrators is the 450 Mbps sustained network throughput combined with four independent Gigabit ports. That combination lets you physically separate recording traffic from management traffic — something network architects require in any serious segmented surveillance VLAN, and something you can't retrofit onto a single-NIC appliance after the fact.

Technical Highlights:

• Xeon E3 Quad-Core Platform: Server-class compute matters at 56 channels. Running motion detection, occlusion detection, and missing/foreign-object analytics concurrently with full-channel recording is a real CPU load — the Xeon E3 handles it where a consumer quad-core would drop frames or lag analytics under full channel saturation.
• RAID 6+Hot Spare Across 12 Bays: Two simultaneous drive failures tolerated, plus a pre-staged hot spare that begins rebuilding immediately. On a long-retention archive (30–90 day footage), a rebuild window without a hot spare is a real compliance exposure; RAID 6+HS closes that gap without manual intervention.
• 167W Load vs. 600W Redundant PSU: The system draws 167W under full load against a 600W redundant supply. That 433W headroom is not waste — it means the redundant PSU can carry the full system load on a single rail if one PSU fails, which is the entire point of PSU redundancy in a 24/7 recorder.

Deployment Considerations:

• The VGA output is the only local display interface listed in evidence — confirm your rack console or KVM supports VGA before spec'ing monitor hardware. HDMI is not listed for this unit.
• At 15.88 kg net weight in a 2U chassis, rail kit selection and rack weight budgeting matter — verify your rack's per-U load rating before populating all 12 bays with 3.5-inch drives, which adds meaningful additional mass.

This unit is the right fit for a 40–56 camera enterprise campus deployment — a hospital security center, a multi-building university, or a logistics hub — where drive redundancy, sustained throughput, and on-appliance analytics need to coexist in a single rack-mount package without a separate analytics server eating additional rack units.
