QNAP 16-BAY 3U Rackmount SAS 12GBPS Jbod - TL-R1620SEP-RP-US

QNAP TL-R1620SEP-RP-US 16-Bay SAS 12Gbps JBOD Storage Expansion Enclosure

Overview

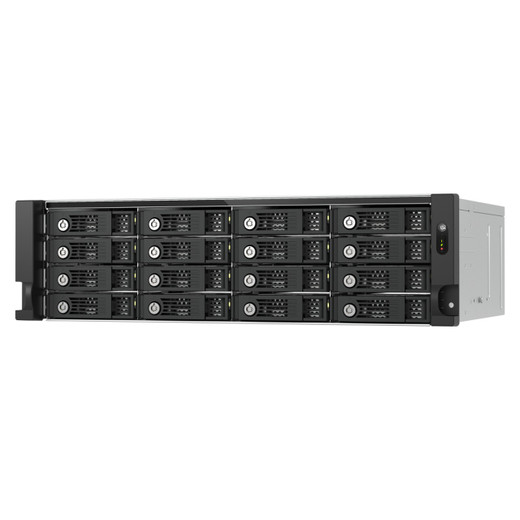

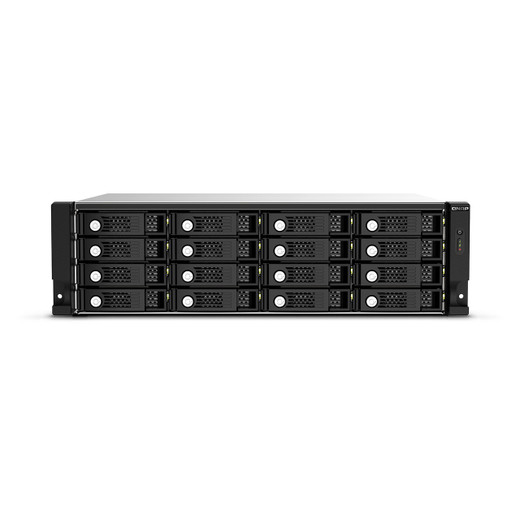

The QNAP TL-R1620SEP-RP-US is a 3U short-depth rackmount JBOD enclosure built specifically to expand raw storage capacity on QNAP QTS and QuTS hero NAS platforms — as well as Windows PC and server environments. Sixteen hot-swappable drive bays and four 12Gb/s SAS 3.0 wide ports give you a direct path to high-density, high-throughput expansion without rebuilding your core infrastructure. If you're running a QNAP NAS that's running out of usable capacity and can't afford downtime to swap drives, this enclosure is the operationally sound answer.

QNAP's QNAP storage and networking line covers a wide range of expansion and NAS solutions; the TL-R1620SEP-RP-US sits at the high end of their storage expansion enclosures category, targeting integrators and IT architects who need enterprise-grade SAS connectivity rather than commodity USB or SATA expansion.

Key Features

• 16 Hot-Swappable Drive Bays: All sixteen bays support hot-swap, meaning you can add or replace drives while the enclosure stays online. In a live production environment — surveillance archive storage, file servers, backup targets — this eliminates the maintenance windows that kill SLAs.
• 4 x 12Gb/s SAS 3.0 Wide Ports (Mini-SAS HD SFF-8644): Each port delivers 12Gb/s; with all four active via link aggregation, you reach a combined 96Gb/s of available throughput. That headroom matters when multiple hosts are writing simultaneously or when you're moving large sequential workloads like video ingestion from a multi-channel NVR.
• 96Gb/s Aggregated Throughput via Link Aggregation: Saturating a single 12Gb/s link is realistic with 16 bays of modern SAS/SATA drives running in parallel. Aggregating all four ports to 96Gb/s ensures the interconnect is never the bottleneck — your drive performance, not the bus, sets the ceiling.
• Broadcom SAS DataBolt Support: DataBolt technology allows SATA drives (which run natively at 6Gb/s) to operate over the 12Gb/s SAS fabric by multiplexing multiple SATA streams over a single SAS lane. This lets you populate the enclosure with cost-effective SATA drives while keeping the high-speed SAS backbone intact — a practical cost-optimization for large cold-storage or archive tiers.
• Multipath Routing: Dual-path connectivity between the host and enclosure means a single cable or controller failure won't take your storage offline. For always-on environments — security video archives, healthcare imaging storage, financial data retention — multipath is the difference between a logged event and a service outage.
• Daisy Chaining: The enclosure supports daisy chaining, so as capacity demands grow you can add additional expansion units downstream without adding host bus adapters. This makes the TL-R1620SEP-RP-US a scalable long-term investment rather than a one-time ceiling.
• 3U Short-Depth Rackmount Form Factor: Short-depth chassis fit in half-depth racks and telco-style enclosures where full-depth units won't clear. If your rack room or IDF closet doesn't have the depth for standard 3U storage, this form factor resolves the physical constraint without compromising bay count.
• QTS and QuTS hero NAS Compatibility: Designed to integrate directly with QNAP's NAS operating systems, which means storage management, health monitoring, and capacity expansion happen through the same interface you're already using. No third-party storage management software required for QNAP-hosted deployments.
• Windows PC/Server Compatibility: Beyond QNAP NAS hosts, the enclosure also connects to Windows servers equipped with a compatible SAS HBA. This broadens deployment options for mixed environments where the primary host isn't a QNAP appliance.

Integration and Compatibility

The TL-R1620SEP-RP-US connects via Mini-SAS HD (SFF-8644) connectors — the standard interface for enterprise SAS 3.0 expansion. Hosts require a compatible SAS 12Gb/s HBA or an expansion-capable QNAP NAS with SAS output. Review your host's HBA port count before ordering: four wide ports on the enclosure mean you can fully leverage link aggregation only when your host controller supports four corresponding SAS connections. For NAS-based storage architectures, consult the storage capacity planning guide to size the enclosure count against your retention requirements and write throughput targets. Daisy-chaining multiple units extends raw capacity further, but each hop adds latency — keep chains short for latency-sensitive workloads like live video recording.

Frequently Asked Questions

Q: What host interfaces does the TL-R1620SEP-RP-US use to connect to a NAS or server?

A: The TL-R1620SEP-RP-US uses four 12Gb/s SAS 3.0 wide ports with Mini-SAS HD (SFF-8644) connectors. Your host — whether a QNAP NAS or a Windows server — needs a compatible SAS 12Gbps HBA with SFF-8644 ports.

Q: Can the TL-R1620SEP-RP-US be used with non-QNAP NAS systems?

A: The enclosure is confirmed compatible with QNAP QTS and QuTS hero NAS platforms and with Windows PC/Server environments. Compatibility with other NAS operating systems (Synology, TrueNAS, etc.) is not stated in the manufacturer specifications — verify with QNAP or test in your environment before committing to a deployment.

Q: What is the maximum throughput the TL-R1620SEP-RP-US can deliver?

A: With all four 12Gb/s SAS ports active and link aggregation configured, the enclosure achieves up to 96Gb/s of aggregated throughput. Individual port throughput is 12Gb/s.

Q: Does the TL-R1620SEP-RP-US support SATA drives, or only SAS drives?

A: The enclosure supports Broadcom SAS DataBolt technology, which allows SATA drives to operate over the 12Gbps SAS fabric. This means you can populate bays with SATA drives while still benefiting from the SAS interconnect backbone.

Q: Is the TL-R1620SEP-RP-US suitable for short-depth or half-depth rack installations?

A: Yes. The form factor is 3U short-depth rackmount, making it compatible with half-depth racks and telco enclosures that cannot accommodate full-depth storage chassis.

Q: Does the TL-R1620SEP-RP-US support daisy chaining for additional expansion?

A: Yes. The enclosure supports daisy chaining, allowing you to connect additional QNAP expansion units downstream from a single host connection as capacity requirements grow.

Marty Allison

The TL-R1620SEP-RP-US addresses a very specific pain point I see repeatedly in surveillance and data-intensive deployments: a QNAP NAS that's full but operationally healthy, where a forklift upgrade is neither justified nor budgeted. With four 12Gb/s SAS 3.0 wide ports and 16 hot-swappable bays, this enclosure adds raw capacity without touching the host — and the 96Gb/s aggregated throughput ceiling means even a dense multi-camera recording environment isn't going to saturate the interconnect.

Technical Highlights:

• 96Gb/s Link Aggregation: Four 12Gb/s SAS wide ports bonded together deliver 96Gb/s — enough headroom for simultaneous high-bitrate writes from dozens of camera streams plus concurrent reads for playback or backup without the interconnect becoming the constraint.
• Broadcom SAS DataBolt: Lets you run SATA drives over the 12Gbps SAS fabric, so you can use high-capacity, cost-effective SATA surveillance-grade drives in all 16 bays while keeping the SAS backbone for multi-host or multipath configurations.
• Multipath Routing: Dual-path connectivity between host and enclosure means a controller card failure or cable pull doesn't drop your storage. In a 24/7 video retention environment, that fault tolerance is operationally non-negotiable.

Deployment Considerations:

• Your host HBA must have four SFF-8644 ports to fully utilize all four SAS wide ports and hit the 96Gb/s aggregate — verify your QNAP NAS model's expansion card spec or your Windows server's HBA before ordering, since under-provisioning the host side leaves bandwidth on the table.
• Daisy chaining is supported, but each hop adds latency — keep chains to two or three units maximum for live video write workloads; longer chains are better suited to archive or cold-storage tiers where sequential latency is less critical.

The TL-R1620SEP-RP-US (often searched as TL R1620SEP RP US) is the right call for security operations centers or enterprise surveillance deployments running a QNAP QuTS hero NAS that has outgrown its internal bays and needs to scale to petabyte-range retention without migrating to a new host platform.
