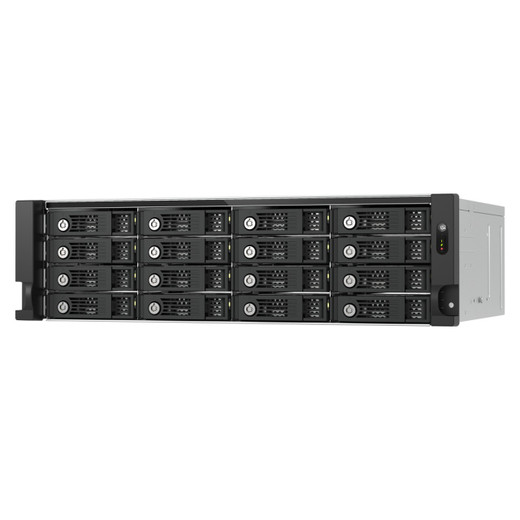

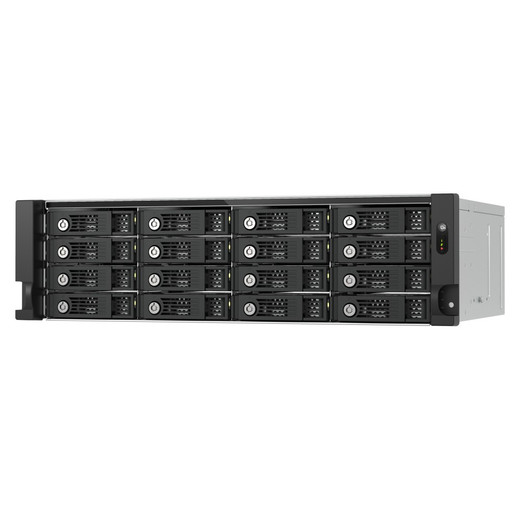

QNAP TL-R1600PES-RP-US 16-Bay PCIe JBOD Storage Expansion Enclosure
Overview
The TL-R1600PES-RP-US is a 16-bay 3U rackmount JBOD storage enclosure engineered specifically for QNAP NAS systems running QTS or QuTS hero. Rather than replacing your existing NAS, this unit plugs directly into it over a PCIe Gen 3 x8 interface — delivering 64 Gb/s of raw throughput to the host — letting you push usable raw capacity up to 2.9 PB with high-density SATA drives. If you've hit the wall on native bay count and need a clean, high-speed path to petabyte-scale storage without rebuilding your NAS stack, this is the straightforward answer.
The enclosure ships without drives, so you pair it with whatever SATA HDDs fit your workload and budget. Check QNAP's published HDD compatibility list before ordering drives — not every high-capacity SATA model is validated for use in this chassis.
Key Features
- 16 x 3.5-inch Drive Bays: Sixteen full-size SATA bays in a 3U chassis means you can load the enclosure with high-capacity drives and hit raw capacities up to 2.9 PB. For NVR deployments or archive-heavy workflows where retention policy demands months of continuous footage, that headroom matters. One enclosure can absorb what would otherwise require multiple smaller units.
- PCIe Gen 3 x8 Interface at 64 Gb/s: The PCIe connection is a direct bus-level link to the NAS host — not a network hop, not a USB bridge. At 64 Gb/s, the interface is not the bottleneck; drive sequential speeds are. This is the meaningful spec if you're doing parallel ingest from many camera streams or running RAID rebuild in the background while still writing new data.
- Petabyte-Scale Capacity (Up to 2.9 PB): Achieving 2.9 PB requires populating all 16 bays with the highest-capacity validated drives. In practice, most deployments will land well below that ceiling, but the ceiling matters for planning purposes — you can grow into this enclosure rather than outgrow it in 18 months.
- Redundant Power Supply: The built-in redundant PSU means a single power supply failure does not take your storage offline. For any 24/7 deployment — continuous video recording, live archive access, always-on NAS workloads — this is not a luxury. A non-redundant JBOD that drops during a PSU fault costs you data access and potentially corrupted writes mid-stream.
- QNAP QTS / QuTS Hero Native Integration: The TL-R1600PES-RP-US is designed for QNAP NAS hosts exclusively. Once connected via PCIe, the host OS recognizes and manages the expansion bays natively — no additional driver stack, no third-party storage management layer. Storage pools, RAID groups, and volume management all operate through the same QNAP interface you're already running.
- Designed for SATA Hard Drives: SATA HDD compatibility means you can source high-density, high-capacity spinning media optimized for surveillance or archive workloads (e.g., drives rated for always-on, high-write-cycle use). SSDs are not the target here — this chassis is built for cost-efficient bulk storage, not IOPS-intensive random-access workloads.
Integration and Compatibility
The TL-R1600PES-RP-US connects exclusively to QNAP NAS units with a compatible PCIe expansion slot. Before purchase, verify your NAS model has an available PCIe Gen 3 x8 slot — not all QNAP units expose a compatible slot or support JBOD expansion via this interface. QNAP publishes a compatibility matrix; cross-reference your NAS model against it before committing. The enclosure itself provides no standalone compute or network interface — it is purely a storage expansion target that the host NAS manages entirely. Pair this with a storage network switch or QNAP NAS catalog host that matches your bandwidth and bay requirements. Review QNAP's HDD compatibility list for validated drive models before populating bays — using unvalidated drives in a high-density JBOD can introduce stability issues that are difficult to diagnose after the fact.
Frequently Asked Questions
Q: Which QNAP NAS models are compatible with the TL-R1600PES-RP-US?
A: The TL-R1600PES-RP-US is designed for QNAP NAS systems running QTS or QuTS hero with a compatible PCIe Gen 3 x8 expansion slot. Consult QNAP's official compatibility matrix to confirm your specific NAS model supports PCIe JBOD expansion via this interface before purchasing.
Q: Does the TL-R1600PES-RP-US ship with hard drives included?
A: No. The enclosure ships without HDDs. You source and install your own SATA 3.5-inch drives. Refer to QNAP's HDD compatibility list to confirm which drive models are validated for this enclosure.
Q: What is the maximum storage capacity of the TL-R1600PES-RP-US?
A: With all 16 bays populated with the highest-capacity validated SATA drives, the enclosure supports up to 2.9 PB of raw storage capacity.
Q: What interface does the TL-R1600PES-RP-US use to connect to the host NAS?
A: It uses a PCIe Gen 3 x8 interface, delivering up to 64 Gb/s of data throughput between the enclosure and the host NAS — a direct bus connection with no network overhead.
Q: Does the TL-R1600PES-RP-US support redundant power?
A: Yes. The TL-R1600PES-RP-US includes a redundant power supply, so a single PSU failure does not interrupt storage availability — an important consideration for 24/7 recording and archive workloads.
Q: Can the TL-R1600PES-RP-US be used as a standalone NAS or with non-QNAP hosts?
A: No. This is a JBOD enclosure with no standalone compute or management capability. It requires a compatible QNAP NAS host for operation and is not compatible with non-QNAP systems.
The TL-R1600PES-RP-US is the expansion unit I'd reach for when a QNAP NAS has run out of native bays and the workload demands real throughput — not a USB or network-attached workaround. The PCIe Gen 3 x8 link running at 64 Gb/s means you're not introducing a new bottleneck into a multi-camera recording system when you add this enclosure. For context, 64 Gb/s is well above what even a fully loaded rack of 4K cameras can push through simultaneously — the interface stays out of your way.
Technical Highlights:
- 64 Gb/s PCIe Gen 3 x8 Throughput: Direct bus-level connection eliminates network-layer latency and bandwidth caps. Parallel write streams from high-camera-count NVR deployments won't saturate this link under normal operating conditions.
- Up to 2.9 PB Raw Capacity: Sixteen 3.5-inch SATA bays give you room to scale incrementally — start with a partial build and add drives as retention requirements grow, without replacing the enclosure.
- Redundant Power Supply: In a 24/7 surveillance or archive environment, PSU redundancy is a system-uptime requirement, not an optional upgrade. The built-in redundant PSU means one failure event doesn't become a storage outage.
Deployment Considerations:
- Confirm your QNAP NAS host has an open, compatible PCIe Gen 3 x8 slot before ordering — not every NAS in the QNAP lineup supports this expansion path, and the slot requirement is non-negotiable for this enclosure.
- The unit ships diskless. Budget drive procurement separately and validate every drive model against QNAP's HDD compatibility list — high-capacity NAS-rated drives (CMR, not SMR) are strongly preferred for RAID rebuild stability at this density.
This enclosure fits best in a surveillance or media archive build where an existing QNAP NAS is the storage host, retention policies demand multi-hundred-terabyte headroom, and the redundant PSU requirement is non-negotiable for the site's uptime SLA. It's not a general-purpose or cross-platform solution — but for QNAP-anchored deployments, the TL-R1600PES-RP-US delivers the capacity path cleanly.
