QNAP 60-BAY 4U Rackmount SAS 12GBPS High - TL-R6020SEP-RP-US

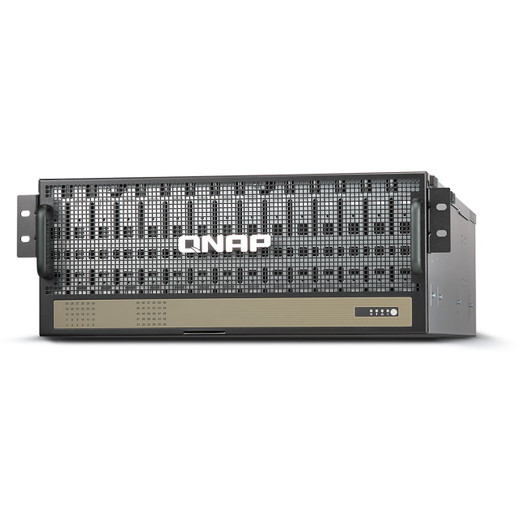

QNAP TL-R6020SEP-RP-US 60-Bay 4U SAS/SATA Storage Expansion Enclosure

Overview

The TL-R6020SEP-RP-US is QNAP's high-density 4U rackmount SAS/SATA storage expansion enclosure — sixty 3.5-inch drive bays in a single chassis, purpose-built for organizations that need petabyte-level capacity without sprawling across multiple units. If your NAS or server is running out of room and you need to scale storage without adding more head units, this is the architecture that solves it. Explore the broader QNAP storage line to pair this with the right host system.

Key Features

• 60 x 3.5-inch SAS/SATA Drive Bays: Sixty slots in a single 4U chassis means you can provision raw petabyte-scale capacity without stacking multiple enclosures or managing separate SAS domains. At 20TB per drive, that's up to 1.2PB raw in one unit — meaningful for deep archive, media repositories, or large surveillance retention pools.
• SAS 12Gbps Interface: The 12Gbps SAS backbone delivers double the throughput of 6Gbps SAS, which matters when you're streaming sequential writes from dozens of drives simultaneously — high-channel NVR workloads and bulk data ingest both benefit from that headroom.
• 4U High-Density Chassis: Four rack units for sixty drives is an efficient footprint. Compared to spreading equivalent capacity across multiple 2U enclosures, you cut cabling, SAS expander hops, and points of failure — simpler to manage, simpler to troubleshoot. See how this fits into a broader NAS and storage expansion architecture.
• Redundant Power Supply (RP): The -RP suffix matters in production environments. Dual redundant PSUs mean a single power supply failure does not take the array offline — critical for always-on surveillance recording or 24/7 data workloads where unplanned downtime is not acceptable.
• Rackmount Form Factor: Designed for standard 19-inch server racks, the TL-R6020SEP-RP-US integrates cleanly into existing data center or server room infrastructure. No custom shelving or adapters needed for standard rack deployments.

Integration and Compatibility

The TL-R6020SEP-RP-US is designed as a SAS storage expansion target for compatible QNAP NAS systems with SAS expansion card support. Verify your host NAS or server has an available SAS 12Gbps expansion port before ordering — the enclosure is passive storage only and requires a connected host to manage volumes and RAID. For large-scale surveillance deployments, pair with a compatible network video recorder or NAS-based VMS host. If you are planning capacity at this scale, review your storage retention planning to confirm drive count and RAID overhead align with your actual retention requirements.

Frequently Asked Questions

Q: What drive sizes does the TL-R6020SEP-RP-US support?

A: The TL-R6020SEP-RP-US supports sixty 3.5-inch SAS or SATA hard drives across all sixty bays.

Q: Does the TL-R6020SEP-RP-US include redundant power supplies?

A: Yes. The -RP designation indicates redundant power supplies are built into the unit, providing PSU-level fault tolerance for continuous operation.

Q: What interface speed does the TL-R6020SEP-RP-US use?

A: The enclosure uses SAS 12Gbps, providing high-bandwidth connectivity to a compatible host NAS or server expansion card.

Q: How much raw storage capacity can the TL-R6020SEP-RP-US hold?

A: With sixty 3.5-inch bays, raw capacity depends on the drives installed. At 20TB per drive, maximum raw capacity reaches 1.2PB in a single chassis.

Q: What rack space does the TL-R6020SEP-RP-US require?

A: The unit occupies 4U of standard 19-inch rack space.

Ted Perry

The TL-R6020SEP-RP-US is one of the more practical answers to the petabyte storage problem in a single rack unit — sixty 3.5-inch SAS/SATA bays in 4U is a density ratio that keeps your cabling manageable and your SAS hop count low. I've seen deployments where teams try to hit the same capacity with stacked smaller enclosures and end up with a rats-nest of SAS cables and multiple expander points to troubleshoot. This unit consolidates that.

Technical Highlights:

• 60-Bay Density: Sixty drives in 4U means roughly 15 drives per rack unit — among the highest densities available in this form factor, which directly reduces rack real-estate cost at petabyte scale.
• SAS 12Gbps Backbone: 12Gbps SAS gives you the sequential throughput headroom to handle simultaneous writes from many drives without the interface becoming the bottleneck — relevant for high-channel surveillance recording or bulk data ingest pipelines.
• Redundant PSU: In a chassis holding sixty drives worth of data, a single PSU failure taking the array offline is an unacceptable risk. The built-in redundant power supplies in the TL-R6020SEP-RP-US eliminate that single point of failure at the enclosure level.

Deployment Considerations:

• Confirm your host NAS or server has a compatible SAS 12Gbps expansion card with sufficient port count before ordering — the enclosure is passive and requires a host to manage volumes, RAID configuration, and drive health monitoring.
• At sixty bays, drive procurement and RAID group planning need to happen before deployment, not after. Decide on your RAID level and spare policy upfront; rebuilding a large RAID set on a partially populated sixty-bay array takes time proportional to capacity.

This unit is best positioned for surveillance VMS backends, deep-archive media storage, or HPC scratch storage where a single operator needs petabyte-class raw capacity in a compact, manageable footprint without deploying multiple smaller enclosures.
