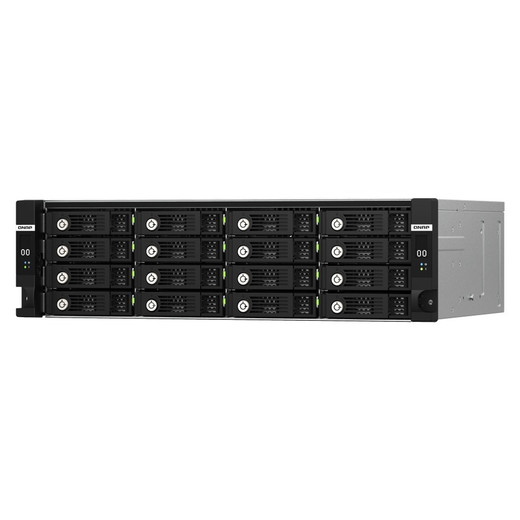

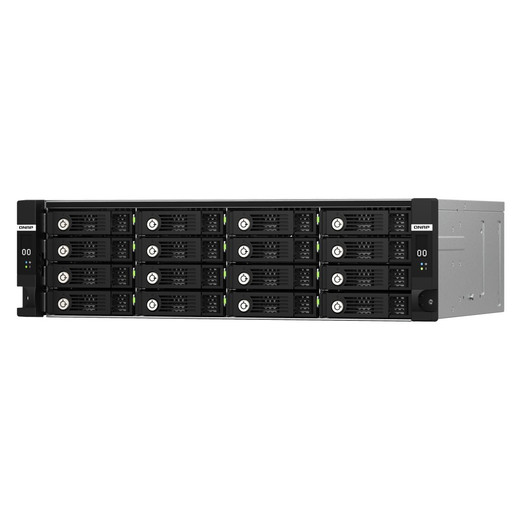

QNAP TL-R1620SDC-US 16-Bay Dual-Controller SAS 12Gbps JBOD Enclosure

Overview

The TL-R1620SDC-US is a 3U rackmount, 16-bay SAS 12Gbps JBOD storage expansion enclosure built for environments where raw capacity expansion and fault-tolerant controller architecture matter. Featuring a dual-controller design, an OLED status indicator, and a short-depth chassis, it is engineered to attach directly to QNAP dual-controller NAS systems or Windows PC/Server hosts — making it a serious option for large-scale storage expansion deployments that cannot tolerate a single controller failure taking down the shelf.

Key Features

• Dual Controller Architecture: Two independent controllers mean a single controller failure does not bring down your storage shelf. For production NAS environments or Windows Server deployments where unplanned downtime is unacceptable, this redundancy is the defining reason to choose this model over single-controller JBOD alternatives.
• SAS 12Gbps Host Interface: Each controller provides 3 x 12Gb/s SAS 3.0 wide ports (4-wide port) via Mini-SAS HD (SFF-8644) connectors — delivering up to 48Gb/s aggregate bandwidth per controller. This headroom matters when you are streaming large sequential workloads such as video surveillance recordings or backup jobs from multiple hosts simultaneously.
• 16 Hot-Swappable Drive Bays: All 16 bays are hot-swappable, so you can replace a failed drive without powering down the enclosure. In a 24/7 recording environment, this eliminates the maintenance window that would otherwise interrupt continuous capture.
• Short-Depth 3U Rackmount Design: The short-depth chassis fits in shallower rack enclosures and two-post racks that full-depth 3U units cannot accommodate — useful in edge deployments, IDF closets, or surveillance head-end racks where rack depth is a constraint.
• Broadcom SAS DataBolt Support: DataBolt technology enables bandwidth aggregation across SAS links, improving throughput utilization when connecting to hosts that support it — relevant for high-drive-count sequential workloads where link saturation would otherwise become the bottleneck.
• OLED Status Indicator: The front-panel OLED display surfaces enclosure status without requiring a host connection or management software session — useful during initial installation and troubleshooting in a rack environment where connecting a laptop to check status is inconvenient.
• Broad Host Compatibility: The TL-R1620SDC-US supports QNAP dual-controller NAS appliances and Windows PC/Server hosts, making it usable across mixed infrastructure without being locked to a single vendor's ecosystem. Check QNAP's compatibility list for validated host HBAs before purchasing.

Integration and Compatibility

Designed to pair with QNAP NAS enclosures that feature dual-controller support, the TL-R1620SDC-US connects via Mini-SAS HD (SFF-8644) cables — three wide ports per controller. Windows Server environments with a compatible SAS HBA can also deploy this unit directly. Confirm host HBA compatibility and cable specifications against QNAP's published compatibility documentation before commissioning. For environments requiring a storage capacity planning reference, drive selection and RAID policy are managed at the host level, not within the enclosure itself.

Frequently Asked Questions

Q: Does the TL-R1620SDC-US work with non-QNAP hosts?

A: Yes. In addition to QNAP dual-controller NAS systems, the TL-R1620SDC-US supports Windows PC and Server hosts equipped with a compatible SAS HBA. Verify HBA compatibility using QNAP's published compatibility list before deployment.

Q: What connector type is used for the host interface on the TL-R1620SDC-US?

A: Each controller uses Mini-SAS HD (SFF-8644) connectors — three 12Gb/s SAS 3.0 wide ports (4-wide port) per controller. Cables are not always included; confirm what is in the box before ordering.

Q: Are the drive bays hot-swappable on the TL-R1620SDC-US?

A: Yes, all 16 bays are hot-swappable, allowing drive replacement without powering down the enclosure or interrupting host operations.

Q: What is the purpose of the dual-controller design?

A: The dual controller provides redundancy at the controller level. If one controller fails, the other continues serving I/O — eliminating the single point of failure that exists in single-controller JBOD designs.

Q: What does the OLED indicator on the TL-R1620SDC-US display?

A: The front-panel OLED surfaces enclosure status information locally, without requiring a software management session — useful during installation and physical troubleshooting in the rack.

James Everett

The TL-R1620SDC-US earns its place in serious storage deployments specifically because of its dual-controller design — three 12Gb/s SAS 3.0 wide ports per controller means you are not staring down a single point of failure on the shelf-to-host path, which is the conversation that actually matters when you are expanding capacity on a production NAS cluster or a Windows Server environment running 24/7 workloads.

Technical Highlights:

• Dual Controller with 3 x SFF-8644 Ports Each: Up to 48Gb/s aggregate SAS bandwidth per controller. On a 16-bay shelf pushing large sequential video or backup streams, link saturation becomes the bottleneck before the drives do — this headroom keeps you out of that conversation.
• Hot-Swap on All 16 Bays: Drive replacement without downtime is table-stakes in any environment where the enclosure is recording or serving data continuously. Single-controller JBODs often offer the same, but without controller redundancy it is a partial solution.
• Broadcom SAS DataBolt Support: When connected to a DataBolt-capable host HBA, bandwidth aggregation across links improves throughput utilization at high drive counts — relevant specifically in multi-stream video surveillance or large backup windows.

Deployment Considerations:

• Cable planning matters here: three SFF-8644 wide ports per controller means you need to pre-plan your host HBA port count and cable runs before the unit arrives in the rack. Do not assume standard SAS cables are in the box.
• Host compatibility is not universal — the TL-R1620SDC-US is validated for QNAP dual-controller NAS and Windows Server; confirm your specific HBA model against QNAP's compatibility documentation before ordering, particularly for non-QNAP hosts.

This unit is the right call for a surveillance head-end or backup infrastructure build where a single-controller JBOD failure would mean unrecoverable recording gaps or data unavailability during a controller swap — the dual-controller architecture directly addresses that risk.
