Showing Results for Power & UPS
-
Altronix
SKU: T1656
Altronix T1656 16VAC 56VA Open Frame Transformer
16VAC 56VA open-frame transformer for access control systems
- Outputs 16VAC at 56VA — powers 3–5 card readers or multiple solenoid relays concurrently.
- Accepts 115VAC mains directly; no step-down conversion needed for North American installations.
- Open-frame design fits inside panels or wall boxes; lifetime warranty covers the full install life.
$74.19 $43.99 Save $30.20The item has been added -
Altronix
SKU: T1656C
Altronix T1656C 16VAC 56VA Open Frame Transformer
220VAC to 16VAC open frame transformer for security power distribution
- Converts 220VAC to stable 16VAC output to power door locks, readers, and control circuits.
- 56VA capacity handles multiple simultaneous low-voltage loads within a single distribution point.
- UL Listed open frame design integrates into enclosures for code-compliant security installations.
$168.10 $98.99 Save $69.11The item has been added -
Altronix
SKU: T1AXK3F2S
Altronix T1AXK3F2S 24VDC 6A Power Supply Charger
24VDC 6A power supply with integrated battery charger for security systems
$1,199.09 $702.99 Save $496.10The item has been added -
Altronix
SKU: T1AXK3F2SD
Altronix T1AXK3F2SD 24VDC 6A Power Supply Charger
24VDC 6A regulated supply with integrated battery charger
- Delivers regulated 24VDC at 6A continuous output for multi-device security deployments.
- Integrated battery charger eliminates separate charging circuits in access control or alarm panels.
- EFL overcurrent protection with auto-reset safeguards connected equipment from overload faults.
$1,199.09 $702.99 Save $496.10The item has been added -
Altronix
SKU: T1AXK3F4D
Altronix T1AXK3F4D 4-Output 24VDC 6A Power Supply
Four independent 24VDC outputs, 6A total, DIN-rail mount for security systems
- Four independent 24VDC outputs with PTC protection eliminate external fuses per channel.
- 6A aggregate output supports multiple access control readers, locks, and CCTV devices.
- DIN-rail mount fits standard electrical cabinets alongside control and networking modules.
$1,209.18 $708.99 Save $500.19The item has been added -
Altronix
SKU: T1AXK3F4PD
Altronix T1AXK3F4PD 12VDC 6A 4-Output Power Supply
12VDC 6A power supply with 4 independent outputs and battery charging
$953.92 $558.99 Save $394.93The item has been added -
Altronix
SKU: T1CVK3F4
Altronix T1CVK3F4 Dual-Voltage 6A Fused Power Supply
Dual-voltage 6A fused supply for security cabinets and access control
- Selectable 12/24VDC output lets you power legacy and modern devices from one unit.
- 6A max current supports multiple simultaneous loads in a single cabinet install.
- Individual fused outputs isolate circuit faults and prevent cascade failures.
$1,000.18 $585.99 Save $414.19The item has been added -
Altronix
SKU: T1DC3LCK1
Altronix T1DC3LCK1 4 door/Mercury Access and Power Integrat
4-door Mercury access control kit with integrated 115VAC power distribution
- Pre-wired for 4 doors, cutting multi-door installation time and wiring errors.
- Runs on 115VAC mains—no step-down transformer or power conditioning required.
- Lifetime warranty and factory fusing reduce long-term maintenance risk.
$1,492.49 $967.99 Save $524.50The item has been added -
Altronix
SKU: T1DC3LCK1D
Altronix T1DC3LCK1D Quad Output Power Supply Charger
Quad-output power supply with integrated battery charger for security systems
- Quad outputs enable independent power distribution across four security zones.
- Integrated battery charger maintains backup readiness without a separate charging unit.
- Lifetime warranty reduces long-term replacement risk in 24/7 security deployments.
$1,492.49 $972.99 Save $519.50The item has been added -
Altronix
SKU: T1DMK3F4
Altronix T1DMK3F4 4-Door Altronix/DMP Integration Kit
4-door access control kit with integrated power, battery backup, and supervised relays
- Controls 4 independent door points with supervised relay outputs per channel.
- Battery-backed eFlow6NB maintains access continuity during AC mains loss.
- Supports 12VDC and 24VDC devices via onboard VR6 voltage regulator.
$1,003.96 $721.99 Save $281.97The item has been added -
Altronix
SKU: T1KE34
Altronix T1KE34 Trove1 4-Door Access Power Kit
4-door access power kit with 115V input and fused protection
- Centralizes 12VDC power across four doors, reducing panel clutter and cable runs.
- Fused circuit protection on each door output isolates faults without dropping the system.
- Lifetime warranty and US manufacture support long-term ULX and KISI deployments.
$916.36 $656.99 Save $259.37The item has been added -
Altronix
SKU: T1KE34D
Altronix T1KE34D Trove1 4-Door Access Power Kit
Centralized power distribution for Trove1 4-door access systems at 115V AC
- Distributes power across 4 doors from a single 115V AC input, reducing panel wiring.
- Purpose-built for Trove1 ULX/KISI platforms, eliminating compatibility guesswork.
- Lifetime Limited Warranty covers the unit for the life of the installation.
$916.36 $656.99 Save $259.37The item has been added -
Altronix
SKU: T1KE34DV

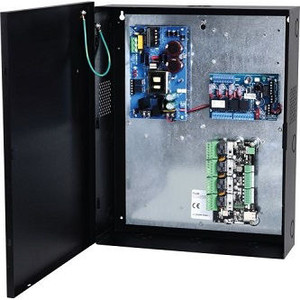

Altronix T1KE34DV 4-Door Access Power Integration Kit
4-door access power kit for TROVE1 ULX/KISI at 220V
- Supports 4-door access control at 220V within TROVE1 ULX/KISI installations.
- PTC functionality and pre-configured wiring eliminate custom power distribution work.
- Lifetime limited warranty reduces long-term replacement risk on installed hardware.
$916.36 $656.99 Save $259.37The item has been added -
Altronix
SKU: T1KE34V
Altronix T1KE34V Trove1 4-Door Access Power Kit 220V
4-door access power kit with 220V input and fused circuit protection
$916.36 $656.99 Save $259.37The item has been added -
Altronix
SKU: T1KE38
Altronix T1KE38 8-Door Access Control Integration Kit
8-door access control kit with Kisi cloud management and integrated power
- Controls 8 doors from one kit with 6A consolidated 12/24VDC power output.
- Supervised outputs detect lock, strike, or wiring faults across all 8 points.
- Battery backup maintains door control during power loss; lifetime warranty included.
$1,070.34 $767.99 Save $302.35The item has been added -
Altronix
SKU: T1KE38DV
Altronix T1KE38DV Trove1 8-Door Kisi Integration Kit 220V
8-door Kisi integration kit for Trove1 ULX at 220V
$1,070.34 $767.99 Save $302.35The item has been added
Power is the foundation of every surveillance, access-control, and network system. Centralized, supervised, battery-backed power keeps cameras recording, doors locking, and switches forwarding during outages and surge events. Choose components sized for your load — recorder UPS, camera supplies, PoE midspans, surge protection — and your system runs through the events that take down unmanaged installations.
Plan a Reliable Power System
- Sized power supplies — 12V or 24V DC sized to total device load plus 25% headroom for spin-up, aging, and expansion.
- UPS & battery backup — runtime sized to your outage profile, with managed shutdown for NVRs and access controllers.
- PoE budgets — 802.3af, at, and bt midspans/switches sized for total port load, not just per-port maximum.
- Surge protection & grounding — at the building entrance and at outdoor camera locations exposed to lightning.
- Distribution & redundancy — rack PDUs, DIN-rail supplies for industrial cabinets, and dual-source feeds for life-safety loads.
Shop by Category
UPS & Battery Backup
Rack-mount and tower UPS units sized to NVR, switch, and controller load — line-interactive and double-conversion topologies for clean recovery.
Power Supplies
12V DC and 24V DC supplies for camera and access-control panels — sized by current draw with 25% headroom for surge and expansion.
PoE Injectors & Midspans
802.3af, 802.3at, and 802.3bt midspans for legacy switches — 15W to 90W per port for PTZ cameras, displays, and high-power readers.
Rack Power Supplies
19-inch chassis with distributed outputs — PTC fused, supervised, and battery-backup ready for multi-camera or access-control deployments.
DIN Rail Power Supplies
Industrial DIN-rail supplies for control cabinets — wide-range AC input, redundant pairing, and temperature-rated for harsh environments.
Power Delivery & Supplies
Centralized distribution panels, surge protection, and grounding products for organized, code-compliant low-voltage installations.
Surge Protectors
Inline Ethernet, coax, and AC surge suppressors for outdoor cameras, antenna runs, and equipment-room protection — critical for rooftop and pole-mount installations.
Featured Brands
Altronix
Access-control and CCTV power — rack and wall enclosures, battery backup, and FACP-compatible supervised power.
Lifesafety Power
Networked supervised power for access control and fire — Mercury, LenelS2, and Genetec integrations.
NETGEAR
PoE+ and PoE++ switches and midspans with high port-count power budgets for camera and Wi-Fi deployments.
Ubiquiti
UniFi PoE switches with managed budget per port — strong fit for IT-managed surveillance VLANs.
Cradlepoint
Cellular failover routers with PoE and dual-SIM for branch-site continuity when WAN drops.
Transition Networks
Industrial PoE++ media converters and ruggedized switches for outdoor, transportation, and utility deployments.
Buyer FAQ
How do I size a UPS for my surveillance system?
Add up the wattage of every device on the UPS — recorder, switch, monitor, controller, and PoE budget for the cameras — then add 25% headroom for spin-up and aging. Multiply by your target runtime (typically 15–30 minutes for managed shutdown, 4–8 hours for site continuity) to pick a VA rating. Our team can review your bill of materials and recommend a model — submit details via the contact form.
What's the difference between PoE, PoE+, and PoE++?
PoE (802.3af) delivers up to 15.4W per port — fine for fixed-lens cameras and basic readers. PoE+ (802.3at) lifts that to 30W — covers PTZ heaters, IR illuminators, and most multi-sensor cameras. PoE++ (802.3bt Type 3/4) runs up to 60W or 90W per port for high-power thermal cameras, displays, and access-control controllers. Pick a switch or midspan whose total budget covers the sum of per-port loads, not just the per-port maximum.
Why use a midspan instead of a PoE switch?
When you have an existing non-PoE switch you want to keep, a midspan (PoE injector) adds power without replacing the switch. Midspans also help when you need to upgrade a few high-power ports (60W or 90W) without buying an entire 802.3bt switch.
Do I need surge protection on outdoor cameras?
Yes — outdoor Ethernet runs collect induced energy during nearby strikes even when the camera isn't directly hit. Inline PoE surge protectors at the camera (or at the building entry) clamp the spike and protect the recorder/switch. Critical for any pole-mount or rooftop deployment.
How do I plan power for an access-control system?
Each door typically needs 1–2A at 12V DC (controller + reader + lock + REX). Multiply by door count, then size a supervised power supply (Altronix, Lifesafety) with battery backup matched to UL 294 / NFPA 72 hold-up time for your jurisdiction. Our Senior Specialist team has working integrators who size these systems daily.
Need help sizing your system?
Our team includes working integrators who size camera-system power, PoE budgets, and access-control supplies daily. Send your bill of materials, recorder count, and target runtime — we'll recommend the right UPS, supply, and midspans before you order.
