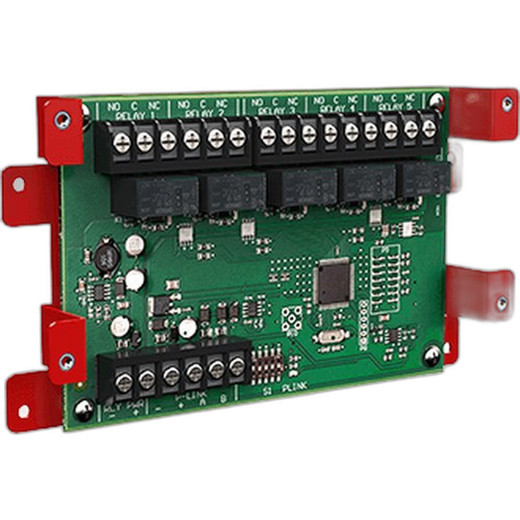

Potter RLY-5 Fire Alarm Relay Expander
Overview
The Potter RLY-5 is a dedicated relay expansion module for fire alarm control systems. If your existing fire alarm panel is running out of relay outputs for notification appliances, door release mechanisms, damper controls, or suppression system interfaces, the RLY-5 adds those outputs without requiring a panel upgrade or firmware reconfiguration. This is a pure relay expander — no microprocessor, no software dependencies — making it a straightforward integration into retrofit projects, multi-zone systems, and campus-wide deployments where integrators need predictable, field-proven relay expansion.
Key Features
- Dedicated relay expansion: Extends fire alarm signal distribution capacity so you can control more auxiliary devices from a single control panel without triggering a full system replacement.
- Compact modular form factor: Mounts directly inside control panel enclosures or in remote relay boxes, saving valuable cabinet real estate and simplifying wiring runs to distributed equipment.
- Standard fire alarm protocol compatibility: Integrates with Potter's established fire alarm architecture without panel firmware updates or system recalibration — a critical advantage in retrofit scenarios where you want zero downtime.
- Reliable relay switching for life-safety circuits: Relay contacts are rated for the full range of fire alarm auxiliary loads, from low-current notification signaling (solenoid pulls, horn circuits) to higher-current appliance control (dampers, suppression pumps).
- Low power consumption: Draws minimal current from the 24 VDC fire alarm supply, so it won't strain battery backup capacity in systems where emergency run-time is critical.
- Field-replaceable design: Module can be swapped out during maintenance or service without taking down the entire fire alarm system, reducing emergency response delays in retrofit or expansion work.
- Built-in protection against transient conditions: Engineered to maintain signal integrity in electrically noisy industrial environments; no external surge suppression required for standard fire alarm installations.
- Status indication for commissioning: Visual indicators aid in system verification during installation and ongoing diagnostics, so technicians can confirm relay operation without a multimeter.
Integration & Compatibility
The RLY-5 (often searched as RLY 5) is designed to work within Potter's fire alarm ecosystem. Standard 24 VDC fire alarm system power supplies supply the module directly. Relay outputs connect to auxiliary circuits controlling notification appliances, damper controls, door release mechanisms, and other life-safety devices. Because the RLY-5 is a passive relay expansion device, it requires no panel compatibility verification or software licensing. Integrators should confirm mounting location and relay load requirements before deployment, but there is no firmware or configuration dependency.
Physical Design & Installation
The RLY-5 uses a modular design supporting direct mounting inside control panel enclosures or in remote relay boxes. Compact footprint reduces panel clutter while maintaining accessibility for field service. DIN-rail mounting is supported, aligning with standardized control panel layouts. Wiring terminals follow industry labeling standards, and the module includes status indication to verify proper operation during commissioning and routine maintenance.
Operational Reliability
Fire alarm relay expanders operate continuously in standby and must maintain absolute signal integrity under fault conditions. The RLY-5 is engineered to meet UL and other applicable fire alarm standards, ensuring reliable relay operation under maximum load conditions and in electrically hostile environments. Relay contacts handle the full range of fire alarm auxiliary loads without external surge protection. This design simplicity — pure relay expansion without software or firmware dependencies — is what makes the RLY-5 a predictable choice for engineers managing large retrofit projects or multi-building deployments where long-term reliability and field serviceability matter.
When to Choose a Different Model
If your fire alarm control panel already has sufficient native relay outputs for your current system and you have no plans to add auxiliary devices in the future, relay expansion may not be necessary. Additionally, if your system requires advanced signaling protocols beyond standard fire alarm relay circuits, consult Potter's product family for specialized control modules. For integrators managing IP-based fire alarm networks or hybrid systems, confirm Potter's network-capable panel options before defaulting to passive relay expansion.
Frequently Asked Questions
Q: Can I install the RLY-5 without taking my fire alarm system offline?
A: Yes. Because the RLY-5 is a passive relay expander with no firmware or software integration, it can be wired and commissioned without panel reconfiguration or system restart. However, follow your local fire alarm installer requirements and jurisdiction for any outage notification obligations.
Q: What fire alarm control panels is the RLY-5 compatible with?
A: The RLY-5 is designed to work with Potter's established fire alarm control panel line. Verify specific panel compatibility with the manufacturer's compatibility matrix or your integrator before ordering, particularly in retrofit scenarios where panel model and vintage matter.
Q: What's the maximum relay load the RLY-5 can handle?
A: Relay contacts are rated for standard fire alarm auxiliary loads, including solenoid circuits, notification appliance circuits, and damper/suppression control circuits. Consult the product datasheet for specific current and voltage ratings by relay type.
Q: Does the RLY-5 require a separate power supply, or does it draw from the panel's 24 VDC supply?
A: The RLY-5 draws power directly from the panel's 24 VDC fire alarm supply. Low power consumption means it integrates into battery-backed systems without significantly reducing emergency run-time.
Q: Can the RLY-5 be mounted remotely, away from the main fire alarm panel?
A: Yes. The RLY-5 can be mounted in remote relay boxes, allowing you to distribute relay control closer to the devices being controlled. Standard wiring practices and conduit planning apply.
Q: Is the RLY-5 UL-listed for fire alarm applications?
A: The RLY-5 is engineered to meet UL and other applicable fire alarm standards. Verify UL listing status with the manufacturer or your distributor if regulatory documentation is required for your jurisdiction.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Potter RLY-5 in several retrofit projects where existing fire alarm panels had exhausted their native relay outputs. The module's straightforward design — pure relay expansion with no microprocessor, no firmware dependencies — is exactly what you want in a life-safety retrofit. No compatibility testing, no panel firmware updates, no software licensing surprises. You wire it, it works, and it stays working for decades.
Technical Highlights:
- Passive relay architecture: Zero software or firmware dependency means zero downtime risk during integration. The RLY-5 integrates with Potter's control panel line directly without recalibration or commissioning delays.
- 24 VDC direct draw from fire alarm supply: Low power consumption eliminates the need for auxiliary power supplies and won't degrade battery backup run-time on systems where emergency operation is mission-critical.
- UL-rated relay switching: Contacts handle the full range of fire alarm auxiliary loads — solenoid pulls, notification appliance circuits, damper controls, suppression system interfaces — without external surge suppression or conditioning.
- Field-replaceable modular design: If a relay fails, you swap the module without taking down the entire fire alarm system. That's a genuine operational advantage in multi-building campuses or complex retrofit scenarios.
Deployment Considerations:
- Retrofit projects with capacity constraints: If your existing panel is exhausted and a full panel replacement isn't budgeted or feasible, the RLY-5 buys you time and preserves capital. Calculate your future auxiliary device load before deploying so you don't underscore expansion.
- Multi-zone or campus-wide systems: Mount the RLY-5 remotely in satellite relay boxes to distribute control closer to dampers, door release mechanisms, or suppression system interlocks. This reduces long wiring runs and improves signal integrity in electrically noisy facilities.
- Battery backup considerations: Verify that the RLY-5's low power draw fits within your system's battery capacity calculations. Most retrofit projects see no impact, but large multi-relay expansions should be confirmed with your battery sizing engineer.
The Potter RLY-5 is the right choice for integrators managing fire alarm retrofit projects where system stability and field serviceability trump feature complexity. If you're expanding a proven installation and you want to avoid microprocessor-based expansion modules that demand compatibility testing and firmware management, the RLY-5's passive design delivers exactly what you need.
