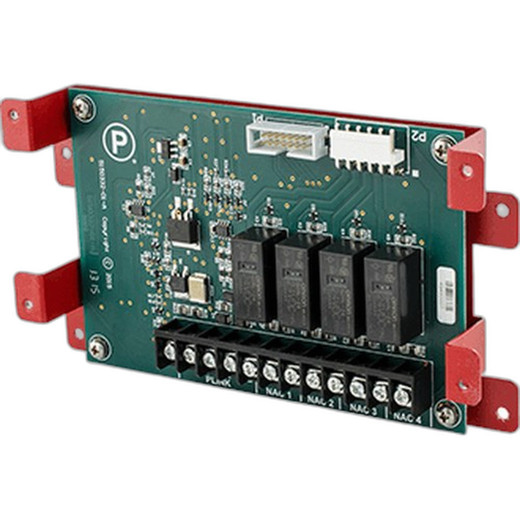

Potter CA-4064 Class A Expander Module
The Potter CA-4064 is a Class A expander module designed to extend the detection and control capabilities of Potter PFC-4064 fire alarm control panels. This expander allows integrators and facility managers to increase the number of addressable devices and detection zones beyond the base panel capacity, making it an essential component for larger buildings, multi-zone facilities, and retrofit installations requiring system scalability.
Overview
The CA-4064 expander is a dedicated expansion module that integrates seamlessly with Potter PFC-4064 series control panels. It operates on Class A (supervised) wiring architecture, providing the same two-way communication and fault-tolerant signaling as the primary panel. This design ensures continuity of operation even if one leg of the circuit is compromised, meeting critical fire safety standards for medium to large deployments. The CA-4064 is ideal for security integrators planning phased deployments or managing system growth in existing installations.
Key Features
- Class A supervised wiring architecture for fault-tolerant operation
- Seamless integration with Potter PFC-4064 fire alarm control panels
- Expandable detection zone and device capacity for multi-zone facilities
- Supports addressable device expansion without replacing primary panel
- Two-way communication protocol maintains system integrity across extended circuits
- Enables retrofit installations in buildings requiring capacity upgrades
- Modular design simplifies installation and commissioning
- Reduces total cost of ownership by allowing gradual system expansion
Integration & Compatibility
The CA-4064 module is specifically engineered for use with Potter PFC-4064 series control panels. It communicates via the panel's native signaling protocol and does not require additional gateways or translation devices. Installation integrates directly into the PFC-4064 architecture, allowing technicians to add detection zones and addressable devices using standard fire alarm device addressing and configuration procedures. The Class A circuit topology supports both inbound and outbound paths, meeting NFPA 72 requirements for resilient fire alarm signal transmission.
Typical Applications
The Potter CA-4064 is commonly deployed in multi-floor office buildings, healthcare facilities, industrial plants, data centers, and educational campuses where initial panel capacity proves insufficient for full site coverage. Integrators also use the CA-4064 in phased rollouts where early-stage installations require future expansion without panel replacement. Retrofit scenarios in existing structures often depend on the CA-4064 to add zones to previously installed PFC-4064 systems.
The CA-4064 (often searched as CA 4064) allows facility planners to design fire alarm systems that grow with operational needs, reducing the risk of overcapacity constraints and supporting long-term facility evolution without wholesale system replacement.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Potter CA-4064 expander on several mid-sized commercial projects where the base PFC-4064 panel capacity wasn't sufficient for complete coverage. The Class A architecture is a significant advantage in retrofit scenarios because it maintains signal integrity across longer runs without introducing single points of failure. The seamless compatibility means no translation layers or protocol converters—just native integration into the panel's existing detection tree.
Technical Highlights:
- Class A Supervision: Two-way, fault-tolerant wiring ensures alarm signals reach the panel even if one circuit path fails, critical for uninterrupted fire safety monitoring.
- Native Integration: The CA-4064 requires no additional gateways or external interfaces; it communicates directly with the PFC-4064 using the panel's native protocol.
Deployment Considerations:
- Plan circuit topology during design phase to maximize the Class A loop length and minimize future expansion needs.
- Verify PFC-4064 firmware compatibility before ordering; older panel versions may have addressing constraints that limit CA-4064 device capacity.
- Install the CA-4064 in the same controlled environment as the main panel to avoid temperature or humidity-related intermittent faults.
The CA-4064 is a straightforward, cost-effective way to add capacity without panel replacement. I recommend it for any PFC-4064 installation where you anticipate growth or need to add zones to an existing system. Its reliability record is strong, and field support from Potter is responsive.
