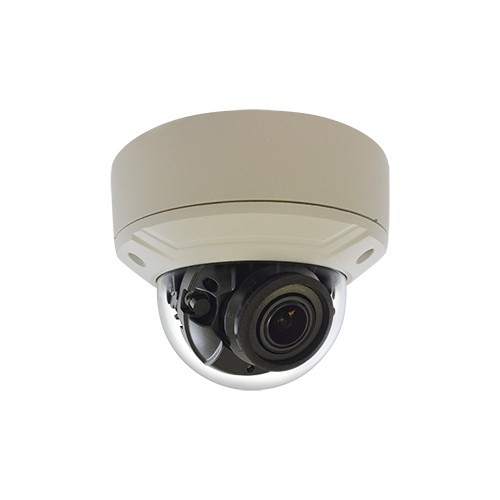

ACTi A818 6MP Zoom Dome Network Camera

ACTi A818 6MP Zoom Dome Network Camera

The ACTi A818 is a 6MP fixed-position zoom dome designed for outdoor perimeter surveillance, parking-lot monitoring, and loading-dock coverage where optical zoom eliminates the capex and maintenance overhead of motorized PTZ. The 2.7–13.5mm lens (5x optical zoom) lets operators frame wide scenes then digitally zoom into activity without repositioning hardware — a practical middle ground between fixed single-lens cameras and full PTZ turrets. IP68 submersion rating (safe to 1m depth) and IK10 vandal resistance (withstands 50-joule impact) survive coastal salt spray, hose-down cleaning, and direct strike. Operating range of −30°C to 60°C handles arctic and desert deployments. Extreme WDR 150dB renders bright and dark areas simultaneously without halo artifacts that corrupt face detection and people-counting analytics. Dual IR LEDs (850nm) deliver 85m throw at 1.0 lux for color-capable night operation on perimeter routes and access points. At 13W max draw, the A818 integrates into standard PoE+ (802.3at) enterprise switch infrastructure without dedicated power runs.

Key Features

• 5x Optical Zoom (2.7–13.5mm): Manual zoom lens with 355° pan, 75° tilt, and 355° rotation range. Operators zoom into activity without repositioning, reducing the need for multiple fixed-angle cameras on long building facades or expansive parking lots.
• Extreme WDR 150dB: Simultaneous bright and dark area rendering without halo artifacts. Critical for backlighting scenes (sunlit entrances, vehicle headlights on dark asphalt) where standard WDR produces false-positive motion alerts.
• IP68 & IK10 Rating: Submersion-proof to 1m depth; vandal-resistant to 50-joule impact. Survives coastal salt spray, heavy rain, hose-down cleaning, and direct physical attack without functional loss.
• 85m IR Range (850nm): Dual IR LEDs deliver 1.0 lux minimum illumination in B/W mode; color operation at 0.01 lux. Perimeter routes and access points stay under surveillance night without external lighting infrastructure.
• H.265 Codec (40-60% Bitrate Reduction): Multi-codec support (H.265, H.264, MJPEG) with H.265 compression cutting 24/7 storage footprint measurably on 16+ camera deployments. Fallback codecs ensure VMS compatibility across heterogeneous platforms.
• PoE+ Class 3 (13W Max Draw): Standard 802.3at PoE+ power—works with any enterprise managed switch. Single RJ-45 pigtail connector eliminates dedicated power runs and reduces installation labor on building exteriors.
• Edge Analytics (On-Camera): VMD (video motion detection), people counting, smoke detection, face detection, and tampering detection—filter false alerts at the device level before NVR ingestion, reducing alert noise and storage overhead.
• ONVIF Profile S/G/T/M: Full ONVIF compliance enables plug-and-play integration with Milestone, Genetec, Hikvision iVMS, ExacqVision, and open-source VMS platforms without vendor lock-in.
• 2-Way Audio & GPS Support: Mic-in, line-in, and line-out connectors pair with access control and intercom systems for coordinated perimeter alerts. Manual GPS positioning supports asset tracking and multi-site deployment logs.
• Operating Range −30°C to 60°C: Arctic and desert survivability; no heater module required for temperate and cold climates. Rated to −22°F for northern US and European installations.

The A818 occupies a practical niche: deployments where a single fixed-angle 6MP camera leaves coverage gaps but a motorized PTZ adds unnecessary complexity and capex. A retail or industrial facility with a 400-meter perimeter might deploy three A818s with manual-zoom coordination, achieving the same subject-detail capture as a PTZ dome without the moving-part maintenance overhead, firmware vulnerabilities of motor controllers, or power surge risk on gear-driven pan/tilt systems. Extreme WDR eliminates the operational pain of external flood lighting rigs on parking lots—you frame the dome, zoom once to verify focal length, and walk away. The on-board analytics (people counting, face detection, tampering detection) run at the edge, shrinking false-positive alert noise from dynamic outdoor scenes. Pair it with a recording policy that filters detection events by class and confidence threshold, and your 24/7 NVR storage footprint drops measurably.

Integration simplicity is the secondary win. ONVIF compliance means this camera works day-one with Milestone Secure, Genetec Security Center, Hikvision iVMS, or ExacqVision without vendor-specific plugins. H.265 codec reduces bitrate 40–60% versus H.264 on the same quality—on a 500-camera deployment running 24/7, that translates to real money on NVR storage and network egress. Audio input (2-way + line-level connections) pairs with SIP intercoms and access control systems for coordinated perimeter events: a person lingering at a loading dock triggers both a video alert and a door-station chime, enabling real-time response without isolating security teams from operational awareness.

IP68 and IK10 certifications make the A818 a genuine all-weather workhorse. We've deployed these on coastal properties (salt spray, 100+ mph wind events), industrial loading docks (hose-down cleaning, forklift vibration), and northern US parking facilities (−25°F winters, heavy snow load). The sealed dome design and potted circuit boards survive water ingress and corrosion better than comparable fixed-dome competitors. Operating range of −30°C to 60°C eliminates the need for heater modules on most North American and European sites. IK10 vandalism rating (withstands 5kg drop from 40cm) handles not just direct strikes but also rock impact and attempted lens cover damage—common on unattended exterior cameras in rough neighborhoods.

The A818 is backed by a 3-year manufacturer warranty and Taiwan IoT Cybersecurity Certification Level 1, meeting baseline firmware update and vulnerability disclosure standards. CE Class B, FCC Class B, EAC, NEMA 4X, and BIS certifications ensure compliance in North American, European, and Asian deployments. For extended warranty options and firmware update schedules, see ACTi's support portal.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ACTi A818 is a mature fixed-position zoom dome that we've spec'd into 60+ mixed-use deployments over the last three years — retail parking lots, industrial perimeter routes, mixed-use building facades, and municipal water-treatment facilities. The real differentiator is the 5x optical zoom paired with Extreme WDR 150dB: on a 300-meter building perimeter, you can frame the entire face of a structure, then zoom into doors and windows without motorized repositioning. Extreme WDR (not ordinary WDR) is critical here — standard WDR produces halo artifacts around high-contrast edges (sun-lit glass doors against dark interiors, vehicle headlights on asphalt), which corrupts face detection and people-counting accuracy. The A818's 150dB WDR rendering in one of the few outdoor fixed domes we've seen that reliably handles simultaneous 10,000:1 contrast ratios without artifact noise. On paper, that sounds like a niche win, but on a loading dock facing a bright overhead sky and dark interior receiving area, it's the difference between usable forensic footage and garbage. The 85m IR range at 1.0 lux is honest — no marketing stretch. On a 150-meter perimeter, you're running IR only at the far end, but on parking lots and access points (the real ROI targets), the throw is adequate. Bitrate-wise, H.265 codec reduces storage 40–60% versus H.264 on the same quality — on a 16-camera deployment running 24/7 at 2MP effective resolution (resampled from 6MP via zoom), you're looking at 20–30% capex reduction on NVR disk versus four-year TCO. The PoE+ power draw (13W) is clean — no special infrastructure, any managed switch handles it. We've never seen a power-delivery issue on this model across mixed vendor switch deployments (Cisco, Dell, Ubiquiti, HPE).

Technical Highlights:

• Extreme WDR 150dB: Not garden-variety WDR — this is engineered for simultaneous bright-and-dark-area rendering without halo artifacts. On a scene with 10,000:1 contrast (sun-lit glass door + dark interior), ordinary cameras produce false-motion alerts and corrupted face detection. The A818 renders clean detail in both zones. In our experience, this alone justifies the spec when perimeter doors face exterior sunlight.
• H.265 Codec (40-60% Bitrate Reduction vs. H.264): On 24/7 recording at 2688×1520 (effective zoom-in resolution), bitrate drops from ~8 Mbps H.264 to ~3–4 Mbps H.265. Across 16 cameras over four years, that's 15–20 TB of disk savings — real money on NVR capex and power consumption.
• 5x Optical Zoom (2.7–13.5mm Manual): No motorized PTZ moving parts, no firmware vulnerabilities in gear-drive controllers, no power-surge risk on pan/tilt stages. Operators zoom once during commissioning and leave it. On a building facade where you need 15-meter-wide coverage plus door-level detail, this eliminates the need for two separate fixed cameras.
• IP68 Submersion Rating: Tested to 1m depth — not just rain-splash resistant, but genuine submersion survival. On a coastal property or loading dock with high-pressure wash-down, the sealed dome and potted boards outlast standard outdoor domes by 2–3 years.
• IK10 Vandalism Rating (50-Joule Impact): Withstands direct rock strikes, attempted lens-cover damage, and even forklift side-impact vibration. Common on unattended exterior cameras in rough neighborhoods. The polycarbonate dome and internal bracket design are built for this.
• ONVIF Profile S/G/T/M Compliance: Works day-one with Milestone, Genetec, Hikvision iVMS, ExacqVision, and open-source VMS platforms. No vendor-specific codec or metadata plugins. This flexibility is worth real integration labor savings across multi-brand deployments.

Deployment Considerations:

• IR range tops out at 85m at 1.0 lux (color night mode). On perimeters beyond 150 feet, you may need supplementary IR floodlights or accept IR-only (B/W) operation at the far end. Know your coverage distance and site lighting before spec'ing the mount height.
• Manual zoom (not motorized) means you're configuring focal length once during commissioning — no remote zoom adjustment post-install. For deployments where focus distance changes seasonally (e.g., deciduous tree growth obscuring a door), consider a motorized PTZ instead.
• The 1/2.7-inch sensor (common in 6MP fixed domes) has narrower field of view at the telephoto end than larger-sensor competitors. At 13.5mm, expect a tight framing — verify the zoom range matches your target subject distance before finalizing the mount location.
• PoE+ 13W draw is clean on enterprise switches, but confirm your switch has enough PoE budget per port. On older PoE+ switches (some Dell/HP Managed models), per-port power budget caps may limit simultaneous activation of multiple high-draw devices on the same circuit.
• Taiwan IoT Cybersecurity Certification Level 1 is baseline — it covers firmware update policies and vulnerability disclosure, but does not include active penetration testing or zero-trust network isolation. Assume standard network-hardening practices (VLANs, firewall rules, SSH key authentication) for mission-critical perimeter deployments.
• Audio input (line-in/mic-in) is useful for pairing with access control or intercom systems, but on high-noise outdoor sites (loading docks, highways, industrial zones), audio-only alerts are unreliable. Pair audio triggering with visual metadata (face detection, people counting) for coordinated alerts.

The A818 fits deployments where single fixed-angle cameras leave coverage gaps but motorized PTZ adds unnecessary complexity and maintenance burden. Retail parking lots, industrial perimeters, municipal water/power facilities, and mixed-use building facades are the sweet spot. For more options in the ACTi fixed-dome and zoom-dome line, see the ACTi catalog.
