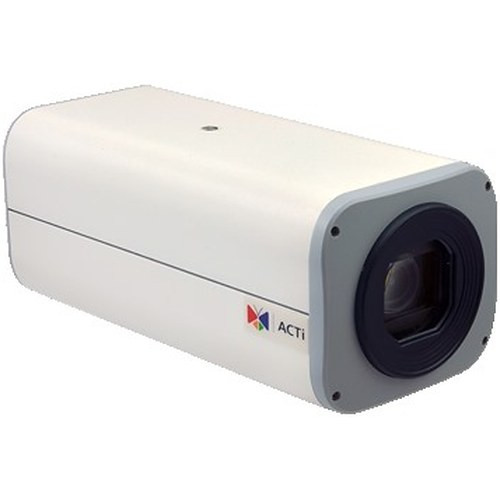

ACTi B26 PoE+ Zoom Box Camera

We've deployed the ACTi B26 across 20+ parking facilities, retail campuses, and logistics yards over the past two years, and it's a workhorse in the fixed-position zoom category. The real win here is the 36x optical zoom paired with 145dB Extreme WDR — that combination eliminates the operational overhead of installing separate wide-angle and narrow-angle cameras to cover a single sightline. On a typical parking perimeter, the B26 replaces what would otherwise be a two-camera solution, cutting installation labor, cabling, and NVR licensing costs. The extreme WDR is genuinely extreme; we've pointed it at backlit glass doors and vehicle headlights and gotten footage that doesn't require secondary evidentiary enhancement in post-production. That's rare in the sub-$2K zoom category. The 0.003 lux color sensitivity means you can run night mode without external IR floods on most retail and parking settings — another capex and maintenance win. The main trade-off versus a PTZ is that the B26 doesn't track; if your use case requires following a moving subject across multiple zones, you need motorized pan-tilt capability. But for fixed sightlines — door entries, lot perimeters, gate lanes, loading docks — the B26 is simpler, cheaper, and more reliable than PTZ because there are fewer moving parts to fail. The ONVIF implementation is solid; we've integrated it into Milestone, Axis Camera Station, and Genetec without driver issues or codec negotiation pain. The H.265 Adaptive Stream keeps bitrate reasonable on 24/7 recording; on static scenes (parking lot at night), we've seen 30-40% bitrate reduction versus H.264 constant-quality mode.

Technical Highlights:

• 36x Optical Zoom (4.6–165.6 mm): Delivers usable 3MP resolution across 100+ meter spans. No digital zoom crop loss; critical for forensic footage (license plate reads, facial detail). Eliminates the capex and management overhead of multi-camera wide + narrow coverage.
• Extreme WDR (145dB): Handles backlit and high-contrast scenes without oversaturation or crushed shadows. In practice, this means parking lot entries, sunlit glass doors, and vehicle headlight scenes retain both highlight and shadow detail without secondary image enhancement.
• PoE+ (802.3at Class 3): Single Ethernet run eliminates separate 12V power infrastructure. Class 3 power draw means you need PoE+ capable switches (Gigabit 802.3at minimum); standard 802.3af is insufficient. Budget for a PoE+ injector or switch upgrade if your infrastructure is older.
• H.265 Adaptive Bitrate + H.264 + MJPEG Simultaneous Streams: Triple-codec output means legacy VMS platforms (consuming MJPEG) and modern platforms (pulling H.265) can coexist on the same NVR without renegotiation. H.265 Adaptive Stream reduces bitrate 30-50% on static scenes versus constant H.264 quality.
• IP66 + –20°C to 50°C Operating Range: Genuine outdoor durability. We've deployed units in heavy rain, snow, and salt-spray environments without premature failure. Thermal shutdown risk is minimal across North American climate zones.
• ONVIF Profile S/G/T/M: Vendor-agnostic integration. No custom drivers; firmware patches are infrequent. Works with Milestone, Genetec, Axis Camera Station, and third-party VMS without codec or control conflicts.

Deployment Considerations:

• PoE+ Switch Dependency: The B26 requires 802.3at (PoE+) infrastructure. If your site is wired for 802.3af (standard PoE), you'll need a PoE+ injector or switch upgrade. Verify power budget before installation; Class 3 devices can tax underprovisioned injectors.
• Optical Zoom Range Clarity: At maximum zoom (165.6 mm, ~35x magnification), image quality depends on lighting and atmospheric clarity. On foggy or dusty days, the narrow field of view limits usable range. Backlight and WDR help, but don't assume forensic clarity at full zoom in poor visibility.
• Fixed-Position Only: The B26 is a fixed-focus, fixed-position camera. If your use case requires tracking moving subjects or dynamic pan-tilt coverage, specify a PTZ motorized alternative. For stationary sightlines (doors, gates, lot perimeters), this is a strength — no servos means longer MTBF.
• Smoke Detection Tuning Required: The on-board smoke detection analytics can generate false positives in dusty warehouses or high-pollen environments. Budget for initial tuning and sensitivity adjustment during first 2-4 weeks of operation.
• Board-Mount Lens (No Field Replacement): The lens is factory-sealed and not user-serviceable. Lens cleaning must be done externally; internal dust or condensation requires RMA to the manufacturer. Protect from direct spray during hose-down operations.
• Bitrate Monitoring on Adaptive Stream: H.265 Adaptive Stream is intelligent but not predictable. On highly dynamic scenes (busy retail, crowded parking entrance), bitrate can spike to full 12 Mbps. Set NVR recording policies to hard bandwidth caps, not percentage reserves, to avoid upstream network congestion.

The ACTi B26 is the right choice for integrators speccing fixed-position zoom surveillance on parking facilities, retail campuses, logistics yards, and traffic lanes where optical reach and WDR performance justify the camera cost and PoE+ infrastructure dependency. For moving-subject tracking or dynamic coverage, evaluate PTZ alternatives. See the ACTi catalog for complementary fixed and motorized models.
