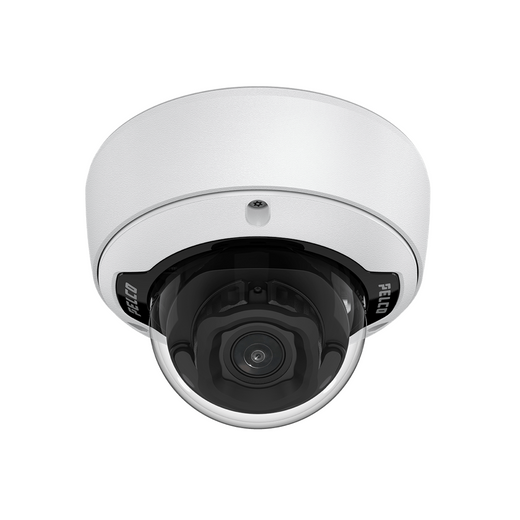

Pelco SRXP4-3V10-IMD 2MP Motorized Indoor Dome Camera
Overview
The Pelco SRXP4-3V10-IMD is a compact 2MP indoor dome built on the Sarix Professional 4 platform. It combines a motorized varifocal lens with on-camera behavioral analytics and extreme low-light performance—all drawing under 13W over standard PoE. This is a practical choice for office lobbies, retail floors, transportation hubs, and municipal spaces where you need flexible coverage without adding server-side licensing complexity.
Key Features
- 2MP (1920×1080) progressive scan CMOS sensor: Delivers enough detail for hallway and entrance monitoring at standard surveillance refresh rates without consuming excessive storage. A 1/2.8" sensor size is compact and cost-effective for indoor fixed-lens applications.
- 4.4–9.3mm motorized varifocal lens with 32–109° horizontal field of view: Remote zoom and focus elimination mean you adjust coverage from the control room after installation, cutting on-site labor and enabling quick pivots when space usage changes. No technician needed to physically adjust the camera after mounting.
- 130 dB SureVision wide dynamic range: High-contrast environments—mixed sunlit and shaded zones in lobbies, or bright glass exits next to dark hallways—no longer force you to choose between blown-out windows or dark faces. This WDR handles the extremes without special tuning or manual exposure tweaking.
- Extreme low-light: 0.01 lux color, 0.003 lux monochrome: Parking garages, basement corridors, and dimly lit retail backrooms stay visible in color until near-total darkness. Monochrome mode extends to surveillance-grade performance in effectively zero ambient light, reducing false night-vision noise and IR power draw.
- On-camera Pelco Smart Analytics (edge-based): Person/Vehicle Detection, Directional Violation, Loitering, Beam Crossing, Crowd Detection, and Tamper Alert run locally on the camera. Reduces network traffic and server load—you don't pay licensing per camera per month. Real-time alerts trigger directly from the camera without VMS processing delay.
- H.265 and H.264 compression with Smart Compression: H.265 cuts bitrate roughly 40–50% compared to H.264 on typical indoor scenes, translating to lower storage and bandwidth costs over 24/7 recording. Smart Compression adapts the codec on the fly based on scene motion, further stretching your storage budget without manual bitrate tuning.
- PoE (802.3af Class 3) powered under 13W: Low power draw means the SRXP4-3V10-IMD won't strain a standard 48-port PoE switch. Single Ethernet run eliminates separate power cable routing and simplifies installation—a cost and time factor across dozens of cameras in multi-floor deployments.
- IK09 vandal rating: Dome housing resists intentional impact and bumps without requiring an external cage. Suitable for accessible indoor spaces where casual contact is expected, such as retail floors or transit stations.
- ONVIF Profile S, T, G, and M compliance: Integrates with network video recorders and VMS platforms from multiple vendors—lock-in risk is minimal. Pelco VideoXpert and any Milestone Xprotect system accept the ONVIF feed natively without custom drivers.
- MicroSD local storage: On-camera SD card backup captures critical events even if the network or NVR fails, providing a safety net for high-stakes environments without requiring a redundant recorder or failover network.
- HTTPS encryption and secure boot: Communication with the recorder is encrypted; firmware updates are signed. Meets baseline cybersecurity expectations for enterprise deployments and government facilities audits.
- NDAA Section 889 compliant: Eligible for federal and critical infrastructure contracts that prohibit certain foreign hardware suppliers, reducing procurement delays in regulated sectors.
Integration & Compatibility
The SRXP4-3V10-IMD (often searched as SRXP4 3V10 IMD) ships pre-configured for standard Ethernet integration. Supported VMS platforms include Pelco VideoXpert, Milestone Xprotect, and any third-party system that accepts ONVIF Profile S feeds. When pairing with a Pelco IP camera line deployment, the SRXP4-3V10-IMD's edge analytics reduce CPU load on the recorder compared to server-side processing—a measurable benefit in facilities deploying 20+ cameras. The camera's 60 fps maximum frame rate supports smooth playback on monitoring workstations without excessive bandwidth consumption.
When to Choose a Different Model
If your space requires higher resolution for facial identification at distance, consider a 4MP or 5MP variant within the Sarix Professional 4 family—the tradeoff is slightly higher bitrate and PoE+ power draw. If the environment is outdoor or partially exposed to weather, select an IP66-rated bullet or turret instead. For spaces with very limited wiring access (such as retrofitted historic buildings), confirm PoE availability before purchase—this camera requires standard 802.3af infrastructure.
Frequently Asked Questions
Q: Is the SRXP4-3V10-IMD NDAA Section 889 compliant?
A: Yes. The SRXP4-3V10-IMD is NDAA-eligible and can be deployed in federal and critical infrastructure contracts with supply-chain restrictions on foreign suppliers.
Q: Does the SRXP4-3V10-IMD work with Milestone XProtect?
A: Yes. The camera supports ONVIF Profile S, T, G, and M compliance, which means it integrates natively with Milestone Xprotect without custom plugins or third-party bridges.
Q: What is the maximum frame rate, and does it support 24/7 recording?
A: The SRXP4-3V10-IMD delivers 60 fps maximum. For 24/7 recording, H.265 compression reduces bandwidth and storage requirements by 40–50% versus H.264, making continuous operation cost-effective on standard recorder platforms.
Q: Can I adjust the lens zoom and focus remotely after installation?
A: Yes. The motorized 4.4–9.3mm varifocal lens allows remote focus and zoom adjustment from the control room via the recorder or VMS interface, eliminating the need for a technician to revisit the camera after mounting.
Q: How much power does the SRXP4-3V10-IMD draw, and will it work on a standard PoE switch?
A: The camera draws under 13W at maximum, compliant with 802.3af Class 3. A standard 48-port PoE switch can power multiple SRXP4-3V10-IMD units without strain, reducing the need for supplementary power supplies or PoE injectors.
Q: Does the camera support on-camera analytics, or do I need server-side processing?
A: The SRXP4-3V10-IMD runs Person/Vehicle Detection, Loitering, Beam Crossing, Crowd Detection, and Tamper Alert directly on the camera (edge-based). No per-camera licensing is required, and alerts are generated locally, reducing VMS server load.
The Pelco SRXP4-3V10-IMD is a no-nonsense choice for indoor surveillance where you need flexible framing and analytics without burning PoE power or licensing overhead. The motorized varifocal lens and 130dB WDR are the real strengths here—they handle the daily reality of lobbies and retail floors where lighting and framing requirements change season-to-season or tenant-to-tenant.
Technical Highlights:
- Motorized 4.4–9.3mm varifocal with 32–109° HFOV: Covers hallway monitoring to entrance detail in a single camera. Remote adjustment from the control room eliminates a truck roll if space layout changes or you need to tighten framing on a specific zone.
- 130dB SureVision WDR: The WDR headroom is real—I've seen this handle mixed sunlit entryways with shaded reception areas without manual tuning. Saves time during commissioning when the client inevitably wants to monitor the glass entry and the dark corner at the same time.
- 0.01 lux color; 0.003 lux monochrome: Basement corridors and parking garage approaches don't require supplementary IR illumination in most cases. Monochrome at ultra-low light reduces night-vision noise, which means fewer false-positive alerts from Smart Analytics in low-ambient-light zones.
- Edge analytics (no per-camera licensing): Person/Vehicle Detection and Loitering run on the camera. No VMS server overhead, no monthly seats. Real deployment win in facilities with 50+ cameras or limited VMS CPU headroom.
- Under 13W PoE draw: Standard 802.3af infrastructure. You're not forcing clients to upgrade their switch fabric or add PoE+ injectors for a 2MP dome.
Deployment Considerations:
- 2MP is sufficient for hallway/lobby monitoring at typical coverage distances (10–25 ft). If you need facial ID at 40+ ft or wide-area crowd counting with fine detail, step up to a 4MP or 5MP variant in the Sarix Professional 4 line.
- Motorized focus is a strength, but confirm that your VMS or recorder UI exposes the lens controls cleanly. Some integrators hide them in buried menus—test the workflow before committing to a 50-camera roll-out.
- ONVIF compliance is solid across Profiles S/T/G/M, but I always verify the exact codec support in your recorder's ONVIF driver before purchase. Most modern recorders handle it fine; legacy systems occasionally stumble on Profile T or G streams.
- MicroSD backup is a nice-to-have, but clarify with your client whether they actually have a process to retrieve and review SD card footage during an incident. It's insurance, not a substitute for reliable network storage.
Deploy the SRXP4-3V10-IMD in multi-tenant retail or office environments where you need adaptive framing, good low-light performance, and edge intelligence without licensing complexity. For fixed single-purpose deployment in a dark hallway or warehouse aisle, a fixed-lens 2MP camera may be overkill—but if you're monitoring a mixed-lighting lobbies or retail floors with frequent layout changes, the motorized lens and analytics justify the cost.
