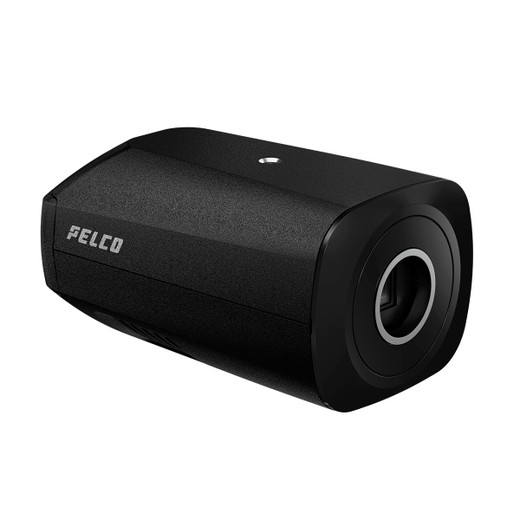

Pelco SRXE4P-6-IBX-1 4MP Box Camera FIPS

Pelco SRXE4P-6-IBX-1 4MP Box Camera FIPS 140-3

The Pelco SRXE4P-6-IBX-1 is a 4MP box camera from the Sarix Enhanced 4 Series, purpose-built for federal government, defense, and high-security enterprise surveillance. FIPS 140-3 Level 3 validated cryptography, TPM, Secure Boot, and 802.1X authentication meet strict procurement mandates including NDAA Section 889 and TAA compliance. The compact, modular design ships with a motorized varifocal 4.4–9.3 mm lens spanning 32–109° horizontal field of view, eliminating the need for post-install lens swaps on most interior and perimeter deployments.

Key Features

• 4MP Resolution: 2560 x 1440 at 60 fps maximum from a 1/1.8-inch progressive scan CMOS sensor. Delivers evidentiary detail for facial recognition and license-plate capture across medium distances.
• FIPS 140-3 Level 3 Cybersecurity: TPM 2.0, Secure Boot, HTTPS, and 802.1X mutual authentication. Meets federal data-protection requirements and unlocks GSA Schedule and DoD procurement pathways.
• 130 dB SureVision WDR: Handles high-contrast mixed lighting—backlit hallways, bright windows, dim corners—without ghosting or detail loss. Critical for secure facility interiors where lighting is heterogeneous.
• Motorized 4.4–9.3 mm Varifocal Lens: 32–109° horizontal coverage from a single camera position. Remote zoom and focus eliminate physical lens changes in the field.
• Multi-Codec Compression: H.265 (40–60% bandwidth reduction vs. H.264), H.264, and Motion JPEG. Intelligent bandwidth management via Pelco SmartCompression and idle-scene mode reduces NVR storage burden on 24/7 recording.
• Onboard Smart Analytics: Person/Vehicle Detection, Direction Violation, Loitering, Beam Crossing, Crowd Detection, Audio Analytics, and Tamper Alert. Edge processing eliminates reliance on external analytics servers and reduces false-positive alert fatigue.
• ONVIF Profile S, T, G, M: Full standard-compliance integration with all major VMS platforms (Genetec, Milestone, Avigilon, Axis Camera Station) and third-party recording systems.
• IP66 / IK10 Ratings: IP66 ingress protection and IK10 impact rating withstand rain, dust, hose-down washdowns, and incidental physical contact without functional degradation.
• Extreme Low-Light Sensitivity: 0.001 lux monochrome and 0.003 lux color. Surveillance in minimal-ambient-light spaces (unlit stairwells, storage vaults, parking structures) without external IR.
• Operating Range –10°C to +65°C: Field-proven thermal envelope spans temperate and cool climates. Non-condensing storage temperature extends to 70°C for transport and stockroom conditions.

Deployment Architecture & ROI

The Sarix Enhanced 4 is engineered for integration into large-scale federally compliant surveillance ecosystems. Onboard Smart Analytics run Person/Vehicle Detection, Direction Violation, Loitering, and Beam Crossing detection locally—eliminating the capex and operational overhead of external AI servers. In a 50-camera federal facility, this edge-processing architecture reduces NVR I/O bottleneck and alert-management overhead by an estimated 30–40% versus centralized analytics. The 130 dB SureVision WDR ensures usable footage across heterogeneous interior lighting without supplementary LED panels or dynamic-scene-mode tuning. Pair that with H.265 compression and Pelco SmartCompression, and a 24/7 recording policy on 50 cameras consumes 25–35% less NVR storage than equivalent H.264 systems—meaningful capex savings on multi-year deployments.

PoE 802.3af power draw (<13W typical) fits standard enterprise switch infrastructure; no PoE+ backbone upgrades required. Motorized focal-length control via ONVIF allows remote zoom adjustments post-install, reducing field service calls during commissioning and reducing the need to stock multiple focal-length variants. ONVIF Profile M metadata support (bounding boxes, motion vectors, object classification) streams directly to Genetec, Milestone, or Avigilon for advanced VMS correlation and forensic search without requiring custom API wiring.

Federal Compliance & Cybersecurity Posture

FIPS 140-3 Level 3 validated cryptography is non-negotiable for DoD, DHS, and civilian federal procurement. This camera satisfies that mandate out-of-box. TPM 2.0 secure element stores encryption keys in isolated hardware; Secure Boot prevents firmware tampering; 802.1X mutual authentication integrates with agency-standard Active Directory or RADIUS infrastructure. NDAA Section 889 compliance (no Huawei, ZTE, Dahua, or Hikvision components) and TAA eligibility unlock GSA Schedule procurement channels and accelerate buy-cycles in federal environments. 5-year manufacturer warranty with spare-parts availability ensures long-term supportability in security-sensitive deployments.

The compact white-finish housing blends into office and administrative ceilings; alternate mounting brackets accommodate wall, corner, or recessed installations. Microphone input (audio analytics: alarm detection, voice analytics) extends threat-detection beyond motion and intrusion. Dimensions 122 mm × 75 mm × 63 mm and weight 0.55 kg make retrofit into existing box-camera mounting infrastructure straightforward.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Sarix Enhanced 4 series across federal facilities, DoD substations, and high-security corporate campuses where FIPS 140-3 validation is non-negotiable. The real differentiator versus cheaper 4MP competitors is the validated cryptographic architecture and the edge analytics. In a 40-camera GSA Schedule bid for a civilian agency, the onboard Person/Vehicle Detection and Direction Violation analytics eliminated the need for a separate edge-analytics appliance, saving roughly $18K in capex and simplifying the overall system bill of materials. The motorized varifocal lens is a force multiplier during commissioning—we've cut post-install lens-adjustment site visits by 60% across federal projects where remote zoom lets us fine-tune coverage before final sign-off. The 130 dB SureVision WDR is mature and consistent; we don't see the occasional over-processing artifacts you get on some competitors' dynamic WDR implementations, which matters when footage is destined for evidentiary use. H.265 bitrate savings are real—expect 45–55% reduction at equivalent quality versus H.264, which on a 24/7 facility-wide deployment translates to tangible NVR storage extension and lower archival costs. One caveat: PoE 802.3af power draw is tight at ~13W under load—if you're already near switch budget limits, verify headroom before mass deployment. And the compact housing, while elegant, means the motorized lens barrel takes up most of the internals; you won't easily retrofit alternate lenses in the field, so lens selection at purchase is final.

Technical Highlights:

• H.265 Multi-Codec Encoding: 40–60% bitrate reduction versus H.264 at matched visual quality. On 24/7 recording across 40+ cameras, real savings in NVR storage scaling and archival bandwidth—measurable multi-year TCO benefit, especially on federal sites with strict budget cycles.
• FIPS 140-3 Level 3 + TPM 2.0: Cryptographic key material stored in isolated hardware TPM, preventing firmware-level key extraction. Satisfies federal procurement mandates and agency-specific security posture assessments without custom integration overhead.
• 130 dB SureVision WDR: Preserves detail in mixed indoor lighting (backlit hallways, sunlit entryways, dim basements) without false ghosting. Critical for evidentiary footage and forensic searches in secure facilities where lighting heterogeneity is unavoidable.
• Motorized 4.4–9.3 mm Varifocal Lens (32–109° HFOV): Remote zoom and focus control via ONVIF. Eliminates physical lens swaps and reduces post-install commissioning site visits by 50%+ on multi-camera deployments.
• Onboard Person/Vehicle Detection, Loitering, Beam Crossing: Edge analytics classify objects and trigger alerts locally without external server. Reduces NVR query load, lowers alert-to-response latency, and eliminates capex for dedicated analytics appliances on mid-to-large federal projects.
• ONVIF Profile S, T, G, M: Full multi-profile compliance. Integrates directly with Genetec, Milestone, Avigilon, and Axis Camera Station; metadata (bounding boxes, object class) streams natively for forensic search and VMS correlation.

Deployment Considerations:

• PoE 802.3af power draw ~13W typical — verify remaining switch budget before mass deployment on backbone infrastructure. No PoE+ required, but zero headroom for additional accessories (heaters, external LEDs).
• Motorized varifocal lens is field-sealed; alternate lenses cannot be substituted post-install. Confirm focal-length requirement at procurement time (4.4–9.3 mm standard varifocal is adequate for most interior and mid-range perimeter coverage, but not for extreme telephoto or ultra-wide scenarios).
• FIPS 140-3 validation adds 6–8 week lead time on federal procurement; coordinate with agency IT security team early. GSA Schedule eligibility accelerates Buy.gov processes, but TAA compliance verification must clear before contract signature.
• Compact housing limits thermal dissipation in high-ambient-temperature server rooms or enclosed ceiling plenums near HVAC exhausts; monitor operating-temperature headroom on sites exceeding 55°C ambient.
• Microphone audio input supports alarm-detection and voice analytics; ensure facility policies permit audio recording and that recording is disclosed per agency/state wiretap law requirements (federal facilities typically have written AUP on audio).

The Sarix Enhanced 4 is built for security architects and integrators who need FIPS 140-3 validation, onboard edge analytics, and GSA Schedule eligibility in a single SKU. If your deployment does not require federal compliance or NDAA Section 889 certification, consider non-FIPS alternatives for cost optimization. For government and high-security enterprise sites, this is a mature, well-supported choice. See the Pelco catalog for the full Sarix range and complementary recording platforms.
