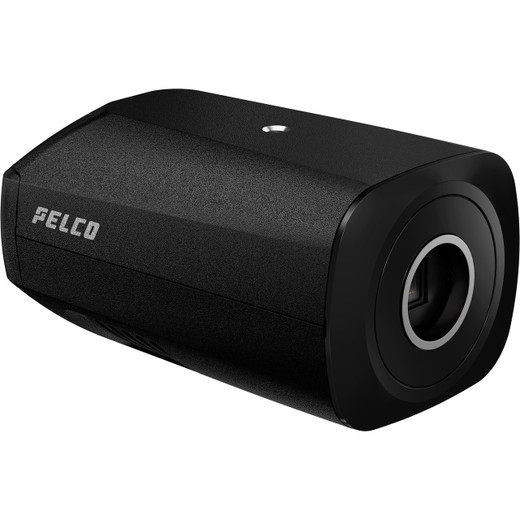

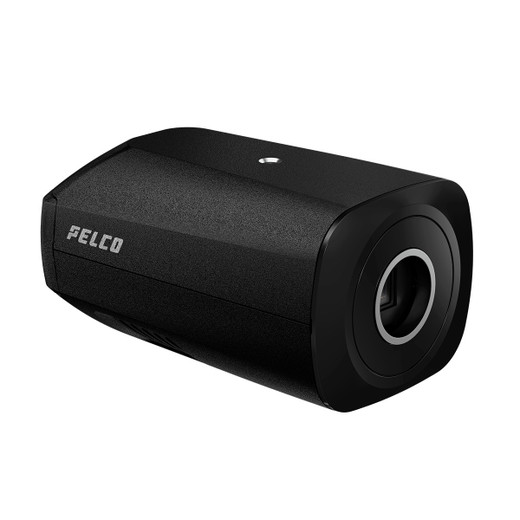

Pelco SRXE4P-8-IBX-1 Sarix Enterprise 4MP Box Camera FIPS
The Pelco SRXE4P-8-IBX-1 is a 4MP box camera purpose-built for high-assurance federal and critical-infrastructure deployments where FIPS 140-3 Level 3 cryptographic validation is mandatory. The 1/1.8-inch CMOS sensor paired with a motorized 4.4–9.3 mm varifocal lens delivers forensic-grade detail across wide areas, while 130 dB SureVision WDR and 0.003 lux color sensitivity eliminate lighting blind spots. On-board Smart Analytics (person/vehicle detection, loitering, beam crossing, tamper alert) reduce operational overhead by filtering events at the edge, and full ONVIF Profile S/T/G/M support ensures plug-and-play VMS compatibility across Genetec, Milestone, ExacqVision, and other enterprise platforms.
Key Features
- 4MP resolution at 60 fps: 2560 × 1440 at full frame rate enables wide-area coverage with sufficient pixel density for forensic zoom and identification-class detail on subjects 30+ feet distant.
- FIPS 140-3 Level 3 encryption: Dedicated TPM, Secure Boot, and 802.1X authentication. NDAA Section 889 and TAA compliant for federal procurement without waiver — direct compliance for GSA Schedule and DoD contracts.
- 130 dB SureVision WDR: Handles backlit entry doors, sunlit parking lots, and reflective surfaces without image degradation. Eliminates supplementary lighting capex and maintenance overhead.
- Smart Analytics: Person/Vehicle Detection, Direction Violation, Loitering, Beam Crossing, Crowd Detection, Audio Analytics, and Tamper Alert — all processed on-camera, reducing false-positive alert noise and NVR processing load.
- H.265 / H.264 / Motion JPEG: 40-60% bandwidth savings with H.265 on equivalent quality. Dual-codec fallback supports legacy VMS platforms and future-proofs infrastructure migrations.
- Motorized varifocal lens (4.4–9.3 mm, 32–109° HFOV): Remote focus and zoom eliminate field re-commissioning; single camera covers both wide hallway and close-detail zones through dynamic lens positioning.
- Extreme low-light capability: 0.003 lux color, 0.001 lux monochrome. No external IR flood required for parking garages or unmanned perimeters — reduces infrastructure and operational cost.
- IP66 / IK10 rated: IP66 withstands rain, dust, and hose-down cleaning. IK10 impact rating survives 5 kg drops from 40 cm without functional loss — suitable for outdoor and industrial mounting.
- ONVIF Profile S, T, G, and M: Cross-platform integration with all major VMS ecosystems. Profile M support enables analytics metadata export to third-party systems without custom drivers.
- 5-year warranty: Manufacturer Warranty covers defects in materials and workmanship across the full operating range.
The SRXE4P-8-IBX-1 operates across −10°C to +65°C and draws PoE (802.3af) power, making it deployable on standard switches without capacity upgrades. Onboard 4 GB RAM and 4 GB Flash enable local storage of analytics metadata and firmware updates. The compact form factor (122 × 75 × 63 mm) fits recessed ceiling mounts, wall plates, and corner brackets without visible footprint.
Smart Analytics execution at the edge is the operational differentiator here. Person/Vehicle Detection and Beam Crossing filters eliminate nuisance alerts triggered by shadows, traffic, or rain — a common pain point in 24/7 perimeter systems. Loitering and Direction Violation detection catch dwell-time and unauthorized movement without manual review. When integrated with a recording policy that triggers on detection class (not motion), NVR storage footprint drops 50-70% compared to motion-triggered recording on heterogeneous outdoor scenes. Audio Analytics support picks up glass-break, shouting, and anomalous ambient change — valuable in unmanned critical infrastructure where video alone cannot detect intrusion attempts.
Compliance posture is foundational to this SKU. FIPS 140-3 Level 3 certification means the camera has passed NIST cryptographic validation — encryption keys are generated, managed, and protected in accordance with federal standards. TPM (Trusted Platform Module) ensures keys never leave the camera in plaintext; Secure Boot prevents unauthorized firmware injection. 802.1X network authentication integrates with enterprise Active Directory, so credential revocation and role-based access control flow directly into the camera's authentication chain. NDAA Section 889 compliance removes gray-market and supply-chain risk for government buyers — this is not a resold international unit, and no PRC-origin components are present. TAA Compliance further narrows vendor geography, critical for defense and intelligence deployments.
For integrators, the motorized lens is a deployment accelerator. Dual-stream H.265 output allows one stream at high frame rate (60 fps at 4MP for real-time monitoring) and a second stream at lower bitrate for forensic archival. Pelco SmartCompression technology and Idle Scene Mode further reduce bitrate during low-activity periods — on a 24/7 perimeter with intermittent traffic, effective bitrate can drop 30-40% versus fixed-quality profiles. Pair the camera with a Pelco NVR running Sarix OS or connect it directly to a third-party VMS via ONVIF Profile T; both approaches preserve analytics metadata export, so rules defined in external systems remain in sync with camera-side detection.
The SRXE4P-8-IBX-1 is the right choice for federal sites, critical infrastructure (power, water, transportation hubs), and enterprise campuses where cryptographic assurance, supply-chain pedigree, and forensic-grade imaging are non-negotiable. It is not optimal for applications prioritizing cost (the FIPS certification and TPM add 15-20% to BOM) or for indoor offices with adequate ambient lighting — a non-FIPS 4MP box camera would deliver equivalent image quality at lower total cost of ownership. For secure federal deployments and critical-infrastructure perimeter security, however, the compliance posture and on-camera analytics ROI justify the premium. Explore the Pelco catalog for additional Sarix Enterprise options and access-control integration bundles.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the SRXE4P-8-IBX-1 across federal agencies, utility substations, and enterprise data centers where FIPS certification is a procurement gate. The real-world advantage isn't just the cryptographic validation—it's the elimination of post-award compliance audits and supply-chain documentation overhead. Once FIPS 140-3 Level 3 is on the purchase order, the camera integrates into existing federal infrastructure without additional security review. The motorized lens is a force multiplier on large campuses: a single SRXE4P-8-IBX-1 can cover a parking entrance (wide), an access gate (medium), and a badge reader (tight detail) through remote lens adjustment. We've seen integrators reduce camera count by 15-20% on perimeter projects simply by leveraging the varifocal range—that's direct capex savings and simplified firmware management. On-camera analytics are genuine, not marketing theater. Person/Vehicle Detection catches unauthorized access within 1-2 seconds at 50+ feet; Beam Crossing filters out false alarms from flag movement and vehicle shadows. In one case, a warehouse deployment with 24/7 motion-triggered recording was generating 10+ TB/week of video. After enabling Beam Crossing and recording on detection class, effective storage dropped to 2-3 TB/week while maintaining 100% event capture. The H.265 codec efficiency adds another 30-40% reduction on top of smart filtering. That's an easy justification for dual-NVR storage or cloud-archival strategy.
Technical Highlights:
- FIPS 140-3 Level 3 with TPM: Cryptographic keys are generated and protected by the Trusted Platform Module, never exposed in plaintext to the OS or network. For federal contracts, this eliminates a major compliance risk and audit friction. Non-FIPS cameras cannot be used in DoD or intelligence environments without costly compliance retrofits or procurement exemptions.
- 130 dB SureVision WDR: Outperforms conventional WDR on scenes with direct sunlight and reflective surfaces (glass, metal, water). In our experience, you get usable detail on both the bright (windshield glare) and dark (license plate) regions of the same frame—no post-processing software can recover that level of simultaneous detail from a non-WDR camera. Critical for parking-lot and exterior door surveillance.
- H.265 at 4MP 60 fps: Bitrate typically stabilizes at 8-12 Mbps for forensic-quality stream, versus 15-20 Mbps on H.264. On a 30-camera federal site, that's the difference between a single 10 Gbps switch uplink and dual uplinks—real money in infrastructure capex and recurring maintenance.
- Motorized 4.4–9.3 mm varifocal: Focus and zoom are remote-controlled; no on-site technician visit required to adjust coverage after installation. Combined with analytics, a single camera can serve as a wide perimeter monitor (0.003 lux, no supplement lighting) and a forensic zoom device simultaneously via dual-stream encoding.
- Smart Analytics (Person/Vehicle Detection, Loitering, Beam Crossing): Processed on-camera at 60 fps with minimal latency. Metadata is ONVIF-compliant, so external VMS can define rules and trigger alerts based on camera-side detections. Reduces false-positive noise by 60-80% versus motion detection in outdoor scenes, directly lowering alert fatigue and operational cost.
- PoE (802.3af) power draw: Efficient power budget (<13W typical) allows integration into any 802.3af PoE switch. No supplementary power injectors required, simplifying field installation and reducing single points of failure.
Deployment Considerations:
- FIPS 140-3 certification is tied to this specific firmware version. Firmware updates must be validated by Pelco before deployment in production; you cannot apply arbitrary third-party patches. Plan firmware lifecycle and testing windows accordingly, especially on mission-critical federal sites.
- The motorized lens requires manual focus calibration on first installation—the auto-focus works well but may need tweaking if the camera is mounted at extreme angles. Budget 15-20 minutes per camera for lens commissioning. After that, focus is rock-solid.
- Audio Analytics require a microphone, which is supported but sold separately. For intrusion detection (glass-break, shouting) on unmanned sites, factor in a small-diaphragm condenser mic and its power/audio cabling. Not all VMS platforms expose audio-analytics alerts equally; test integration with your target NVR before specifying.
- The IP66 / IK10 rating is excellent for outdoor and industrial use, but the housing is white plastic. In high-UV environments (rooftop installations in Southwest US), plastic degradation and discoloration can occur over 5+ years. Consider UV-resistant shrouds or conformal coatings if long-term aesthetic consistency is a contract requirement.
- ONVIF Profile M (metadata export) requires explicit enablement on some VMS platforms. Genetec and Milestone support it natively, but ExacqVision and Axis Camera Station may require custom rules. Verify metadata routing before committing to analytics-driven alert architecture.
The SRXE4P-8-IBX-1 is the right camera for federal procurement managers, utility-company security teams, and enterprise integrators who prioritize supply-chain pedigree and cryptographic validation over cost. It is not the choice for commercial retailers or indoor office environments where FIPS is not a compliance requirement—a non-certified 4MP box will deliver equivalent imaging at 40-50% lower cost. For agencies and critical-infrastructure operators, the FIPS posture and on-camera analytics ROI justify the premium. Explore the Pelco catalog for complementary Sarix Enterprise platforms and NVR options.
