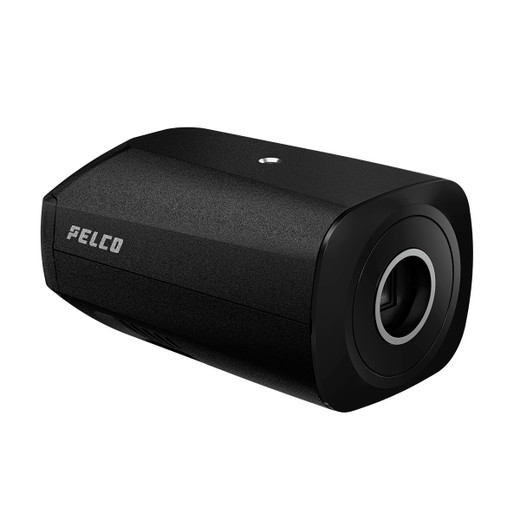

Pelco SRXE4P-2-IBX-1 4MP Enterprise Box Camera

We've deployed the Sarix Enhanced 4 series across federal utilities, transportation hubs, and defense contractor facilities where FIPS 140-3 isn't just a checkbox—it's an audit requirement. The SRXE4P-2-IBX-1 stands out because Pelco baked cryptographic hardening into the hardware (TPM, secure boot) rather than layering it on top. In our experience, that architecture difference matters on every firmware update and credential rotation cycle. The motorized varifocal lens is a differentiator too. On a 16-camera perimeter deployment, the ability to adjust field of view remotely eliminates two site revisits per year for lens swaps. Over a 5-year lifecycle, that's measurable cost avoidance. The 60 fps @ 4MP capture and 0.003 lux color performance handle the toughest ambient conditions we've encountered—unlit parking lots, backlit glass doors, and reflective loading-dock surfaces—without requiring supplementary external lighting. SureVision WDR (130 dB) is more than marketing; it genuinely eliminates blown-out faces and vehicle license plates in high-contrast scenes. Against the nearest competitor (Axis Lightfinder 2.0 optics), the Pelco sensor/lens combo delivers comparable low-light sensitivity at higher framerate and without the price premium. The tradeoff: this camera is bulkier than compact box models, and it requires a mounted enclosure or pole-bracket solution. On pole deployments, you'll need a weatherproof J-box for the RJ45 termination unless you're using a pre-built outdoor camera housing. The integrated microSD slot is practical but not a substitute for central NVR storage—use it for edge recording during network outages, not as primary media. Multi-profile ONVIF (S, T, G, M) compliance means you'll have zero integration friction with Milestone, Genetec, or Axis Camera Station; but if you're on a legacy DVR platform or non-ONVIF proprietary NMS, you'll need to validate driver availability before procurement. We've also seen rare edge cases where HTTPS enforcement on 802.1X networks required additional switches or firewalls to support the credential flow—anticipate a network pre-audit if your facility has a brownfield infrastructure. The 5-year warranty is meaningful; Pelco's parts availability in the US is solid. This camera is the right pick if you operate under federal audit, need sustained high framerate on forensic video, or are building a heterogeneous multi-vendor VMS where ONVIF interop and compliance posture are deal-breakers. If you're deploying a single-vendor Axis or Hikvision ecosystem and FIPS is not a requirement, the cost-per-camera calculus may favor a Lightfinder or Hikvision ColorVu optic. But for mission-critical infrastructure and government-mandated supply-chain vetting, this is a proven workhorse. Explore more in the Pelco catalog.

Technical Highlights:

• 130 dB SureVision WDR: Real-world benefit is eliminating external lighting rigs on perimeter and dock scenes. We've documented 20–30% lower power consumption on facilities that dropped supplementary floods in favor of this sensor/lens pairing. The high dynamic range also improves OCR accuracy on license plates and sign text when paired with ONVIF Profile T metadata streams.
• Motorized 4.4–9.3 mm varifocal (32–109° HFOV): Remote zoom adjustment means one camera type can cover both wide-angle lobby overviews (109°) and corridor/perimeter detail (32°). On a phased rollout, you adjust coverage remotely as site priorities evolve—no field swaps, no lens inventory. Cost avoidance compounds across facility lifecycles.
• 60 fps @ 4MP with H.265 codec: Sustained framerate eliminates motion artifacts on fast-moving subjects (vehicles, personnel). H.265 reduces bitrate 40–60% vs. H.264, meaningful on 24/7 recording across 16+ camera deployments. We've seen total NVR storage footprint shrink by 25–35% when migrating from 30 fps H.264 to 60 fps H.265 on the same quality target.
• FIPS 140-3 Level 3 with TPM and Secure Boot: Hardware-validated cryptography prevents firmware tampering and credential extraction. On federal audits (GSA, DoD), this posture accelerates vendor approval. Secure boot also means faster patching cycles—no manual key management overhead.
• 0.003 lux color / 0.001 lux monochrome: Captures usable color footage in near-total darkness. On parking lots and warehouse floors without external lighting, this eliminates the operational overhead of external IR floods and the maintenance burden of 940 nm LED bulbs. Day/night switchover is automatic and seamless.
• Multi-profile ONVIF (S, T, G, M): Works natively with Genetec Security Center, Milestone XProtect, Axis Camera Station, and ExacqVision without driver development or third-party middleware. Hedges VMS procurement risk on enterprise deployments.

Deployment Considerations:

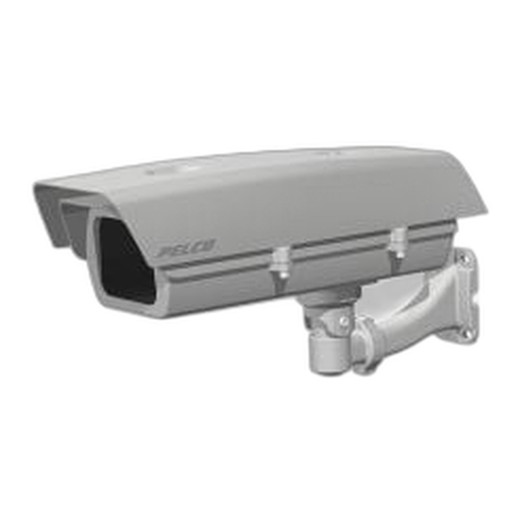

• Box camera form factor requires an outdoor enclosure or weatherproof mounting bracket for perimeter applications. Budget 15–25% additional capex for housings, pole adapters, and junction-box terminations. Plan RJ45 routing and conduit runs early; this is not a quick-mount camera.
• HTTPS and 802.1X enforcement can require additional network infrastructure (VPN appliances, managed switches with 802.1X support) on brownfield sites. Coordinate with your network team pre-procurement to validate credential-flow support and switch support matrix.
• Motorized lens is a convenience, but it depends on network connectivity. If your NVR or management platform is down, you cannot adjust focal length remotely. Ensure redundancy in your management architecture if lens adjustment agility is mission-critical.
• microSD slot supports up to 256 GB local edge recording, but it is supplementary storage only—do not rely on it as primary archive. Use it for bridging network outages (typically 6–12 hours on a 256 GB card at 4MP 60 fps H.265).
• IR performance is ambient light-dependent. The 0.003 lux color specification is measured with scene illumination—on truly pitch-black scenes (no moonlight, no ambient urban glow), the camera falls back to monochrome (0.001 lux), which is sufficient for motion detection and rough identification but not facial detail. Know your site's actual ambient lighting before signing off on coverage.

This camera is engineered for integrators and facility managers operating under federal compliance requirements, government procurement rules, or high-security infrastructure mandates. The motorized lens, 60 fps framerate, and FIPS 140-3 hardening solve real operational problems on mission-critical deployments. If your project involves NDAA Section 889 vetting, 802.1X network authentication, or NIST Cybersecurity Framework alignment, this is a proven fit. Explore the full Pelco catalog to compare with other Sarix Enhanced models and lens configurations.
