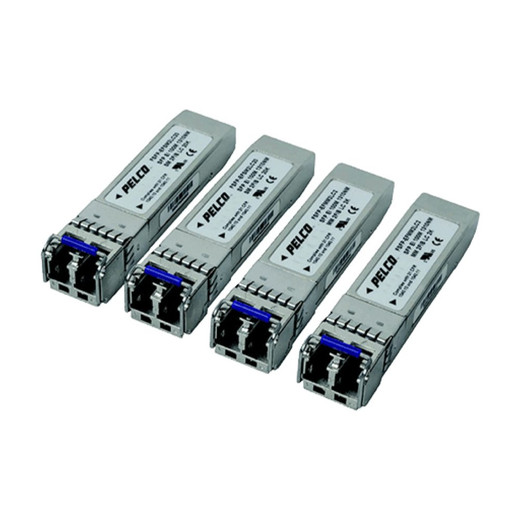

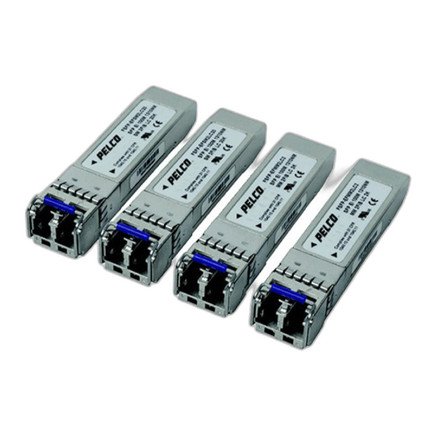

Pelco FSFP-BGSM1SC20 GbE WDM SFP Module 20km
The Pelco FSFP-BGSM1SC20 is a Gigabit Ethernet WDM SFP transceiver designed for long-distance, single-fiber communication in enterprise surveillance and security deployments. This B-side module operates at 1550 nm wavelength with SC simplex connector support, enabling up to 20 km transmission over standard single-mode fiber infrastructure.
Key Features
- Gigabit Ethernet (1 Gbps) WDM SFP transceiver module
- B-side operation at 1550 nm transmission wavelength
- SC simplex connector for legacy fiber compatibility
- Extended range up to 20 km on single-mode fiber
- Requires pairing with FSFP-AGSM1SC20 (A-side, 1310 nm) for full-duplex operation on one fiber strand
- 5-year manufacturer warranty
- NDAA Section 889 compliant for government and regulated installations
Technical Highlights
This SFP module delivers reliable gigabit performance over extended distances, making it ideal for connecting remote camera systems, network appliances, and distributed surveillance infrastructure. The WDM (Wavelength Division Multiplexing) design allows bidirectional communication on a single fiber strand when paired with the matching A-side transceiver, reducing fiber cabling requirements and infrastructure costs. SC simplex connectors ensure compatibility with existing legacy fiber installations commonly found in commercial and industrial environments.
Applications
Designed for professional security integrations, this module supports Pelco camera systems and enterprise surveillance deployments requiring extended fiber runs. Suitable for campus networks, industrial facilities, government installations, and applications where gigabit bandwidth and long-distance transmission are essential.
Ordering Notes
Always order as a matched A/B pair with the FSFP-AGSM1SC20 (A-side). For LC connectors, specify FSFP-BGSM1LC20. For Fast Ethernet (100 Mbps) requirements, consider the FSFP-BFSM1SC20 as a cost-effective alternative.
