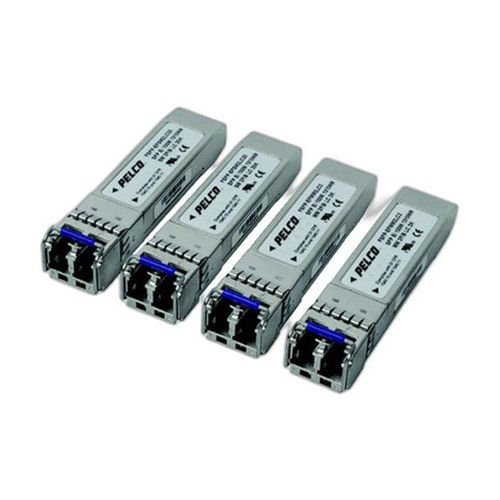

Pelco FSFP-BGSM1LC60 GbE WDM SFP Module

Pelco FSFP-BGSM1LC60 GbE WDM SFP Module

The Pelco FSFP-BGSM1LC60 is a Gigabit Ethernet WDM SFP transceiver designed for long-distance single-fiber deployment in professional surveillance and security networks. This B-side module transmits at 1550 nm wavelength over a single strand of single-mode fiber, achieving reliable communication up to 60 km with an LC simplex connector.

Key Features

• Gigabit Ethernet WDM SFP transceiver (B-side module)
• 60 km transmission distance over single-mode fiber
• 1550 nm wavelength for bidirectional communication
• LC simplex connector for modern fiber infrastructure
• Requires pairing with FSFP-AGSM1LC60 (A-side) for full-duplex operation
• Full 1 Gbps performance on one fiber strand
• NDAA Section 889 compliant for government projects
• 5-year warranty coverage

Technical Highlights

This WDM SFP module enables cost-effective long-distance fiber connectivity by utilizing wavelength division multiplexing, allowing bidirectional communication over a single fiber pair. The B-side configuration works exclusively as part of a matched A/B pair deployment. For installations requiring shorter distances under 20 km, the FSFP-BGSM1LC20 variant offers a lower-cost alternative.

Applications

Ideal for enterprise surveillance systems, campus networks, and critical infrastructure deployments where extended fiber runs are necessary. Fully compatible with Pelco camera systems and professional installation workflows. NDAA Section 889 compliance makes this module suitable for U.S. federal, state, and local government installations.
