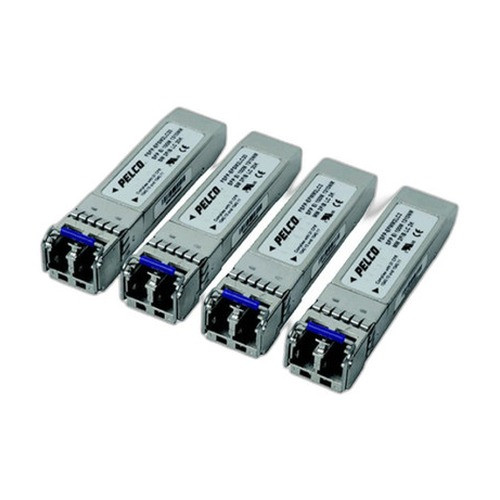

Pelco FSFP-AGSM1SC20 GbE WDM SFP Module

Pelco FSFP-AGSM1SC20 GbE WDM SFP Module

The Pelco FSFP-AGSM1SC20 is a Gigabit Ethernet WDM (wavelength-division multiplexing) SFP transceiver designed for long-distance single-fiber deployments in security and enterprise networks. Transmitting at 1310 nm over single-mode fiber with SC simplex connectors, this A-side module supports distances up to 20 km and must be paired with the FSFP-BGSM1SC20 B-side module (1550 nm TX) to achieve full-duplex 1 Gbps communication on a single fiber strand.

Key Features

• Gigabit Ethernet WDM SFP transceiver (A-side, 1310 nm)
• 20 km single-mode fiber range
• SC simplex connector for secure, reliable connections
• Full-duplex 1 Gbps on single fiber when paired with B-side module
• Reduces fiber infrastructure costs on campus and perimeter backbone runs
• NDAA Section 889 compliant for government and regulated installations
• 5-year warranty backed by Pelco's global support network

Technical Specifications

• Type: Fiber Media Converter / SFP Module
• Interface: SC simplex
• Wavelength: 1310 nm (transmit)
• Distance: Up to 20 km on single-mode fiber
• Speed: 1 Gbps (full-duplex with paired B-side)
• Part Number: FSFP-AGSM1SC20

Installation & Compatibility

Verify compatibility with your switch SFP slots and patch panel infrastructure before installation. For LC-connector environments, Pelco offers LC-based gigabit SFP variants. For Fast Ethernet (100 Mbps) applications, the FSFP-AFSM1SC20 provides a cost-effective alternative. This module integrates seamlessly with Pelco camera systems and enterprise surveillance deployments.
