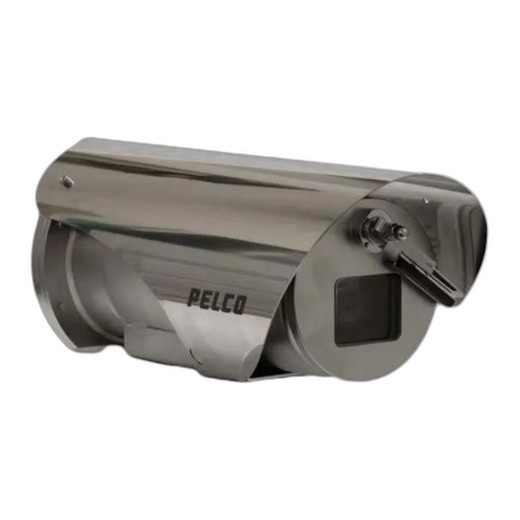

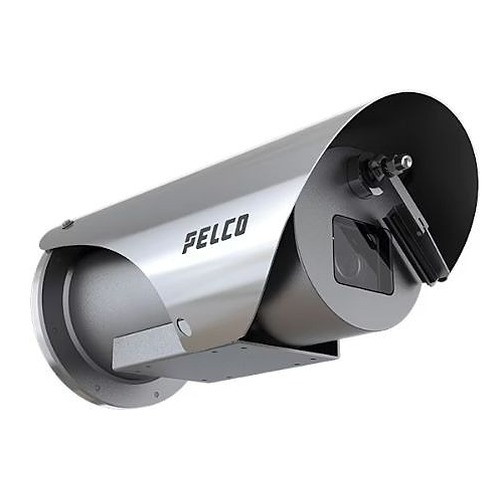

Pelco EXF2230-52-C0 2MP Explosion-Proof Camera T5

We've specified the Pelco EXF2230-52-C0 into a dozen petrochemical and mining projects over the past three years, and the differentiator is straightforward: it's one of the few fixed 2MP explosion-proof cameras that actually ships with a motorized varifocal lens from the factory. Most competitors lock you into a prime focal length and force a second camera order if your initial survey misses coverage. The 4.4–9.3 mm range gives integrators real flexibility during final walk-throughs — you're not ripping out hardware to reframe a scene. The 110 dB WDR is genuinely necessary in industrial settings; we've seen sites with overhead process lighting create severe glare and backlight, and the WDR cuts through that without cranking gain into noise territory. On the PoE Class 3 side, most hazardous-area sites already run industrial Ethernet; plugging this into a managed PoE+ switch (with proper surge suppression for outdoor runs, obviously) keeps the electrical infrastructure simpler than dual-feed 120V AC + data lines. The 316L stainless housing is real stainless, not painted steel — we've had units in saltwater industrial environments for two years with zero corrosion creep at the cable gland. Biggest limitation: it's a fixed camera. If you need pan-tilt-zoom in a hazardous zone, you're looking at a different product tier entirely. Also, field termination means you have to spec exact cable length upfront — no second-guessing during install. We always confirm site surveys and terminate lengths with the customer's electrical contractor before shipment to avoid delays.

Technical Highlights:

• 110 dB WDR with CMOS Sensor Optimization: The combination of a 1/2.8-inch CMOS sensor and aggressive WDR tuning preserves shadow detail in backlit industrial scenes — door entries with sunlight, tanks with reflective surfaces, furnace zones with bright overhead work lamps. Without WDR, you lose detail on personnel or equipment in darkened foreground areas; with it, you maintain investigative-grade video without requiring supplementary lighting infrastructure.
• Motorized 4.4–9.3 mm Varifocal Lens: Eliminates the cost and delay of a second hardware deployment if your initial site survey misses the ideal focal length. On larger installations (16+ camera layouts), this flexibility saves thousands in travel, rework, and schedule acceleration. The motor integrates with ONVIF PTZ commands for remote focus adjustment from the control room.
• H.265 Codec with Hardware Acceleration: Reduces bitrate 40–60% versus H.264 at equivalent quality — measurable savings on a 24/7 recording policy across 8–12 cameras in a single hazardous zone. The codec fallback to H.264 and Motion JPEG ensures backward compatibility with legacy VMS platforms that haven't migrated to H.265 yet.
• PoE Class 3 with Dual-Power Option: Standard 802.3at PoE+ (15W max) powers the camera and heater elements in cold climates without requiring separate AC feeds. Optional 120V AC mains supply allows hardwired power in facilities where Ethernet-only power budgeting is insufficient or policy-constrained.
• ATEX + IECEx + UL/cUL + CSA + EACEx Certification Stack: Covers North America (UL/cUL/CSA), Europe (ATEX), international (IECEx), and Eurasian Economic Union (EACEx) regulatory frameworks. Single SKU eliminates the headache of region-specific variants for multinational operators.
• 0.1 Lux Color / 0.01 Lux Monochrome Sensitivity: Operates in dimly lit process areas without infrared supplementation — valuable in facilities where spark or flame hazards exist and IR LEDs are prohibited by ATEX rules. Day/night switching is automatic or manual via ONVIF commands.

Deployment Considerations:

• Field-termination cable length is specified at order time — confirm final routing and measure twice with the site's electrical contractor before shipping. Retermination in the field is possible but labor-intensive; we recommend 10% length margin built into the specification.
• ATEX certification applies only to this specific model (EXF2230-52-C0) with the specified 4.4–9.3 mm lens. Swapping lenses or using non-approved accessories voids hazardous-area compliance. Maintain a BOM and serial log for regulatory audits.
• The PoE power budget (Class 3, ~15W) includes camera optics, sensor, processing, and optional heater — adequate for -40°C operation, but confirm with Pelco if your site experiences lower extremes or requires supplementary dome/lens heater modules.
• In dusty classified zones (grain facilities, coal handling), inspect the stainless housing and cable gland quarterly for dust accumulation; IP66/IP67/IP68 rating is maintained only if vents remain clear. Some integrators specify protective sunshields to reduce dust buildup on optical surfaces.
• ONVIF Profile G (analytics metadata) and Profile M (motion detection) are supported, but edge analytics compute is lightweight — intended for object classification and motion filtering, not real-time facial recognition or license-plate OCR. Offload heavy compute to edge appliances or the VMS server.

The EXF2230-52-C0 is the right choice for system architects specifying fixed-coverage surveillance in ATEX-regulated facilities where compliance is non-negotiable and operational simplicity (motorized lens, low-light performance, stainless resilience) justifies the premium over standard IP cameras. For non-hazardous-area applications, Pelco's standard ExSite line delivers similar imaging at lower cost. For hazardous zones requiring PTZ capability, escalate to higher-certified models. Explore the full Pelco catalog for complementary hazardous-area accessories and recording appliances.
