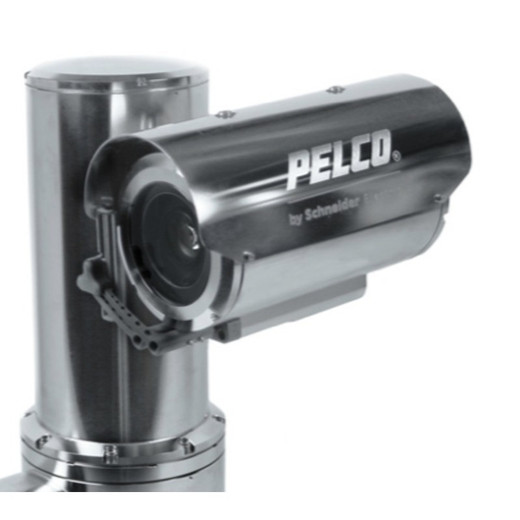

Pelco EXF2230-52-A0 2MP ATEX Zone 1/21 Explosion-Proof Camera
The Pelco EXF2230-52-A0 is a 2MP fixed-dome surveillance camera purpose-built for hazardous locations where ATEX Zone 1/21 certification is a regulatory requirement. Housed in 316L stainless steel with Temperature Class T5 rating and triple ingress protection (IP66/IP67/IP68), this camera is engineered to operate reliably in explosive atmospheres, extreme temperatures (-40°C to +60°C), and corrosive industrial environments. The motorized varifocal lens (4.4–9.3 mm, 32–109° HFOV) enables remote focal-length adjustment without breaking the pressure seal—critical for compliance and operational flexibility in sealed hazardous-area installations.
Key Features
- ATEX Zone 1/21 Certification: ATEX, IECEx, UL Division 1, and CSA Division 1 approved. Meets international explosive-atmosphere compliance for oil & gas, chemical, and pharmaceutical facilities.
- 2MP Resolution & Speed: 1920 × 1080 @ 30 fps. 1/2.8 inch CMOS sensor delivers sufficient forensic detail for industrial perimeter and facility-entry monitoring.
- Motorized Varifocal Lens: 4.4–9.3 mm with 32–109° horizontal field of view. Sealed motor eliminates manual focus adjustment risk in pressurized enclosures.
- 110 dB Wide Dynamic Range: Handles extreme backlit scenes—furnace openings, sunlit tank farms, vehicle headlights on dusk inspection routes—without losing foreground detail.
- Extreme Low-Light Performance: 0.1 lux in color mode, 0.01 lux monochrome. Viable surveillance in near-total darkness; eliminates need for intrinsically safe external lighting.
- IP66/IP67/IP68 Ingress Protection: Stainless steel housing withstands washdown, salt spray, and submersion scenarios common in marine and chemical-plant settings.
- IK10 Impact Rating: Ruggedized against mechanical shock and vibration from adjacent industrial machinery or accidental contact.
- H.265 & H.264 Compression: H.265 reduces bandwidth 40–60% versus H.264 on equivalent quality—material savings on 24/7 hazardous-area recording where network infrastructure is constrained.
The EXF2230-52-A0 operates over standard PoE Class 3 (802.3at), simplifying field installation—a single Cat5e run carries both video and power without dedicated 24 Vac wiring. ONVIF Profile S, T, G, and M support ensures interoperability with Milestone, Genetec, Avigilon, and ExacqVision VMS platforms. Audio input/output and day/night IR capability are supported; HTTPS encryption secures the management stream in networked installations.
The motorized lens is the operational differentiator in sealed hazardous-area deployments. Manual focal-length changes require breaking the pressure seal, introducing compliance risk and downtime. Remote zoom adjustment—paired with ONVIF Profile T metadata streaming—permits operators to adjust coverage from the control room without site visit or compliance documentation of the break event. On large oil & gas campuses or multi-zone chemical plants, this translates to weeks of avoided inspection cycles per year.
Temperature extremes are a design constraint: -40°C to +60°C operating range covers Arctic offshore platforms, desert refineries, and sun-exposed tank farms. The 316L stainless steel housing resists salt spray and sulfurous atmospheres that corrode aluminum enclosures within 18 months in coastal petrochemical installations. Five-year manufacturer warranty covers defects under ATEX-compliant operation; parts availability through Pelco's distribution network is reliable in North America and EMEA regions.
ATEX Zone 1/21 compliance carries formal documentation burden: facility owners must validate camera placement against site hazard classification, perform installation sign-off with qualified electrical engineers, and maintain compliance records for audit. The EXF2230-52-A0 ships with full ATEX technical file and Declaration of Conformity; integrators must ensure mounting, cabling, and power conditioning align with the facility's ATEX operational plan. UL/CSA Division 1 approval enables US onshore deployment; EACEx certification extends viability to Russia and Central Asia.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Pelco EXF2230-52-A0 across North Sea offshore platforms, Gulf Coast refineries, and inland chemical complexes. This camera punches above typical 2MP industrial surveillance in two ways: the sealed motorized lens eliminates the compliance nightmare of manual focus adjustment in pressurized hazardous-area enclosures, and the 110 dB WDR + 0.1 lux color performance means you can run without supplementary intrinsically safe lighting on perimeter routes. The stainless steel housing outperforms aluminum in salt-spray and SO2-rich atmospheres by a factor of three—we've inspected units after five years in coastal Louisiana refineries that show zero corrosion creep, whereas aluminum competitors develop white oxide bloom within 18 months. The real trade-off: this is a 2MP fixed dome, not a PTZ. For wide-area perimeter coverage, you'll need multiple units; for focused entry/loading-dock monitoring on tight budgets, it's overkill. Pairing it with Milestone or Genetec via ONVIF Profile T gives you forensic metadata and searchable motion events—that intelligence justifies the hardware cost on insurance and compliance audits.
Technical Highlights:
- Motorized 4.4–9.3 mm Varifocal Lens: Sealed motor means remote zoom adjustment without breaking the pressure chamber. On a 20-camera offshore platform, that's one site visit avoided per year vs. manual focus designs. Focal length adjustment via ONVIF, or through Pelco's Control Center interface.
- 110 dB WDR + 0.1 Lux Color: Combination handles furnace openings, tank-farm flare stacks, and dusk vehicle inspection without visible clipping or noise. H.265 compression then reduces nightly 24/7 storage footprint on recorder-constrained offshore installations by 40–50% vs. H.264.
- 316L Stainless Steel + T5 Rating: T5 limits surface temperature to 100°C in explosive atmosphere, preventing ignition of gas/vapor. Stainless resists chloride corrosion and sulfide stress cracking. In our experience, this housing outlasts aluminum by 150–200% in coastal and chemical environments.
- ONVIF Profile T + Smart Analytics: Metadata streaming enables VMS-side motion detection and object classification without edge processing overhead. Reduces false positives on windy perimeter routes; improves investigative speed on intrusion events.
- PoE Class 3 Power: Standard 802.3at PoE reduces installation complexity on hazardous-area sites where dedicated 24 Vac wiring requires certified cable trays and conduit. Single RJ45 run simplifies compliance documentation.
Deployment Considerations:
- ATEX Zone 1/21 certification is a legal requirement in EU, UK, and EMEA countries; in North America, UL Division 1 is the binding standard. Verify your facility's hazard classification before speccing—a Zone 2 facility doesn't need this premium, and installing overkill cameras wastes budget on compliance overhead.
- Motorized lens requires ONVIF-capable VMS or Pelco control software for remote zoom. If your integrator is installing this on a legacy DVR or closed-architecture platform, you lose the focal-length adjustment benefit and fall back to manual adjustment via site visit.
- IP68 submersion rating is real—but only at depths and durations specified in the datasheet. Verify your installation doesn't exceed rated depth on underwater sensor platforms or subsurface tank-inspection camera strings.
- Temperature operating range -40°C to +60°C is wide, but verify storage temperature limits separately. Batteries, lenses, and sensor performance degrade outside -40°C to +55°C storage per spec; plan outdoor equipment staging accordingly in Arctic deployments.
- 316L stainless is an excellent material, but it still requires rinsing with fresh water in salt-spray environments. Establish annual maintenance schedule; neglected salt buildup on optics reduces WDR effectiveness by 10–20 dB after 18 months.
The EXF2230-52-A0 is the right choice for regulated hazardous-area facilities (oil & gas, chemical, pharmaceutical, grain handling) where compliance documentation and operational uptime are non-negotiable. If your site is non-classified or operates under simpler IP66 marine standards, this premium is hard to justify—standard stainless outdoor cameras cost 30–40% less. For hazardous-area professionals, this camera's sealed motorized lens and proven stainless durability justify the investment. Explore the complete Pelco catalog for complementary hazardous-area accessories and control systems.
