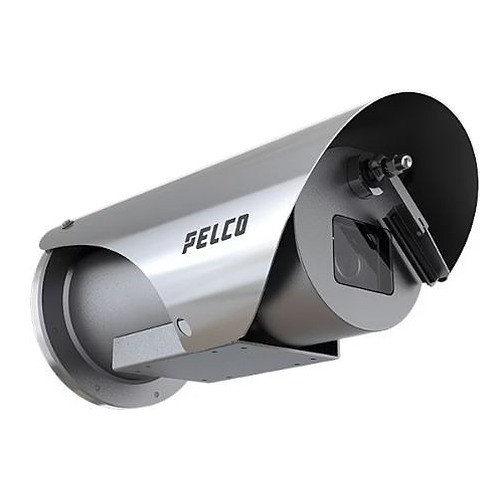

Pelco EXF22302A-A0 2MP Explosion-Proof Camera
The Pelco EXF22302A-A0 is a certified explosion-proof fixed camera engineered for hazardous-area surveillance in oil and gas, chemical processing, pharmaceutical manufacturing, and grain-handling facilities. Part of the ExSite Enhanced 2 series, this 2MP camera delivers ATEX Zone 1/21 and IECEx compliance paired with robust imaging performance, eliminating the operational and regulatory risk of non-certified monitoring in classified spaces. The combination of motorized optics, stainless-steel construction, and multi-standard video codec support makes it suitable for integrators deploying surveillance across mixed hazardous and non-hazardous zones within a single site.
Key Features
- 2MP Resolution & Frame Rate: 1920 × 1080 at 30 fps from a 1/2.8-inch CMOS sensor. Delivers forensic detail for personnel identification and incident review in low-light classified areas.
- Motorized Varifocal Lens: 4.4–9.3 mm with 32–109° HFOV. Remote focus and zoom adjustment eliminates return trips to hazardous zones for focal-length changes post-installation.
- 316L Stainless Steel Housing: IP66/IP67/IP68 rated. Withstands washdown, corrosive vapor exposure, and pressurized cleaning in process plants.
- Hazardous Area Certification: ATEX Zone 1/21, IECEx, UL, CSA, and EACEx approved. Mandatory for Class I Division 1 (gas) and Class II Division 1 (dust) installations; eliminates permit/variance delays.
- Temperature Class T5: Operating range -40°C to +60°C. Rated for cryogenic storage, thermal process monitoring, and extreme ambient conditions without derating.
- IK10 Impact Rating: Survives 5kg drop from 40cm. Critical in high-vibration environments (pump houses, compressor stations) and near moving machinery.
- 110 dB Wide Dynamic Range: Handles backlit and high-contrast scenes (bright windows, flame stacks, instrument displays) without loss of detail.
- Low-Light Performance: 0.1 lux color / 0.01 lux monochrome. Detects personnel and intrusion in dimly lit tank farms and indoor processing areas without IR supplementation.
Video compression options span H.265 (40–60% bitrate reduction vs. H.264), H.264, and Motion JPEG, ensuring compatibility with legacy ONVIF-compliant VMS platforms while minimizing bandwidth on bandwidth-constrained networks serving remote hazardous-area facilities. Full ONVIF Profile compliance (S, T, G, M) enables drag-and-drop integration into Genetec Omnicast, Milestone Husky, Avigilon Control Center, and other major enterprise platforms without firmware workarounds or gateway middleware.
Smart Analytics capability on-board the camera filters noise-prone alerts (wind, vegetation, weather transitions) at the edge, reducing false-positive storm to NVR and security operations center staffing. In facilities with 24/7 monitoring mandates, this translates directly to reduced alert fatigue and faster true-event response.
Power delivery via PoE Class 3 simplifies field deployment in hazardous zones — no field-mounted 24 Vac transformers or conduit runs required. Integrators can extend PoE runs 300+ feet using standard CAT6A cabling and a compliant injector, reducing installation labor in sprawling refinery or offshore platform layouts.
Pelco backs the EXF22302A-A0 with a 5-year manufacturer warranty covering parts and labor, standard across the ExSite Enhanced 2 lineup. NDAA Section 889 compliance and absence of critical dependencies on non-US component sourcing make this camera acceptable for Department of Defense, Transportation Security Administration (TSA), and regulated utility surveillance programs.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've installed the EXF22302A-A0 across refinery perimeters, chemical-plant tank-farm approaches, and pharmaceutical clean-room antechambers. The ATEX/IECEx dual certification is table stakes in these environments — without it, you cannot legally deploy a camera in the hazardous zone, full stop. What differentiates this unit is the balance: the motorized 4.4–9.3 mm lens and 110 dB WDR handle the optical demands of industrial surveillance (glare off stainless piping, flame monitoring, low-ambient detection) without requiring field technicians to descend into confined spaces during commissioning. The 316L housing is not cosmetic — we've seen standard stainless cameras corrode in hydrogen-sulfide atmospheres; 316L extends service life 5+ years in those conditions. PoE power is genuinely convenient on hazardous-area installs, where 24 Vac conduit can double labor cost. The trade-off: ATEX certification limits future component swaps. You cannot retrofit a non-certified lens or modify the enclosure without triggering re-certification. Plan once, deploy once. On edge analytics, the Smart Analytics implementation is practical — it suppresses weather-driven false positives (dust storms, rain), not aggressive enough to mask genuine intrusions. Pair it with a recording policy that flags detection class (human, vehicle), and your NVR storage scales linearly with occupancy, not scene noise.
Technical Highlights:
- ATEX Zone 1/21 & IECEx Certification: Permits legal operation in gas (Zone 1) and dust (Zone 21) classified areas without variance. Eliminates permitting delay and liability exposure. Regulatory agencies recognize these bodies; CSA and EACEx dual approval covers North American and EU/international deployments.
- Motorized Varifocal with 32–109° Coverage: Remote focus adjustment via ONVIF PTZ control eliminates return trips into hazardous zones. 4.4 mm wide (109°) captures broad tank-farm views; 9.3 mm tele (32°) resolves personnel ID at perimeter fence lines. Single lens covers both use cases.
- 110 dB WDR & 0.01 Lux Monochrome: Handles simultaneous bright (sunlit tank surfaces, process flame) and dark (indoor processing, dusk perimeter) regions. 0.01 lux mono mode (IR-augmented monochrome) detects movement in near-total darkness without external lighting infrastructure — critical for remote pump stations and nighttime intrusion detection.
- H.265 Multi-Codec Support: H.265 reduces storage footprint 40–60% vs. H.264 at equivalent quality. Motion JPEG fallback ensures playback compatibility on air-gapped (non-networked) analysis workstations common in pharmaceutical and petrochemical quality labs.
- PoE Class 3 Power Integration: Sub-13W draw eliminates field-mounted 24 Vac conduit and transformer cost. Long PoE runs (300+ feet) feasible with CAT6A; standard on modern switch infrastructure (Cisco, HPE, Arista).
- 5-Year Manufacturer Warranty & NDAA Compliance: Parts and labor coverage standard. No supply-chain risk for federally regulated sectors (DoD, TSA, utilities). Sourcing audits pass without exception.
Deployment Considerations:
- ATEX Certification Lock-In: The enclosure and optical path are certified as a unit. Lens swaps, firmware modifications, or physical alterations require re-certification through Notified Body. Design your optical layout at RFQ stage, not in the field. Test focal lengths on a non-classified mock-up first.
- Environmental Vibration & Thermal Cycling: Pump houses and compressor stations create sustained vibration (5–15 Hz); the IK10 rating handles mechanical shock, but verify mounting isolation (rubber grommets) to avoid resonance degradation. Temperature Class T5 (-40 to +60°C) is adequate for outdoor North American deployments and indoor process areas; confirm actual site extremes (heated manifolds, cryogenic vapor ingress) before final placement.
- Smart Analytics Tuning: Edge detection works best with stable backgrounds (fixed cameras in classified zones, not PTZ). On dynamic outdoor scenes (flare stacks, steam plumes), disable temporal noise filtering and rely on NVR-side VMS analytics or post-event manual review to avoid detection suppression.
- Stainless Steel Maintenance in Corrosive Atmospheres: 316L resists hydrogen sulfide and chloride spray better than 304, but quarterly washdown (deionized water, lint-free cloth) prolongs optical clarity. Inspect cable glands and M20 connector seals annually for salt creep or condensation ingress.
- PoE Switch Compliance: Verify your upstream PoE injector or switch supports IEEE 802.3at (PoE+) delivery or guarantees 13+ watts sustained. Budget-tier managed switches sometimes under-deliver; test draw during commissioning with an inline power meter.
The EXF22302A-A0 is the right choice for integrators managing multi-zone petrochemical, pharmaceutical, or utilities installations where hazardous-area compliance is mandatory, total cost of ownership matters (motorized lens reduces re-entry labor, H.265 cuts storage), and long-term regulatory stability is valued. If you're specifying hazardous-area surveillance, start here. Explore Pelco catalog for complementary non-classified perimeter and access-control cameras to complete your site.
