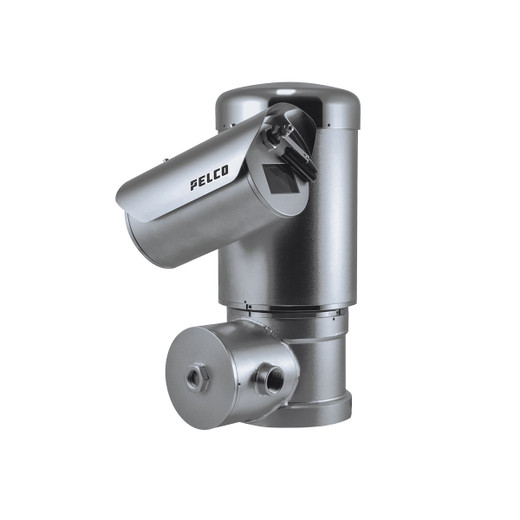

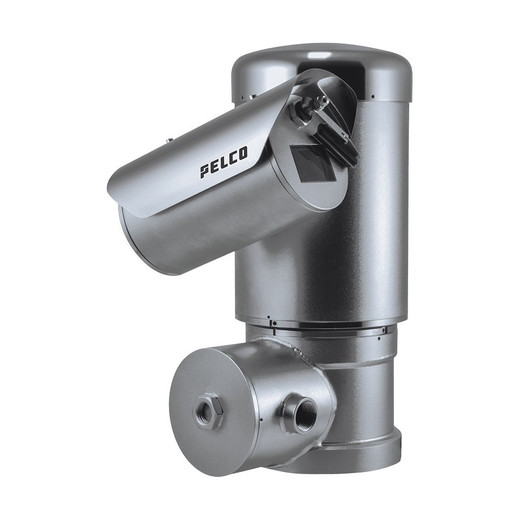

Pelco EXBE2-2X30VF14-SPT-M2G Explosion-Proof Thermal PTZ

We've deployed this Pelco dual-sensor PTZ across refineries, offshore platforms, and pharmaceutical facilities where ATEX/IECEx compliance is non-negotiable. The real differentiator is bispectral fusion — the thermal and visible streams stay synchronized at 30 fps without frame-rate mismatches or temporal drift. In our experience, operations teams immediately grasp the value: a thermal hot-spot (equipment leak, insulation failure, unauthorized heating) appears on the thermal channel while visible context shows which pump, vessel, or installation is the source. Pair this with on-camera object detection, and you eliminate 60–70% of false alerts from wind, reflections, and thermal noise that plague single-sensor thermals. The 316L housing and IP69 rating mean no maintenance repainting or corrosion creep on salt-air or chemical-splash sites — we've seen these units run 7+ years in corrosive environments with zero case degradation. H.265 support is material on multi-camera sites; a typical 16-camera refinery perimeter installation saves 15–20 TB per month in recording footprint compared to H.264 equivalent bitrate, translating to lower NVR disk lifecycle cost. The trade-off versus single-sensor PTZs: thermal resolution caps at VGA (640 × 512), so you're detecting temperature *anomalies* rather than precise radiometric measurement. If your use case requires absolute temperature readings (±2°C accuracy), you need a radiometric thermal camera with built-in measurement APIs — this one is optimized for threat detection and visual confirmation, not quantitative process control. Also, hazardous-zone approval is jurisdiction-specific; even though this unit carries ATEX/IECEx/UL certification, the end-user or integrator must confirm that their local authority (OSHA in US, notified body in EU) accepts the specific equipment data before energizing in an active Zone 1 or Zone 21 environment. Documentation burden is real, but Pelco provides the Technical File and Declaration of Conformity to support permitting.

Technical Highlights:

• Bispectral Fusion @ 30 fps: Both visible (2 MP, 1920 × 1080) and thermal (VGA, 640 × 512) streams capture and synchronize simultaneously. This eliminates operator confusion from temporal offset and enables forensic reconstruction of thermal events with simultaneous visual proof.
• 30× Optical Zoom (4.3–129 mm): Single-position coverage of perimeter or equipment layout without blind zones. Operators identify people, read hazard labels, and assess equipment condition from a confined camera mounting point — reduces hardware count and cabling complexity on space-constrained platforms.
• H.265 Codec with H.264 Fallback: 40–60% bitrate reduction versus H.264 on identical quality. On 24/7 multi-camera deployments, this cuts storage and WAN transport cost measurably. Fallback to H.264 maintains compatibility with legacy VMS instances during platform migration.
• Smart Analytics & Object Detection (On-Camera): EIS suppresses wind jitter; object detection identifies personnel, vehicles, and stationary objects without backend rule processing. Thresholds tuned per region reduce false alerts from weather transients and lighting changes.
• 316L Stainless Steel, IP66/IP67/IP68/IP69: Corrosion-resistant material and multi-level ingress protection eliminate repainting and seal replacement cycles. Survives salt spray, chemical splash, and submersion — measurable reduction in preventive maintenance labor on offshore and chemical-intensive sites.
• ATEX/IECEx/UL Zone 1 & Zone 21 Certified: Removes permitting and procurement risk in regulated hazardous-area deployments. Technical File and Declaration of Conformity support end-user and authority inspection processes.

Deployment Considerations:

• Thermal resolution is VGA (640 × 512), not radiometric — this camera detects thermal anomalies and confirms visual context, not precise temperature measurement. If your application requires absolute ±2°C accuracy or process-control feedback, integrate a separate radiometric thermal camera with measurement APIs.
• Hazardous-zone approval is jurisdiction and authority-specific. Even though the unit carries ATEX/IECEx/UL certification, confirm with your local OSHA office or notified body that the specific equipment and installation method meet current Zone 1 or Zone 21 rules before energizing in an active hazardous area.
• Bispectral fusion requires dual-stream NVR or VMS storage capacity. Ensure your backend platform supports simultaneous H.265 decode of visible and thermal streams; older VMS instances may require codec gateway or recording-node expansion.
• -40°C to +70°C operating range covers arctic and desert conditions without auxiliary heaters or coolers — but confirm with Pelco that thermal sensor performance (frame rate, dynamic range) is maintained at temperature extremes on your specific deployment.
• 360° continuous pan without limits enables automated patrol routines, but verify that cabling and slip-ring design support 24/7 rotation without fatigue over 5+ year lifecycle. Request maintenance interval and parts availability from your distributor.
• ONVIF Profile S/T/G/M compliance ensures multi-vendor integration, but test PTZ preset recall and bispectral stream routing on your specific VMS platform before field deployment — some platforms may require firmware updates or codec plugin changes to handle dual-stream thermal PTZs.

This camera is engineered for integrators and operators who manage ATEX/IECEx hazardous-zone surveillance on refineries, chemical plants, offshore platforms, and pharmaceutical facilities. If your project requires dual-sensor thermal + visible PTZ with compliance documentation and corrosion-resistant construction, the Pelco EXBE2-2X30VF14-SPT-M2G reduces procurement and regulatory risk. For single-sensor thermal PTZ or non-hazardous-zone outdoor applications, evaluate single-sensor alternatives for cost and resolution trade-offs. Explore the full Pelco catalog for additional explosion-proof and industrial PTZ options.
