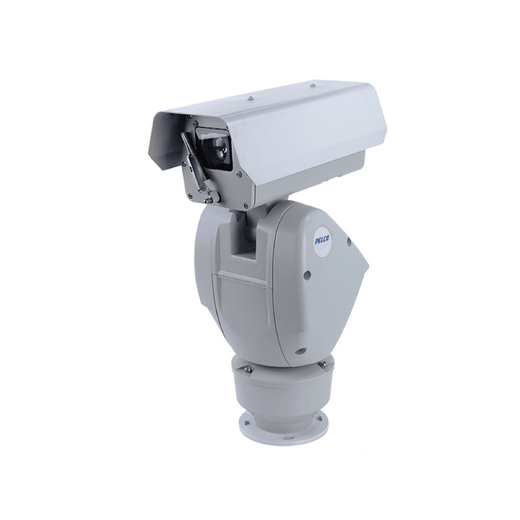

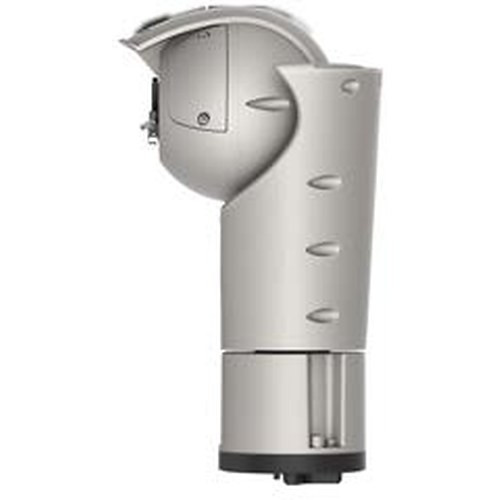

Pelco ESCE1-8X36-RLU 8MP Ruggedized PTZ Camera

Pelco ESCE1-8X36-RLU 8MP Ruggedized PTZ Camera

The Pelco ESCE1-8X36-RLU is a professional-grade 8MP ruggedized PTZ camera engineered for demanding outdoor security applications. Built to MIL-STD-810G environmental standards, this Esprit Compact Enhanced 1 series camera delivers exceptional optical performance with 36× zoom and advanced stabilization for mission-critical surveillance in extreme conditions.

Key Features

• 8MP 1/2.8-inch CMOS sensor with 3840×2160 resolution for detailed identification
• 36× optical zoom with 4.3–120 mm focal length and gyro stabilization
• 360° continuous pan with −90° to +1° tilt and 256 preset positions
• MIL-STD-810G certification for extreme environmental durability
• IP66/IP67 ingress protection rated for harsh outdoor deployment
• Operating temperature range: −40°C to +60°C
• H.265/H.264/Motion JPEG video compression
• 130 dB wide dynamic range for high-contrast scenes
• Auto-tracker, EIS, object detection, and direction violation analytics
• ONVIF Profile S, T, G, and M compliant
• PoE++ Class 8 powered; 24VAC/24VDC support
• 5-year manufacturer warranty

Technical Highlights

Low-light performance reaches 0.1 lux in color and 0.01 lux in monochrome, enabling effective surveillance across day and night cycles. The 8MP sensor resolves facial features and license plate characters at extended range—critical for border security and infrastructure perimeters where 2MP and 4MP alternatives fail to capture actionable detail.

Gyro stabilization compensates for platform vibration and wind sway, ensuring stable video during pan/tilt operations. Integrated analytics—auto-tracker, EIS, object detection, and direction violation—reduce bandwidth demand and enable intelligent alerting without external processing.

The camera supports IPv4/IPv6, HTTP/HTTPS, RTSP/RTP, DNS, and NTP protocols over 100BASE-TX Ethernet. H.265 compression reduces storage and bandwidth costs while maintaining 8MP fidelity across 60 fps operation.

Applications

• Military installations and defense perimeters
• Border security and critical infrastructure monitoring
• Port and airport surveillance
• Oil and gas facility oversight
• Power generation and distribution networks
• Remote coastal and harsh-climate deployments

Environmental Durability

MIL-STD-810G certification ensures reliable operation in salt spray, extreme temperature, humidity, sand/dust, and vibration environments. IP67 rating provides complete dust ingress protection and submersion resistance. This camera is purpose-built for installations where commercial-grade equipment fails.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ESCE1-8X36-RLU represents Pelco's flagship ruggedized PTZ for organizations requiring simultaneous 8MP resolution, extended zoom, and certified environmental hardness. The 36× lens delivers 15× greater magnification than standard 2.4× zoom fixed cameras, enabling identification-class detail at 300+ meters under optimal conditions. Gyro stabilization and EIS mitigate platform motion—essential for pan/tilt mounts on moving vessels or high-wind structures.

Organizations comparing this model should weigh 8MP bandwidth/storage overhead against identification requirements. The ESCE1-4X36-RLU (4MP, same zoom) reduces data footprint by 75% but sacrifices facial/character resolution. The ESCE1-2X40-RLU (2MP, 40× zoom) extends reach slightly but halves pixel density further.

Verify 24VAC or 24VDC availability at deployment sites; PoE++ Class 8 (95.4W) is supported but requires enterprise-class infrastructure. ONVIF compliance ensures VMS interoperability. IP67 rating permits temporary submersion—critical for tidal or flood-prone perimeters.
