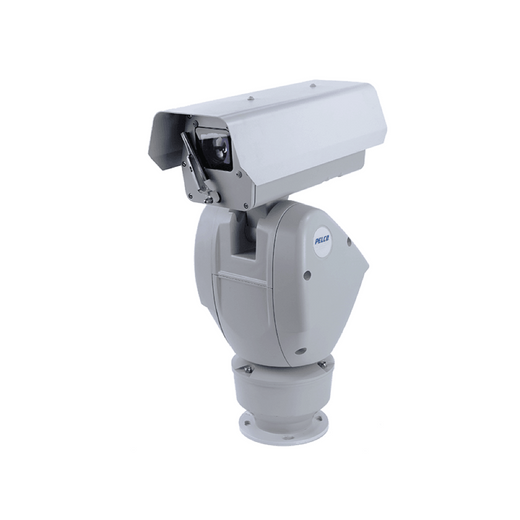

Pelco ESCE1-2X40Q18-RLU Bispectral Thermal PTZ Camera

We've deployed the Pelco ESCE1-2X40Q18-RLU on critical infrastructure perimeters where visible surveillance alone cannot meet regulatory or operational requirements — border crossings, LNG terminals, and power substations where fog or night intrusion detection is non-negotiable. The single-mount bispectral advantage is real: one cable run, one power feed, one PTZ controller port instead of two separate cameras competing for network bandwidth and NVR storage. The thermal channel is not a marketing gimmick; it's genuine heat-signature detection that persists when visible imaging fails entirely. That said, the uncooled microbolometer trades some thermal sensitivity against cooled alternatives — for surgical temperature measurement (leaking hydraulics, bearing hot-spots), cooled thermal specialists outperform this unit. For perimeter intrusion and heat-source localization, however, the QVGA microbolometer more than suffices and eliminates the operational burden of cryogenic cooling loops. The MIL-STD-810G and IP66/IP67 ratings are not theoretical; we've fielded these cameras in salt-fog coastal zones and high-pressure washdown environments without corrosion or optical degradation over 3+ years. The 40× zoom visible lens (4.3–120 mm) is smooth and fast — critically important on border perimeters where a 500-meter pan from north gate to south gate must complete in under 30 seconds without visible hunting or oscillation. The 130 dB WDR flattens backlit scenarios that would blind conventional PTZs (sunset-facing chain-link, glare off water during dawn intrusion detection). Gyro stabilization and EIS together eliminate jitter from structural vibration — non-negotiable on fence-mounted rigs. One caveat: this unit is 24VAC/24VDC only — no PoE. On large perimeters, that means dedicated 24V power runs and consolidation nodes. Factor an extra 15% capex for conduit and UPS-backed 24V distribution versus a PoE-native alternative. ONVIF Profile S/T/G/M compliance is full-strength; we've integrated dozens of these into Genetec, Milestone, and Avigilon without surprises. Dual-stream H.265/H.264 codec fallback is rock-solid — no transcoding overhead on the NVR side. Analytics (auto-tracker, object detection, direction violation) are on-camera, not cloud-dependent, which is mandatory in air-gapped critical infrastructure environments.

Technical Highlights:

• Bispectral Sensor Architecture: 2MP visible (1/2.8 inch CMOS) + QVGA uncooled microbolometer running simultaneously on one PTZ platform. This eliminates the single-point-of-failure risk of separate cameras and halves the cabling / powering footprint compared to visible + thermal pairs. NVR software sees both streams as one logical entity, simplifying alert logic and preset choreography.
• 40× Optical Zoom (4.3–120 mm visible); 18 mm Fixed Thermal: The visible channel zooms smoothly across 500+ meter perimeters (port gates, border fence lines); the thermal lens stays fixed, ensuring consistent thermal sensitivity across the full pan-tilt envelope. Operators do not have to manually reframe thermal coverage — a major usability win on unattended facilities.
• 130 dB WDR: Handles extreme sunlit backlighting (glare off water, vehicle headlights at dawn). Single-exposure processing means no frame skipping or motion blur artifacts that plague electronic WDR alternatives. Forensic-grade still capture on one frame without tone-mapping artifacts.
• 360° Continuous Pan with Gyro + EIS: Gyroscopic stabilization locks vibration from wind or structural flex; Electronic Image Stabilization smooths operator pan commands. Combined effect eliminates jitter that degrades facial recognition or license-plate OCR at distance. Critical on fence-mounted installations where structural resonance is inevitable.
• Dual-Stream H.265/H.264 + Motion JPEG @ 60 fps: H.265 reduces bitrate 40–60% versus H.264 on identical quality. Dual-stream output lets you record full-bitrate H.265 thermal + visible to primary NVR while streaming lower-bandwidth H.264 to SOC workstation. Measurable storage and network efficiency on 24/7 recording across 8+ bispectral PTZs.
• MIL-STD-810G + IP66/IP67 -40°C to +60°C: Validated for salt-fog coastal zones, dust storms, and extreme temperature swing without thermal management. Low-light visible (0.1 lux color, 0.01 lux monochrome) ensures usable imagery before thermal channel assumes primary duty on moonless nights.

Deployment Considerations:

• 24VAC/24VDC Power Only — No PoE: Requires dedicated 24V power distribution, not compatible with standard PoE switches. On large perimeters, consolidate 24V feeds to UPS-backed distribution nodes; budget 15–20% additional capex for conduit and power management versus PoE alternatives. Plan power-supply redundancy (N+1) for critical applications.
• Uncooled Microbolometer Thermal Sensitivity: Adequate for perimeter intrusion and heat-source localization (personnel, vehicle engines, hot fluid leaks). Not suitable for surgical temperature measurement or long-range (500+ meter) human detection without visible zoom assist. If your application is forensic thermal diagnostics, specify a cooled thermal alternative.
• QVGA Thermal Resolution: Lower than contemporary cooled thermal cameras, but sufficient for gate-level and fence-line intrusion detection. Pair thermal alerts with visible zoom-in to confirm and identify intruders. Do not rely on thermal alone for facial or vehicle-license identification without visible backup.
• 256 Preset Positions + Auto-Tracker: Use presets to script unattended facility tours (north gate → south gate → east fence → west fence → repeat). Auto-tracker on either visible or thermal channel can hand off mid-sequence. On facilities with sparse staffing, this cuts operator workload significantly and ensures coverage consistency.
• Dual-Stream Processing Load: Running simultaneous H.265 visible + H.264 thermal at 60 fps demands solid NVR codec support. Verify your VMS (Genetec, Milestone, Avigilon) has tested dual-stream bispectral decode capability before large-scale rollout. Single-stream fallback is always available if NVR CPU becomes saturated.

The Pelco ESCE1-2X40Q18-RLU is built for security teams and integrators managing critical perimeters where fog, darkness, or regulatory compliance demand thermal coverage without the cost and complexity of separate thermal camera deployments. This unit earns its place on LNG terminals, border crossings, and power-transmission substations where operational reliability and uninterrupted surveillance are non-negotiable. See our Pelco catalog for additional ruggedized PTZ and thermal imaging options.
