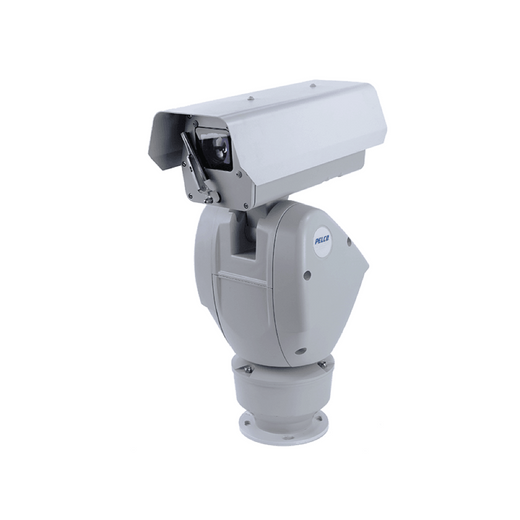

Pelco ESCE1-2X40V24-RLU 2MP 40x Bispectral PTZ Camera
The Pelco ESCE1-2X40V24-RLU is a ruggedized bispectral PTZ camera built for critical infrastructure and perimeter security where simultaneous visible and thermal imaging is mandatory. This unit combines a 2MP visible sensor with 40x optical zoom (4.3–120mm focal length) and a dedicated VNIR thermal channel with a 24mm lens. The 24mm thermal lens extends detection range significantly compared to shorter focal lengths, enabling long-distance target identification without requiring a telephoto approach—critical for border security and airport perimeter monitoring where stand-off distance is a primary requirement.
Purpose-engineered to PTZ camera standards and certified to MIL-STD-810G, this model tolerates shock, vibration, humidity, and extreme temperature swings (–40°C to +60°C operating range). The IP66/IP67 ingress protection means direct rain and dust pose no threat to optics or electronics. Gyro stabilization compensates for vibration during rapid pan-tilt maneuvers, maintaining sharp imagery even during aggressive tracking sequences. The 360° continuous pan eliminates the blind spots inherent in bounded rotational designs.
Key Features
- 2MP 1/2.8" CMOS visible sensor with 40x optical zoom: 4.3–120mm focal length delivers both wide coverage and extreme reach without digital interpolation; optical zoom preserves resolution across the range.
- Bispectral imaging (visible + VNIR thermal): Run both channels simultaneously for day/night operations and multi-modal threat detection; switch automatically or manually per scene.
- 24mm thermal lens: Longer focal length than 9mm variants extends thermal detection and identification range—a real advantage when subjects are at distance and legal restrictions prohibit closer approach.
- 60 fps visible / 30 Hz thermal frame rates: Visible channel sustains smooth real-time tracking; thermal operates at 30 Hz (not 60) to preserve thermal sensitivity and comply with U.S. domestic export regulations—international deployments require the ESCE1-2X40V24-RLU-1 variant operating at 9 Hz.
- 0.1 lux color / 0.01 lux monochrome (visible channel): Extreme low-light performance means minimal supplemental illumination required, reducing IR footprint and detection risk in sensitive environments.
- 130 dB wide dynamic range: High-contrast scenes (shadow-to-sunlit transitions, reflective surfaces) render without clipping, critical for airport runways and perimeter roads with mixed lighting.
- H.265 + H.264 + Motion JPEG compression: H.265 cuts storage footprint roughly in half compared to H.264 for the same quality—meaningful when recording 24/7 dual-channel video across a multi-camera deployment.
- 360° continuous pan, ±90° to +1° tilt, 256 preset positions: Zero blind spots; continuous rotation eliminates mechanical limits; 256 presets allow fast recall of monitored zones without manual repositioning.
- Gyro stabilization: On-board gyro dampens vibration-induced jitter during high-speed tracking, keeping video usable for identification and forensic review.
- ONVIF Profile S, T, G, M: Broad multi-profile compliance ensures integration with VMS platforms supporting standards-based PTZ control and analytics.
- Built-in analytics: Auto-tracker, EIS (electronic image stabilization), object detection, and direction violation detection reduce on-server processing load and speed alert response.
- 100BASE-TX network interface, 24VAC/24VDC power: Gigabit not required for this codec profile; standard AC/DC dual-voltage design matches most site infrastructure without custom power supplies.
- NDAA Section 889 compliant, 5-year manufacturer warranty: Meets U.S. government procurement rules; warranty covers defects under normal field deployment.
Deployment Context
The ESCE1-2X40V24-RLU excels at fixed-post perimeter and critical infrastructure sites where bispectral surveillance is regulatory or operational requirement: domestic military installations, border checkpoints, power generation facilities, nuclear sites, and airport secure zones. The 30 Hz thermal frame rate is restricted to U.S. domestic operations; international deployments require the lower-frame 9 Hz variant. Pair this unit with a network video recorder capable of dual-stream decoding (H.265 and thermal channel) to realize full forensic and real-time benefits. For facilities lacking thermal expertise, engage integrators familiar with thermal lens calibration and emissivity-based target discrimination—thermal imagery is powerful but requires trained interpretation to avoid false positives in high-wind or rain conditions.
When to Choose a Different Model
If thermal imaging is not a hard requirement, consider a higher-resolution visible-only PTZ model in the Pelco Esprit Compact Enhanced family for lower cost and simpler codec management. If you need IP67 full submersion (not just rain/dust) or operating temperatures below –40°C, verify thermal specifications with the manufacturer before deployment. If your VMS does not support ONVIF PTZ or multi-profile decoding, test interoperability early in procurement to avoid integration delays.
Frequently Asked Questions
Q: Is the ESCE1-2X40V24-RLU NDAA Section 889 compliant?
A: Yes. The ESCE1-2X40V24-RLU is explicitly NDAA Section 889 compliant, making it eligible for U.S. federal and DoD procurement.
Q: What is the maximum thermal detection range?
A: The 24mm thermal lens variant provides extended detection range compared to 9mm options, though specific detection distance depends on target size, emissivity, and ambient temperature differential. Consult thermal range charts in the manufacturer datasheet for your exact use case.
Q: Can I deploy the ESCE1-2X40V24-RLU outside the United States?
A: The 30 Hz thermal frame rate on this model is restricted to U.S. domestic deployment. International operations require the ESCE1-2X40V24-RLU-1 variant, which operates thermal at 9 Hz to comply with export control regulations.
Q: Does the ESCE1-2X40V24-RLU support ONVIF?
A: Yes. The camera supports ONVIF Profiles S, T, G, and M, enabling integration with standards-based VMS platforms and third-party PTZ control systems.
Q: What is the warranty period?
A: Pelco provides a 5-year manufacturer warranty on the ESCE1-2X40V24-RLU, covering defects in materials and workmanship under normal field deployment.
Q: Is gyro stabilization effective during high-speed panning?
A: Yes. The built-in gyro compensates for vibration during rapid pan-tilt maneuvers, maintaining image clarity for tracking and forensic review. Performance depends on wind, structural vibration, and pan-tilt speed—test on-site under actual conditions.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The ESCE1-2X40V24-RLU is built for one specific job: simultaneous visible and thermal surveillance at stand-off distance on domestic critical infrastructure. The 24mm thermal lens paired with 40x optical zoom on the visible channel is the real differentiator here—you're not compromising between reach and thermal sensitivity. That 30 Hz thermal frame rate feels low until you realize it's legally capped for export control reasons; within the continental U.S., it's perfectly adequate for tracking and identification workflows. The gyro stabilization and 360° continuous pan eliminate the mechanical and vibration artifacts that plague older PTZ designs on windy sites.
Technical Highlights:
- 24mm thermal lens + 40x visible zoom: Delivers long-distance target identification without forcing a choice between thermal sensitivity and optical magnification. The extended focal length is non-negotiable if your deployment spans 500+ meters of perimeter.
- 30 Hz thermal + 60 fps visible simultaneous: Thermal frame rate is thermodynamically capped—pushing faster degrades sensor sensitivity. 30 Hz is sufficient for tracking; 60 fps on the visible channel keeps PTZ servo response crisp during operator control.
- 130 dB WDR on visible channel: High-contrast perimeter scenes (reflective fencing, sun-shadow transitions on tarmac, building glass) stay legible without overexposure or crush. This matters forensically when identification is required.
- H.265 codec support: Cuts ingest bandwidth and NVR storage by 40–60% versus H.264. On a 24/7 dual-channel recorder, that translates to measurable cost savings over the camera's 5-year lifecycle.
- ONVIF Profiles S, T, G, M: Broad compliance means you're not locked into a proprietary VMS. Multi-profile support ensures third-party PTZ drivers and analytics engines will negotiate control and frame delivery correctly.
Deployment Considerations:
- The 30 Hz thermal-only restriction to U.S. domestic sites is a hard regulatory line—confirm your deployment geography before purchase. International sites require the 9 Hz variant and a different part number.
- Thermal lenses require periodic lens-cover maintenance and emissivity correction in your NVR or VMS. If your team lacks thermal expertise, budget for integrator training or on-site commissioning support.
- IP66/IP67 protects against rain and dust, but verify that your mounting hardware and connector sealing meet the same standard—a water-tight camera on a corroded mount is worthless.
- The 100BASE-TX network interface is sufficient for H.265 streams; gigabit is not required, but if your site has gigabit run to the mount point, no harm in using it.
Deploy the ESCE1-2X40V24-RLU at domestic perimeter security, border checkpoint, and critical infrastructure sites where regulatory or operational mandate requires both visible and thermal fidelity, stand-off identification range is non-negotiable, and continuous pan coverage eliminates blind spots. This is a purpose-built tool for specialist customers—not a general-use PTZ camera.
