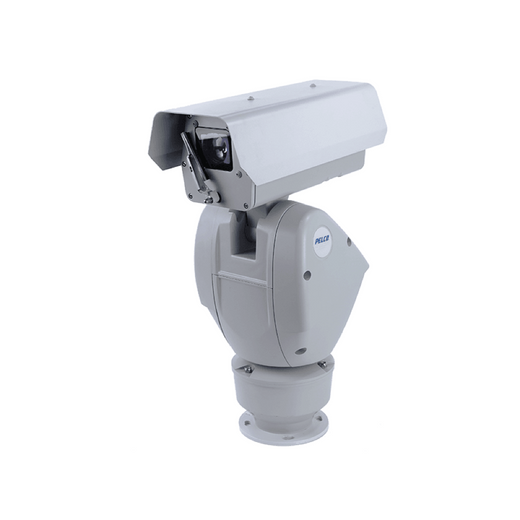

Pelco ESCE1-4X36-RLU Esprit Compact 4MP 36x PTZ

Pelco ESCE1-4X36-RLU Esprit Compact 4MP 36x PTZ Camera

The Pelco ESCE1-4X36-RLU is a ruggedized 4MP pan-tilt-zoom camera engineered for demanding outdoor surveillance in extreme environments. Built to MIL-STD-810G military standards, this camera delivers professional-grade imaging across temperature ranges from -40°C to +60°C, making it suitable for border security, critical infrastructure, military installations, and harsh-climate deployments.

Key Features

• 4MP resolution (2560×1440) with 1/2.8 inch CMOS sensor
• 36x optical zoom with 4.3–120 mm focal length
• 360° continuous pan; -90° to +1° tilt with 256 preset positions
• MIL-STD-810G environmental certification for shock, vibration, humidity, and UV exposure
• IP66/IP67 ingress protection for water and dust resistance
• Gyro stabilization for image steadiness during pan/tilt movement
• Ultra-low minimum illumination: 0.1 lux color, 0.01 lux monochrome
• 130 dB wide dynamic range for backlit and high-contrast scenes
• H.265, H.264, and Motion JPEG video compression options
• Pelco Smart Analytics: auto-tracker, EIS, object detection, direction violation
• ONVIF Profile S, T, G, and M compliance for vendor-neutral integration
• 5-year warranty

Technical Specifications

• Resolution: 4MP at 60 fps maximum frame rate
• Image Sensor: 1/2.8 inch CMOS
• Optical Zoom: 36x (4.3–120 mm approx.)
• Pan/Tilt Range: 360° continuous pan; -90° to +1° tilt
• Preset Positions: 256
• Minimum Illumination: 0.1 lux color; 0.01 lux monochrome
• Day/Night: Automatic with color and monochrome modes
• WDR: 130 dB
• Video Compression: H.265; H.264; Motion JPEG
• Network Interface: 100BASE-TX Ethernet
• Supported Protocols: IPv4, IPv6, HTTP, HTTPS, RTSP, RTP, DNS, NTP
• Power: 24VAC or 24VDC
• Operating Temperature: -40°C to +60°C
• Ingress Protection: IP66; IP67
• Environmental Standard: MIL-STD-810G

Applications

This ruggedized PTZ camera is ideal for military perimeter monitoring, border security checkpoints, critical infrastructure protection (power plants, water treatment facilities), coastal and offshore installations, desert and arctic deployments, and any facility requiring proven durability under extreme environmental stress. The 4MP resolution provides superior target identification compared to lower-resolution alternatives, while the 36x optical zoom enables detailed surveillance across extended perimeters without reliance on digital zoom degradation.
