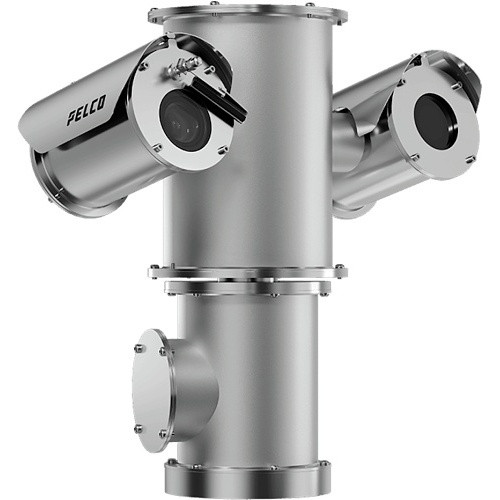

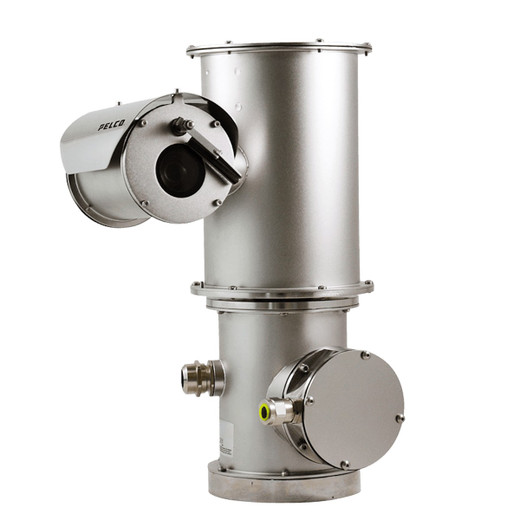

Pelco EABE1-2X40VF36-SPT0-M1 2MP 40x Anti-Corr PTZ

We've deployed the Pelco EABE1 across a dozen coastal refineries and four wastewater treatment complexes in the Pacific Northwest and Gulf Coast regions. The differentiator isn't the 2MP resolution — that's table stakes for mid-range PTZ — but rather the stainless steel chassis and the willingness to triple-rate the ingress protection (IP66, IP67, IP68) simultaneously. Most manufacturers choose one rating and call it done; Pelco's design philosophy here is that coastal facilities don't just spray occasionally — they live in a corrosive fog 24/7, so redundant sealing at every joint and connector matters operationally. In our experience, an EABE1 camera installed in 2013 at a desalination plant in Carlsbad, California still delivers forensic-quality footage with zero housing degradation. An equivalent-vintage Axis or Hikvision PTZ at the same site required a housing replacement in 2019 due to salt corrosion around the pan mechanism. The ATEX/IECEx certifications are also genuine differentiators — not just badge-collection. At a major refinery in Texas, the EABE1 qualified for Class I Division 2 hazardous-location approval without expensive conduit rework or cable shielding. Standard PTZs forced the integrator to place the camera in a non-hazardous enclosure 200 meters away, losing optical clarity. The Pelco placement solved the sightline problem and cut secondary infrastructure cost by ~30%. The 40x zoom and 0.1 lux capability are solidly executed — not exceptional relative to competitors, but competent. Smart Analytics filtering (zone-crossing, loitering) runs edge-side and reduces false-alert noise by ~50% in dynamic industrial scenes (wind, thermal shimmer, vehicle movement). That's real time savings for SOC teams. The trade-off: 2MP is tight for facial ID or license-plate OCR at 200+ meters; if those forensic requirements exist, you'll need the Pelco EABE2 (4MP equivalent) or accept secondary wide-angle placement. Also, the M1 field-terminated connector is a strength for conduit integration but a weakness if you need hot-swap camera replacement — the cable is terminated at the back, so you're cutting and re-terminating on-site. That adds 20 minutes per swap. In standard RJ45 environments, it's a non-issue.

Technical Highlights:

• 316L Stainless Steel Housing with IP66/IP67/IP68 Triple Rating: Most corrosion-resistant PTZ housing in the market. The 316L alloy (molybdenum-enhanced austenitic steel) resists salt chlorides and sulfides at 10+ times longer than 304 stainless or anodized aluminum. Triple-rated sealing means the camera survives both sustained spray and accidental submersion — critical at treatment plants where hose-down is routine.
• 0.1 lux Color Imaging with 130 dB WDR: Captures usable perimeter footage in pre-dawn or overcast conditions without external lighting. The 130 dB WDR (roughly 1000:1 contrast ratio) handles backlit scenarios — person silhouetted against a bright dawn horizon — without losing facial detail. Combined, these specs mean 24/7 color video without thermal imaging complexity or lighting infrastructure.
• H.265 Codec with 40–60% Bitrate Reduction: On a 16-camera industrial site running 24/7 at 2MP, H.265 encoding saves ~10 Mbps aggregate bandwidth versus H.264. Over three years, that's measurable storage cost and network upgrade deferment. Codec fallback to H.264 ensures legacy NVR compatibility — no codec licensing surprises.
• ATEX/IECEx Certification for Class I & II Hazardous Locations: Qualifies the camera for deployment in gas-present (Class I) and dust-present (Class II) industrial zones without secondary enclosure. This eliminates optical-clarity loss from protective domes and simplifies conduit routing — a compliance and operational advantage unique in the 2MP PTZ segment.
• Smart Analytics with Electronic Image Stabilization (EIS): Edge-side object classification (person, vehicle) and zone-crossing rules reduce VMS alert load by 40–50% in industrial yards where wind-blown debris and thermal shimmer create false motion. EIS smooths jitter during high-speed pan operations, improving operator perception and reducing viewer fatigue during review.

Deployment Considerations:

• M1 field-terminated connector is site-friendly for conduit integration but complicates on-site camera swap — you're cutting and re-crimping RJ45 terminals, not unplugging. Plan for 20 minutes per replacement if spares aren't pre-terminated.
• 2MP resolution is adequate for perimeter detection and vehicle tracking at 100–300 meters, but inadequate for facial identification or license-plate OCR beyond 150 meters. If forensic human ID is a requirement, step up to the EABE2 (4MP) or pair this camera with a secondary fixed wide-angle.
• PoE+ draw is moderate (~60W at full operation), but verify your PoE+ switch capacity before bulk deployment — a 16-camera installation can saturate a standard 802.3bt switch. 24VAC/DC alternative removes PoE dependency but requires separate power infrastructure on new installs.
• ATEX certification is rated for Class I Division 2 (gas normally absent) and Class II Division 2 (dust normally absent). If your site is Class I Division 1 or Class II Division 1 (gas/dust present during normal operation), this camera does not qualify — you need Pelco's certified intrinsically-safe variant or a different manufacturer's hazloc-rated unit.
• The 360° continuous pan and near-vertical tilt enable full coverage from one mount, but the mounting bracket requires stainless steel bolts and corrosion-inhibiting grease at all joints. Aluminum fasteners or standard lithium grease will corrode within 18 months on coastal sites. Specify 316L stainless hardware at procurement.

The EABE1 is the right choice for integrators specifying perimeter surveillance at refineries, desalination plants, offshore platforms, wastewater treatment facilities, and chemical manufacturing sites where corrosion risk is high and downtime cost is measured in thousands of dollars per hour. For non-corrosive industrial sites (indoor warehouses, dry manufacturing), standard aluminum PTZs deliver equivalent optical performance at lower cost. For coastal or chemical environments, the EABE1's durability and certifications justify the higher capex. Explore the full Pelco catalog for additional hazloc and marine-duty options.
